Splash On Tap Installation Manual

40 gallon water driven proportioner
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

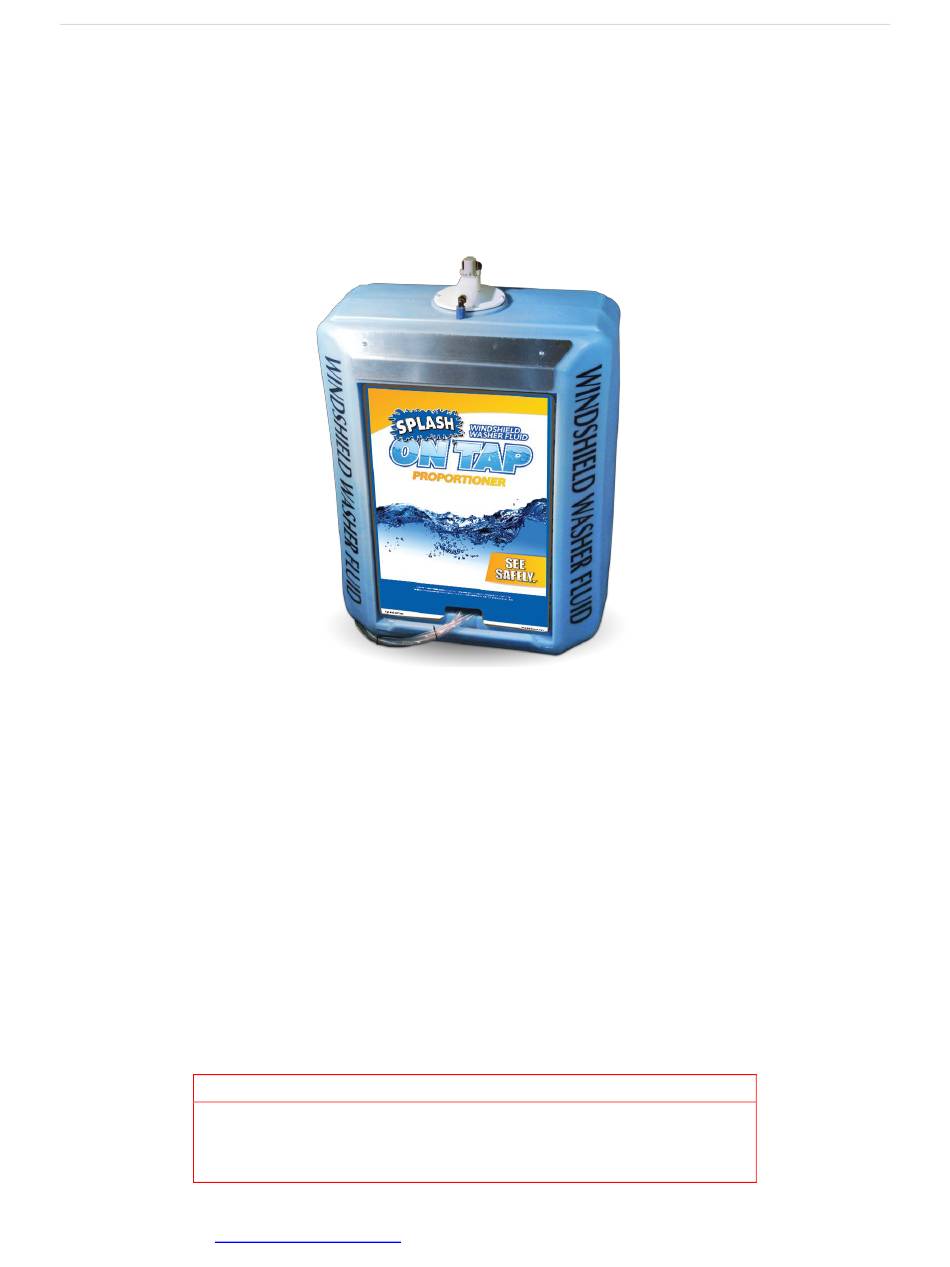

40 Gallon Water Driven Proportioner (#40-SOTWD)
Congratulations on your recent purchase of the SPLASH On Tap proportioner, the future of windshield
washer fluid. If you ever find that you need a replacement part you will be pleased to know that all
parts are available at reasonable prices.
This package contains the following (DOES NOT INCLUDE A BACK-FLOW PREVENTER):
1. (1) 40-SOTWD Proportioner
2. (1) Windshield washer fluid hydrometer
3. (1) Magnetic snap action float
4. (1) Poly Float with chain
5. (4) Magnetic snap action float mounting screws
6. (1) Methanol quick connect
7. (1) Concentrate screen
8. (1) Metal wall bracket
NOTICE: THE METHANOL BARREL MUST BE GROUNDED
NOTICE: A back-flow preventer in compliance with local
and/or state requirements must be installed on the water
line to bring the unit to safety standards.
www.SPLASHwash.com
SPLASH On Tap™
Installation Guide
8.
(6) Tank bracket bolts
9. (6) Tank bracket washers
10. (4) 3/8" Lead anchors
11. (4) 3/8" Anchor screws
12. (4) Anchor washers
13. (1) Methanol hose
14. (2) Hose clamps
15. (1) Bung wrench
Questions?
(888) 784-0802
P a g e
| 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the On Tap and is the answer not in the manual?

Questions and answers

Summary of Contents for Splash On Tap

  • Page 1 40 Gallon Water Driven Proportioner (#40-SOTWD) Congratulations on your recent purchase of the SPLASH On Tap proportioner, the future of windshield washer fluid. If you ever find that you need a replacement part you will be pleased to know that all parts are available at reasonable prices.
  • Page 2 P a g e COMPLIANCE WITH LAW The Equipment is designed to dispense windshield washer fluid containing methanol, which is a volatile organic compound (VOC). The United States Environmental Protection Agency (EPA) regulates the use of VOCs and specifically limits the amount of methanol that can be used in products. The Equipment must be used in compliance with federal, state, and local laws and regulations.
  • Page 3 P a g e 40-SOTWD Set-Up Instructions Step 1: Finding a location for the proportioner  Locate an area for tank installation, if possible near the air pump for the overhead reels and water line.  Unit must be hung on a concrete wall. Step 2: Installing the unit on the wall ...
  • Page 4 P a g e Step 3: Plumbing the water line  Thread the bung tube into the 55 gal methanol drum.  Secure the quick connect to the bung in the drum. Make sure the quick connect is snug.  Attach the methanol hose from the quick connect to the manifold located in the proportioner.

  • Page 5: Step 5: Product Installation

    P a g e Step 4: Plumbing the existing air pump  Locate the threaded hole on the back lower right of the tank.  Locate the existing windshield washer fluid delivery pump.  Connect the existing pump to the threaded hole on the proportioner. Step 5: Product Installation ...
  • Page 6 P a g e Step 6: Settings  All proportioners are preset at +32F, 0F, -10F, -20F and -25F.  If alternate settings are desired, manually set unit using the supplied hydrometer and the setting guide provided below.  Also refer to the setting guide for troubleshooting. For a +32˚F summer time product, close all black valves.
  • Page 7 P a g e 40-SOTWD Troubleshooting 1. If the blue concentrate is not being mixed with the fluid generally the orifice is clogged.  To remove a clogged orifice, use air hose and apply low pressure air (5 PSI Recommended) through the hose to remove any build up. ...
