Kencove FSG175 Operating Manual

Fence staple gun
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Kencove Farm Fence Supplies
344 Kendall Rd
Blairsville, PA 15717
1-800-KENCOVE
sales@kencove.com
www.kencove.com

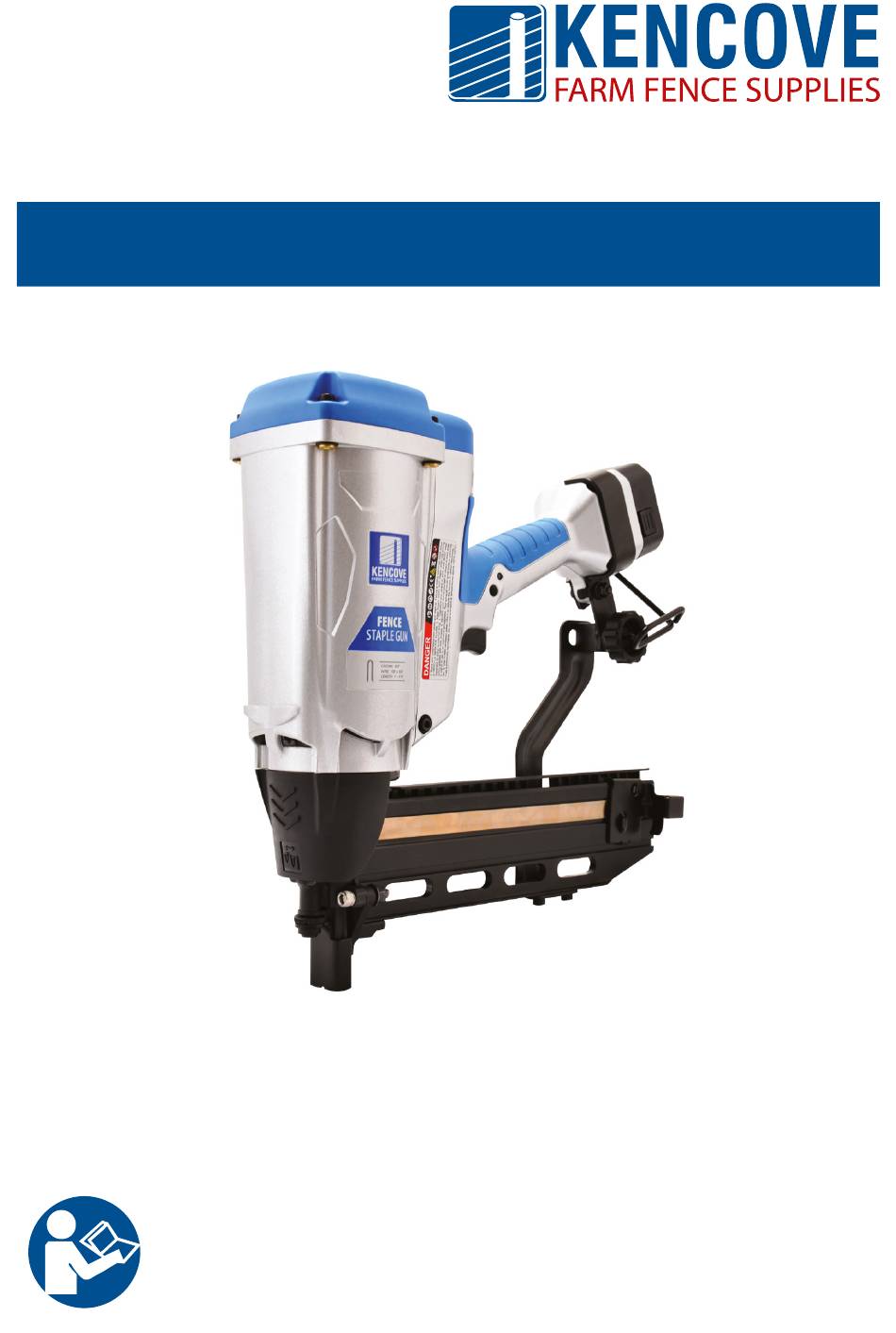

OPERATING MANUAL
FSG175 FENCE STAPLE GUN
To reduce the risk of possible injury, read the instructions
before using the tool. Do not use the tool if you don't
understand the instructions. Do not use tools without
warning and/or danger labels.
Keep the manual in a safe place for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSG175 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kencove FSG175

  • Page 1 1-800-KENCOVE sales@kencove.com www.kencove.com OPERATING MANUAL FSG175 FENCE STAPLE GUN To reduce the risk of possible injury, read the instructions before using the tool. Do not use the tool if you don’t understand the instructions. Do not use tools without warning and/or danger labels.

  • Page 2: Table Of Contents

    TABLE OF CONTENT GENERAL WARNING ................3 General safety warning ................3 Tool safety warning .................4 Fuel safety warning .................5 Battery safety warning ................5 Charger safety warning ................5 OPERATION INSTRUCTION ..............6 Load and unload the fuel cell ..............6 Load and unload the fastener ..............6 Depth of drive adjustment ...............7 Actuation mode and the steps to fire the tool .........7 Jam clearing ...................7...

  • Page 3: General Warning

    GENERAL WARNING GENERAL SAFETY WARNING Always wear approved safety glasses with side shields or other  approved front and side eye protection, when handling, operating or servicing the tool. It is employer’s responsibility to enforce user and all other nearby personnel at worksite to wear eye protection when the tool is operated.

  • Page 4: Tool Safety Warning

     Keep body balance when operating the tool, do not over reach.  Keep the tool, fuel, charger and battery out of the reach of children. The tool is dangerous in the hand of untrained persons. TOOL SAFETY WARNING Do not modify or repair the tool in any method other than the original design. ...

  • Page 5: Fuel Safety Warning

    FUEL SAFETY WARNING  Use only the fuel cells recommended by the manufacturer. Read the Safety Data Sheet to understand more about your fuel cell contents.  Recycle the empty fuel cell according to the local law. Do not attempt to recharge the fuel cell.

  • Page 6: Operation Instruction

    OPERATION INSTRUCTION LOAD AND UNLOAD THE FUEL CELL  Open the fuel cell door by pulling the door and rotate.  Insert the fuel cell into the chamber. Align the fuel cell nozzle with the fuel stem on the tool.  Close the fuel cell door. LOAD AND UNLOAD THE FASTENER  Connect to battery and fuel cell before you load the fasteners.

  • Page 7: Depth Of Drive Adjustment

    DEPTH OF DRIVE ADJUSTMENT  This tool is equipped with tool free depth of drive adjustment. Test the depth of drive on a scrap piece before you start your work.  Turn the knob to adjust the depth of drive.  Repeat above procedure until you find the desired setting.

  • Page 8: Charge The Battery And Led On Tool And Charger

    CHARGE THE BATTERY AND LED ON TOOL AND CHARGER  The tool is supplied with two batteries. It will take 2 hours before a battery is fully charged.  There will be no LED light when the charger is connected to the power supply but no battery is on the charger.

  • Page 9: Maintenance Instruction

    MAINTENANCE INSTRUCTION WARNING: disconnect the power source (fuel cell and battery) before performing any maintenance GENERAL MAINTENANCE Keep the tool in clean condition at all times. Wipe off grease or oil with a dry clean cloth to prevent accidental tool drop. Avoid using a solvent base cleaner to clean the tool, certain solvent will damage or weaken the composite parts of the tool.

  • Page 10: Trouble Shooting

    TROUBLE SHOOTING SYMPTOM PROBABLE CAUSE AND SOLUTION Red LED indicator light is on and  Battery charge might be too low. the tool does not operate.  Replace battery with a fully charged one.  Adjust the depth of drive setting to deepest.  Clean the cylinder with proper cleaner.
  • Page 11  Check fuel cell.  Clean or replace air intake filter. Tool appears to be losing power.  Check spark plug wire.  Clean the tool with proper cleaning fluid. For other problems: contact Kencove at 1- 800-KENCOVE.
