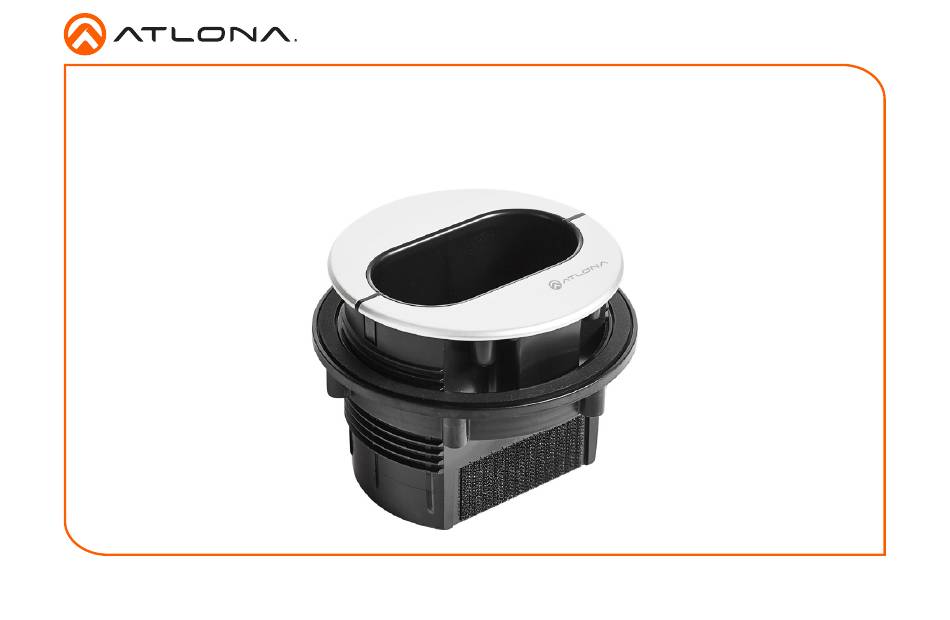

- Page 1 Installation Guide AT-PKT-3H Pocket™ Series Architectural Cable Access Enclosure for Three Cables FOR TABLETOP USE...
-
Page 2: Package Contents
Installation Guide AT-PKT-3H Package Contents 1 x Tension Ring 2 x Cable ribs 2 x Cable tie holders 2 x Screws for cable ribs 1 x AT-PKT-3H 4 x Screws for 3 x Cable bushings 2 x Cable ties 1 x Polyester cable bag 1 x Installation Guide cable tie holders... -
Page 3: Installation
Installation Guide AT-PKT-3H Installation Drill a 102mm diameter hole into the Insert the AT-PKT-3H into the hole. table. Mounting Dimensions Inches Millimeters Maximum Table Depth 1.97 Maximum Cable Size 0.24 Minimum Cable Housing 0.39... - Page 4 Installation Guide AT-PKT-3H Thread the tension ring onto the AT-PKT- Insert the cables through the PKT-3H, 3H from below the table, until the unit is then affix the cable bushings and cable secure and no longer moves. ribs to the wires.
- Page 5 Installation Guide AT-PKT-3H Affix the cable ribs to the AT-PKT-3H Mount the cable tie holders* underneath using the two included screws. the table, using the included screws. * Mount one or both holders based on need.
- Page 6 Installation Guide AT-PKT-3H Place the cables within the included cable bag. Affix the cable bag to the unit using the already installed Velcro of the unit and bag. Thread the cables through the cable tie and the holder then tighten the cables ties until the cables are secured.
