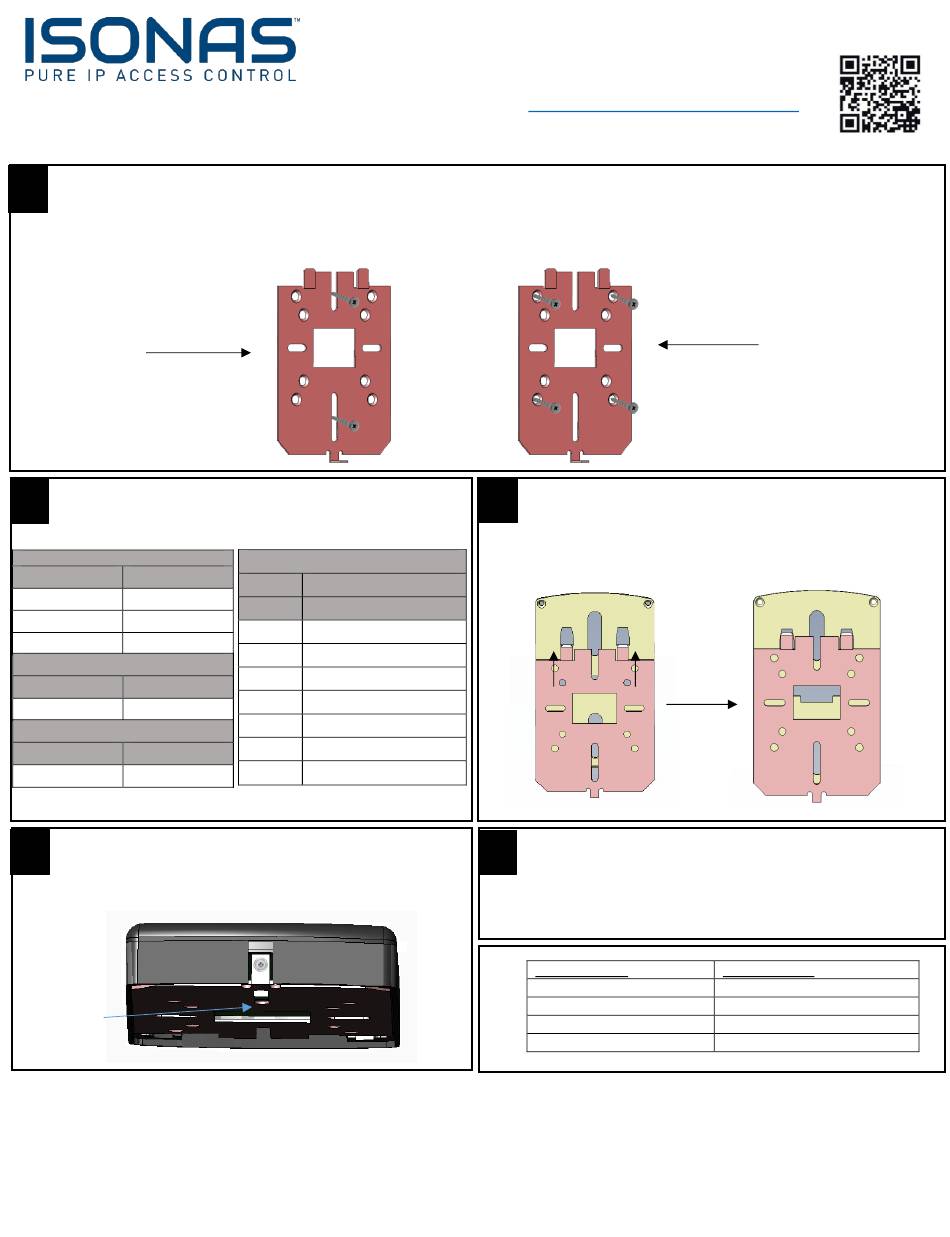

Isonas Pure IP Wiegand Reader Quick Installation Instructions

PURE IP™ WIEGAND READER
QUICK INSTALLATION INSTRUCTIONS
MODELS: R-1-MCT-W, R-1-MCT-WK
1
Install Metal Wall Plate to Single Gang Box
Connect the wall plate to the single gang box using the provided #6 screws. Alternatively you can use the provided #4 screws in
the four outer holes for other installation requirements. Drywall installations will require molly bolts.
Standard Single
––
Gang Box
Installation
2
Wire the Cable to the Control Panel
Max Length to Panel
Length AWG
200' (60 m) 22
300' 20
500' 18
Current @ 12 V and 25 C
Avg. mA Max. mA
110 160
Current for ET25 @ 12 V and 25 C
Avg. mA Max. mA
140 190
4
Install the Reader Screw
Install the #4-40 screw or pin-in-torx at the bottom of the
reader.
Screw or
pin-in-
torx
*Patent Pending
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
the user's authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause
"
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage,
et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Common Cable Connections
Red Power In
Black Ground
Shield Shield Ground
Brown* Tamper Out
Green Wiegand Data 0 / RS 485A
White Wiegand Data 1 / RS 485B
Yellow* Beeper Control
Blue* Green LED Control
Orange* Red LED Control
*these wires are only used in
Wiegand readers.
Questions? Scan our QR code or visit
www.isonas.com/support/installFAQ
3
Attach the Reader to the Wall plate
Align the reader so that the tabs of the base plate slide into
the slots on the wall plate and slide the reader into position.
5
Test the Reader
Power the reader, the red light-bar will light, followed by a beep.
Present a valid credential to the reader and the light-bar will turn
green.
Tools Required:
1"(25mm), 1/8" drill bits
Phillips Screwdriver
T8 Security Torx Bit
Changes or modifications not expressly approved by WaveLynx could void
Alternative for
situations
outside of a
single gang box
installation.
Items Included:
Reader, Backplate & Wall Plate
(2) #6 Screws
(1) #4-40, (1) pin-in-to
(4) #4 Screws
Le présent appareil est conforme aux CNR
