Summary of Contents for Bushman M5067

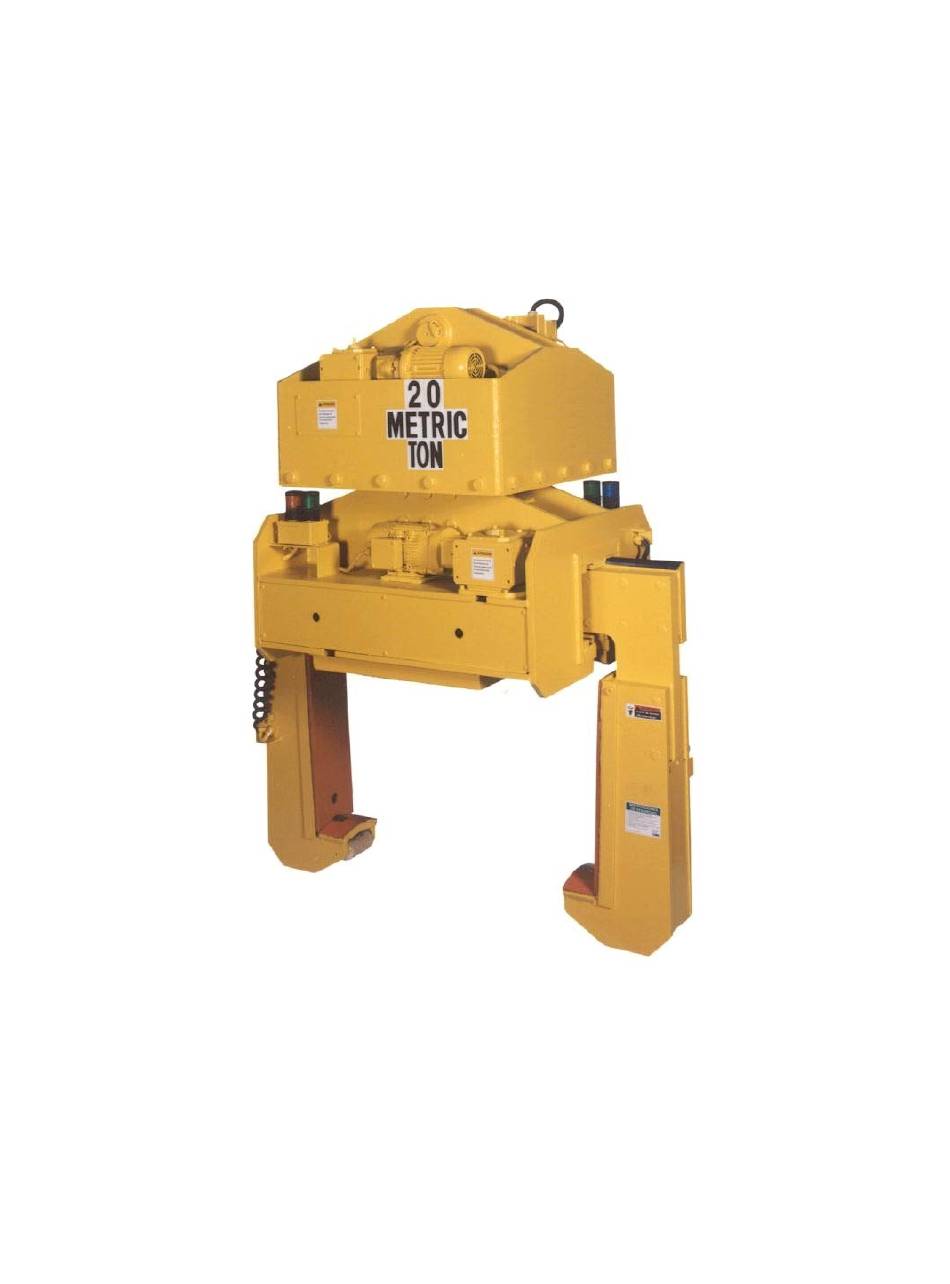

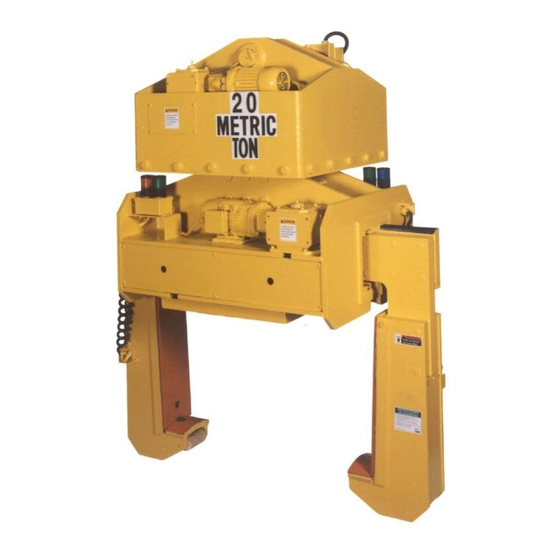

- Page 1 COIL LIFTER M5067 & MR5067 Operation Safety & Maintenance Manual...
- Page 2 REVIEWING THE MARKINGS The capacity of each coil lifter is listed on the identification plate which is located on the inside face of the frame. The live load plus the weight of the lifter (also listed on the identification plate) cannot exceed the rated capacity of the crane.
- Page 3 OPERATING INSTRUCTIONS The electrical control system integrated with the lifter must be equipped with an open and close function. "Open" increases the gap between the lifting legs; "close" decreases the gap between the lifting legs. To operate the lifter, open the legs until the lifter is wider than the coil to be handled. Move the lifter so that it is centered over the coil, and then lower it until the lifting shoes are centered on the coil ID.
- Page 4 LIFTING CONSIDERATIONS o Plan the lift before engaging the load. o Use the lifter for its designated purpose only. o Never ride or allow riders on the lifter. o Do not lift loads beyond the lifter's rated capacity. o Before moving a load, be sure the path of the load is clear of obstructions and personnel. Take instructions only from the person designated to give signals.
- Page 5 INSPECTION Safe operating practices require scheduled inspections to ensure that the coil lifter is maintained in a safe operating condition. An individual record of inspections and repairs, such as the one on the back cover of this booklet, should be maintained for each lifter. At the beginning of each shift, inspect the unit to be sure it is in safe operating condition.
- Page 6 1) Prior to clutch adjustment loosen locking set screw located above the adjustment nut in the side of the clutch housing. Note: Set screw must be loosened prior to making any clutch adjustment. 2) Using Spanner wrench provided tighten locking nut clockwise to prevent clutch slippage then position nut so that one of the vertical grooves aligns with one of set screw holes.
- Page 7 Lubrication & Maintenance instructions 1) Always disconnect power at source before servicing unit. 2) Coat teeth of rack, pinion, and slewing ring gear for models with rotation (MR models), drive every two months. Use Jet Lube Gear Guard, open gear lubricant. 3) Lubricate slides and slide ways every two months using STL Compound Corporation “SAF-T-EZE”...
- Page 8 RECORD OF INSPECTION AND MAINTENANCE Date Inspection or Findings Initials Maintenance Procedure...
