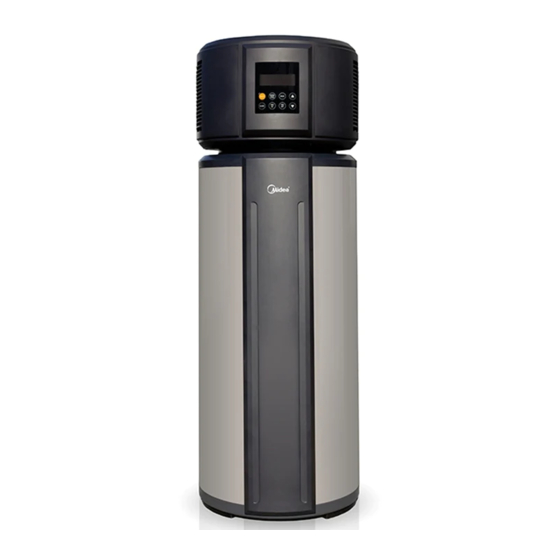

HEAT PUMP
170 LITRE
QUICK
START
INSTALLATION
GUIDE

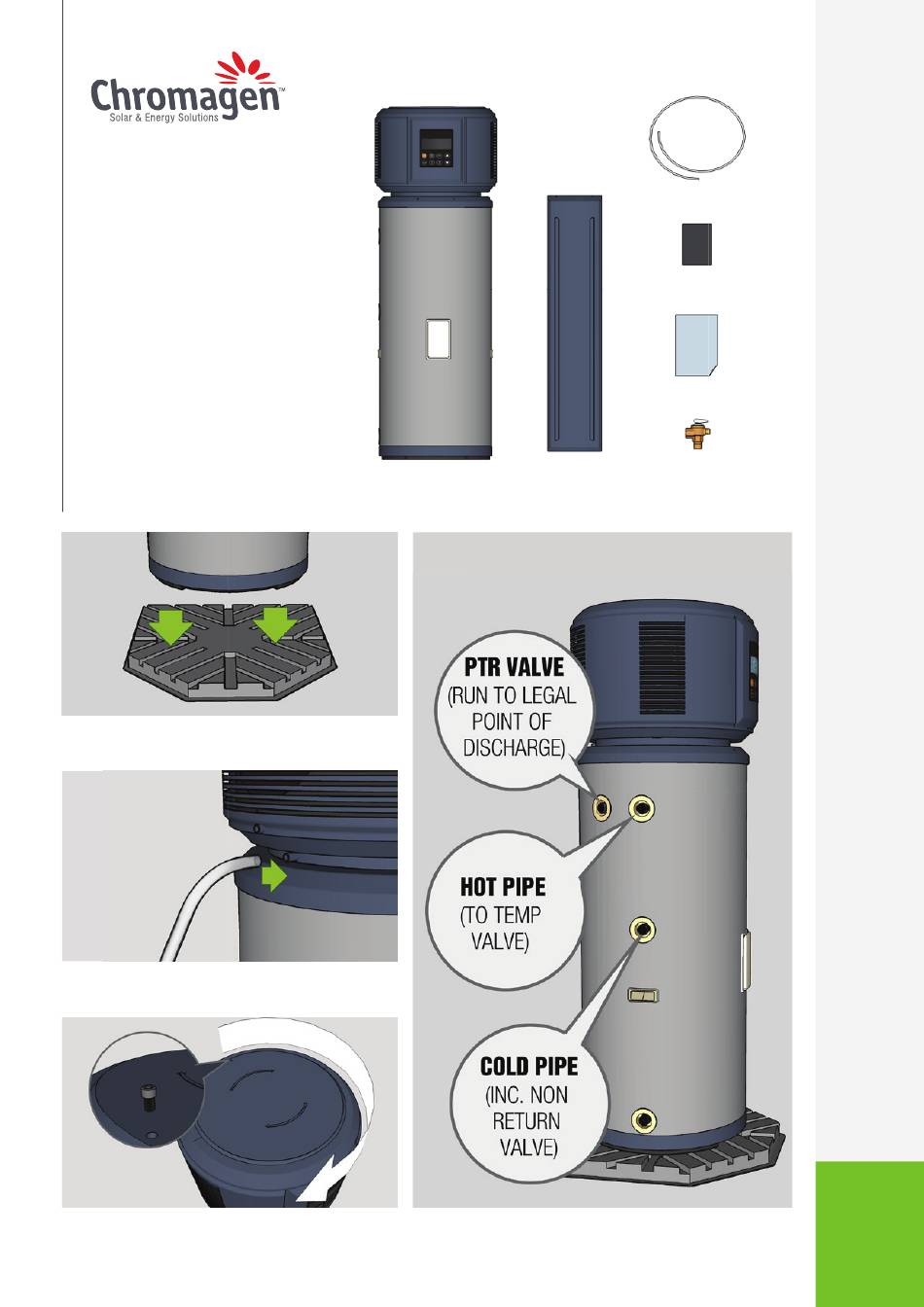

Position unit on a flat sturdy surface able
to bear the weight of a fully filled unit.
Fit the condensation tube to the lower port on the rear of
the unit and run to suitable location.
Remove top cover (to access the electrical compartment)
by removing the locking screw and rotating in a clockwise
direction. Simply lift up to remove and put aside.
FASCIA COVER
HEAT PUMP
BOX CONTENTS
Connect the hot pipe, the cold pipe (ensure non-return valve is
used at the tank location) & connect PTR valve (drain to legal
point of discharge)
CONDENSATION TUBE
UV SCREEN COVER
INSTRUCTIONS
PTR VALVE
170L Heat
Pump: Quick
Start Guide
1
