Summary of Contents for Altimium CPA562
- Page 1 CPA562 HDMI IN-Line Controller User Manual CPA562 HDMI IN-LINE Controller All Rights Reserved Version: CPAV.1.0.2...
- Page 2 CPA562 HDMI IN-Line Controller Important Safety Instructions 1. Do not expose this apparatus to 6. Clean this apparatus rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Page 3 CPA562 HDMI IN-Line Controller Warnings of FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This...
-
Page 4: Table Of Contents
CPA562 HDMI IN-Line Controller Table of Contents Important Safety Instructions ....................2 Introduction ........................... 3 Overview ........................3 Key Features ........................ 4 Key Benefits ......................... 4 Package Contents ......................5 Specifications ....................... 6 Panel Layout ........................ 8 EDID Presets ........................9 RS232 Control Tool ...................... -
Page 5: Introduction
CPA562 HDMI IN-Line Controller Introduction Overview Altimium CPA562 is a HDMI In-line Controller, with resolutions up to 4K@60Hz (chroma sub-sampling 4:4:4 8-bit only) and HDCP 2.2. Its digital or analog audio output allows audio to be de-embedded from HDMI input and sent to audio distribution system, such as AVR or Zone Amplifier. -
Page 6: Key Features
CPA562 HDMI IN-Line Controller Key Features Support video source up to HDMI 2.0(4K@60Hz 4:4:4 8-bit) and HDCP 2.2 HDMI audio de-embedded out with Digital Coaxial and Analog Stereo Rotary switch for EDID Management with 15 EDID presets ... -
Page 7: Package Contents
CPA562 HDMI IN-Line Controller Package Contents 1 x CPA562 1x Power Supply (DC 12V 0.5A) 3 x Phoenix Male Connector (3.5 mm, 3 pins) Altimium www.altimium.com... -
Page 8: Specifications
CPA562 HDMI IN-Line Controller Specifications Technical Input 1 x HDMI IN Input Signal Type HDMI 2.0 with HDCP 2.2 VESA: 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, Input Resolution Support 1680x1050@60Hz, 1920x1200@60Hz; SMPTE: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P@24/25/30/50/60Hz, 1080I@50/60Hz,... - Page 9 CPA562 HDMI IN-Line Controller SMPTE: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P@24/25/30/50/60Hz, 1080I@50/60Hz, 720P@50/60Hz, 576P@50Hz, 480P@60Hz 100 Ω Video Impedance General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV(Air-gap discharge)/...
-
Page 10: Panel Layout

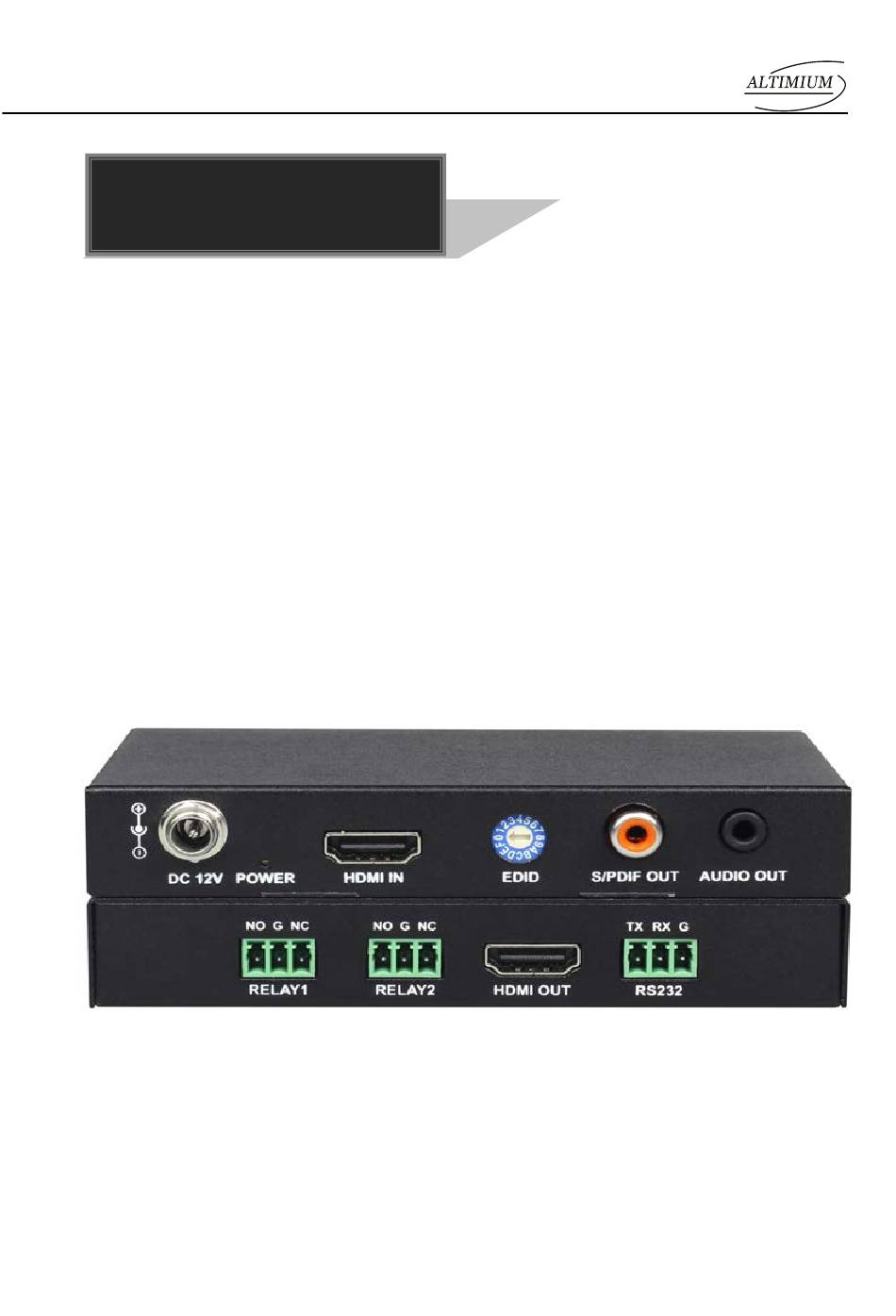

CPA562 HDMI IN-Line Controller Panel Layout Front Panel Name Description 12V DC power input, threaded port for standard or locking DC 12V connection ON: The transmitter is powered on. POWER LED OFF: The transmitter is powered off. HDMI IN Connects to an HDMI source... -
Page 11: Edid Presets
CPA562 HDMI IN-Line Controller Rear Panel Name Description RELAY1 Turn on projection screen automatically Turn off projection screen automatically RELAY2 HDMI OUT Connects to an HDMI display Pre-load and store RS232 command of sink device RS232 EDID Presets Switch for EDID Management with 15 presets as follows: Altimium www.altimium.com... -
Page 12: Rs232 Control Tool
N562 to control the sink device. Connect a PC to N562 via a (RS232 3pins)UART-to-USB cable, running the configuration tool to set the connection parameters correctly before send the pro-loading commands to CPA562. The baud rate for CPA562 is 57600. -
Page 13: Initial Installation
TV, media server etc.) to HDMI IN of the CPA562. Connect the HDMI display device (Such as projector ) to the HDMI OUT of CPA562. Connect audio system to the S/PDIF OUT and AUDIO OUT port of CPA562. - Page 14 CPA562 HDMI IN-Line Controller Altimium www.altimium.com...
-
Page 15: Warranty Terms And Conditions
Warranty Terms and Conditions For the following cases Altimium shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable. The original serial number (specified by Altimium) labeled on the product has been removed, erased, replaced, defaced or is illegible. - Page 16 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
