Summary of Contents for SimworX Pro GT V3

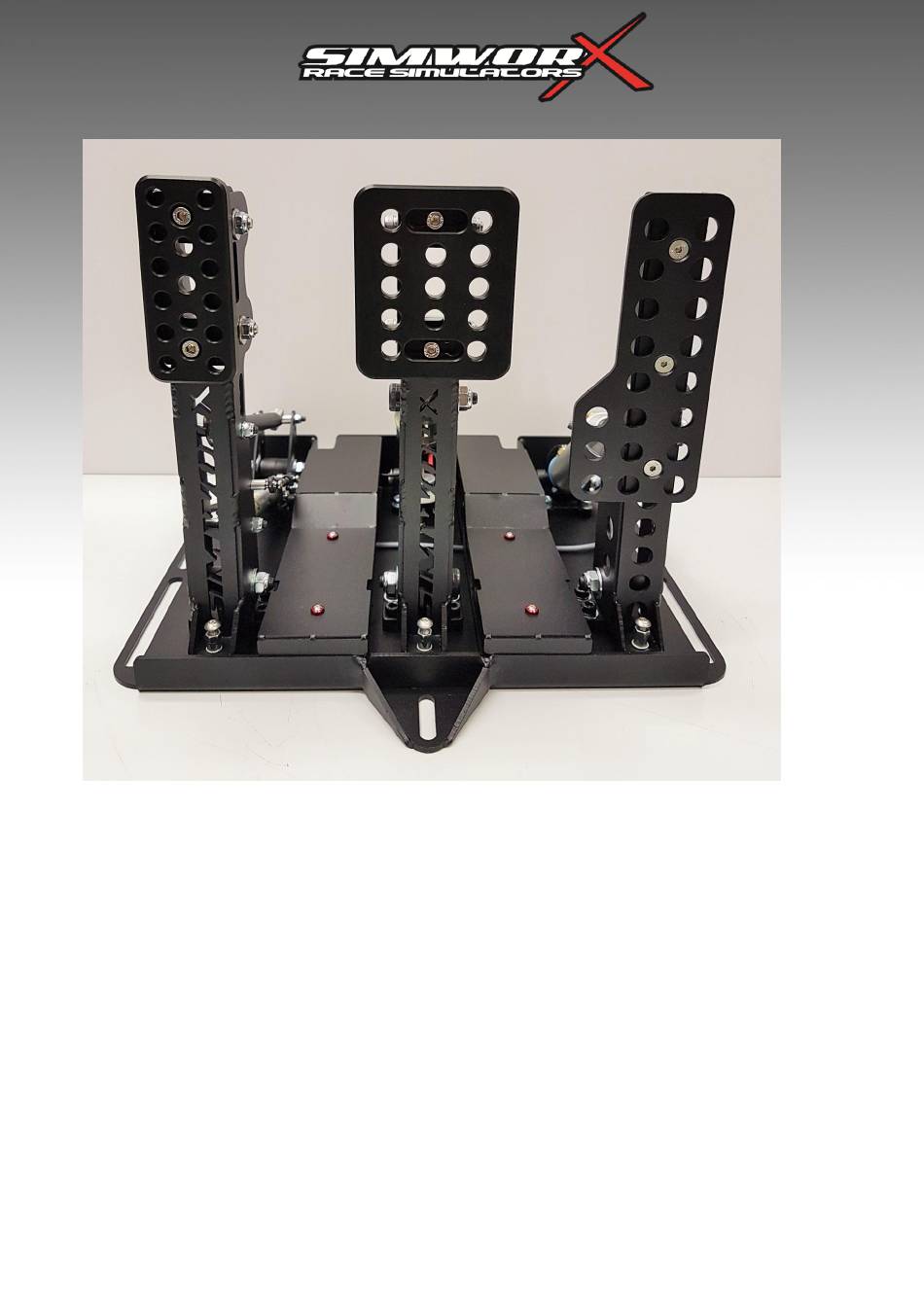

- Page 1 Pro Series V3 LC GT Pedal Set USER MANUAL Load Cell Spec...
- Page 2 12 bit resolution circuit board for accuracy. Simworx has also introduced a rocker arm that the load cell cylinder system pressures up, and by introducing variable durometer dampers that works against the rocker arm’s action, a very finely tuned end stop feel can easily be attained.
- Page 3 Drill and locate these holes first Once located in final position mark and drill The front bolt hole last Heel Plate Please note: Heel plate is optional.
- Page 4 This procedure is based on the windows 7/8.1/10 operating system, older systems may vary. Once you have connected your pedals and the “Simworx Pro Series” device is visible in windows “Devices and Printers”, right click on the “Simworx Pro Series” and select “Game Controller Settings From the next list, select “Simworx Pro Series”...
- Page 5 ADJUSTMENTS Pedal Face Angle The pedal face on both the clutch and brake pedals are fitted with angle and height adjustments. To adjust, using a 5mm allen key and 10mm spanner, loosen off the two nuts (pointed out by the red arrows) a few turns to loosen the pad assembly. Once loose, you will be able to adjust the pad upwards &...
- Page 6 ADJUSTMENTS Pedal Rebound Adjust After any adjustment, you may need to alter the pedal rebound to get the pedal sitting nicely again. To do this, use an 8mm spanner to loosen the locking nut (pointed out by the red arrow) then use a 3mm allen key to adjust up or down the stop until the pedal is in your desired position.
- Page 7 Alternatively try a different USB cable. If you have any problems installing/calibrating or setting up your Pro GT pedal set, contact SimworX support on the below email or give us a call and are more than happy to assist.
