Summary of Contents for JDW Super Bass Boombox

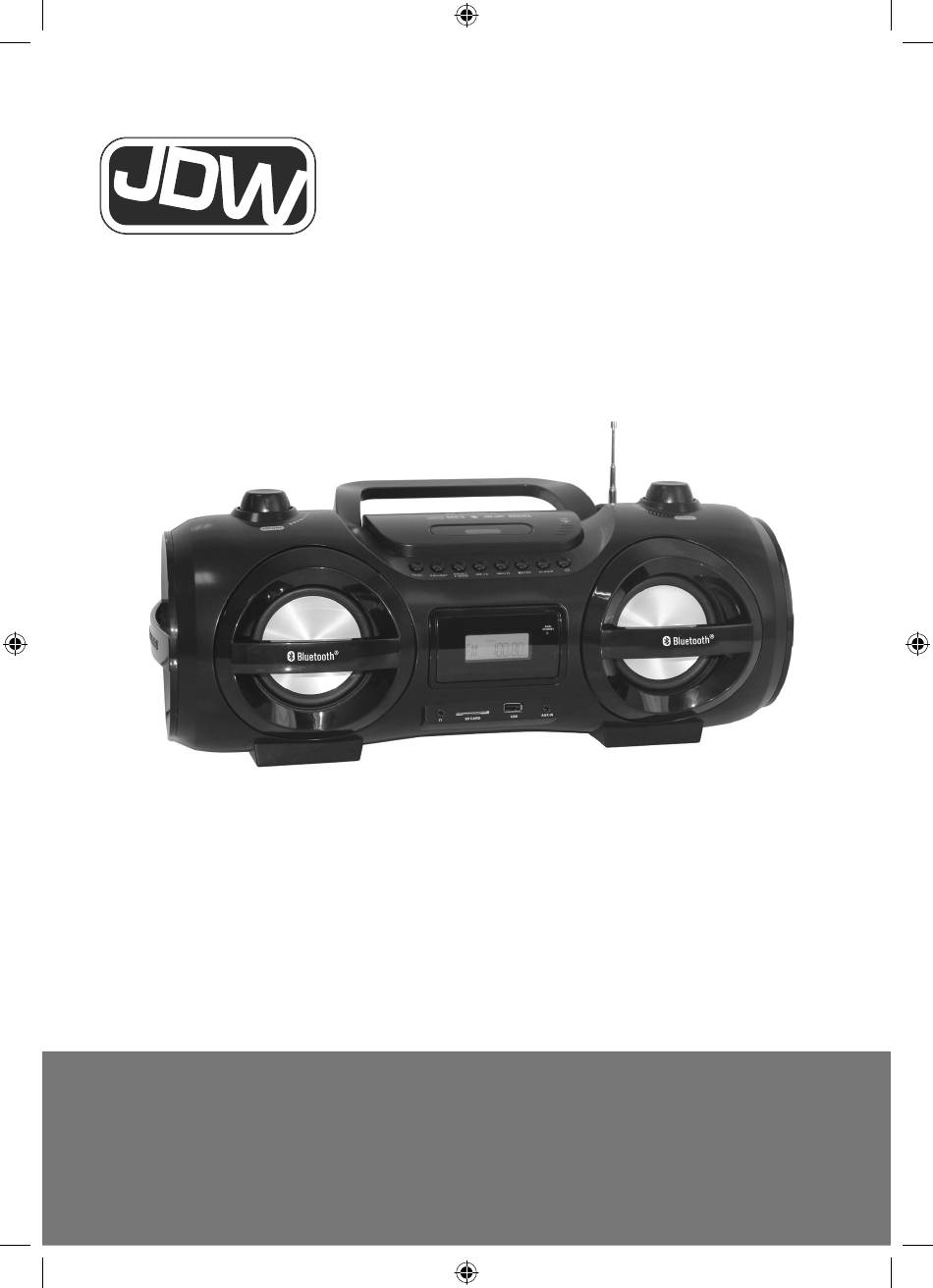

- Page 1 CD328BT 07042017 Super Bass Boombox Instruction Manual Model Ref: CD328BT / Cat Number: MM339...
- Page 2 Introduction Thank you for choosing this Super Bass Boombox. This product is manufactured to the highest standards of performance and safety. Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your device.
-
Page 3: Important Safety Information
12. Check to ensure that the electricity supply matches that shown on the rating plate. 13. Only use the attachments/accessories supplied with the product or recommended by JDW. 14. If the supply cord is damaged, it must be replaced by a... - Page 4 15. Only use this appliance for its intended domestic use. JDW will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.
-
Page 5: Product Overview
PRODUCT OVERVIEW... -
Page 6: Boombox Controls
BOOMBOX CONTROLS 1. Display 14. Back/fast backward/-10 2. Speaker decoration ring button 3. Left/right speakers 15. CD door 4. Headphone jack 16. Next/fast forward/+10 5. SD Card slot button 6. USB port 17. Stop button 7. Standby/Pair indicator 18. Play/pair/pause button 8. -
Page 7: Remote Control Operation
REMOTE CONTROL OPERATION To operate the Boombox with the remote control, point the remote handset at the remote sensor on the front panel and press the appropriate button on the remote handset. The remote works best within a range of 6 ~ 7 meters from the front panel and on an angle of 30 degrees. -
Page 8: Power Source
POWER SOURCE This Boombox is designed to be operated on AC/DC. AC OPERATION Plug the tail of supplied AC power cord into AC socket on Boombox and the plug into household AC outlet. The batteries will be automatically disconnected. This Boombox is designed in Switched-Mode Power Source with voltage range from 100V to 240V. -
Page 9: Volume Adjusting
USING THE BOOMBOX SWITCHING ON THE Boombox After connecting the power, press the STANDBY button on the Boombox or on the remote control to turn on the Boombox. Press the FUNC. button on Boombox or on the remote control to choose TUNER / CD / USB / AUX /SD CARD or BLUETOOTH function. -
Page 10: Radio Operation
DISCO LIGHT There are eight flashing modes of the disco light, press and hold the EQ/LIGHT button on Boombox or press the LIGHT KEY on the remote control to choose the desired mode. To turn off the disco light, press and hold the EQ/LIGHT button on Boombox or press the LIGHT KEY on the remote control until “LIGHT OFF”... - Page 11 RADIO STATION MEMORY OPERATION You may pre-store 30 (FM) radio stations in memory for your preference, so as you can listen to your desired station directly and quickly, no need to tuning and search for again. 1. Press PROG./P-MODE button on Boombox or press MEMORY KEY on the remote control, “P01”...
-
Page 12: Loading A Disc
LOADING A DISC 1. Press the FUNCTION button on Boombox or on the remote control to select “CD” mode. 2. Press the PUSH TO OPEN button to open the CD door, “OPEN” will be shown on the display. 3. Place an audio CD/MP3 DISC into the tray with the front side facing up. -
Page 13: Selecting A Desired Track/Passage
SELECTING A DESIRED TRACK/PASSAGE To select a desired track Press the Fast Forwards / +10 or Fast Backwards / -10 button on Boombox or “TUN+ / Fast Forwards” or “TUN- / Fast Backwards” key on the remote control on stop mode or during playing until the desired track appears on the display. -
Page 14: Programing Tracks
next/previous folder. PROGRAMING TRACKS Programming tracks of disc are possible when playback is stopped. Up to 20 tracks for CD disc and 99 tracks for MP3 disc can be stored in the memory in any order. 1. In stop mode, press the PROG./P-MODE button on Boombox or P-MODE key on the remote to enter program setting, the PROG logo will flash on the display and show P01. -
Page 15: Repeat Play
REPEAT PLAY You can play one track or all tracks on the disc repeatedly. To Repeat a Single Track 1. Press PROG./P-MODE button on Boombox or press P-MODE key on the remote control during play, the display will show a steady “ ”... -
Page 16: Random Play
RANDOM PLAY Press the PROG./P-MODE button on Boombox or P-MODE key on the remote control in play mode till the “RAN” shows steadily on the display, the random play will start from next track automatically, until all tracks are played over and then it will stop. -
Page 17: Sd Card Operation
5. Proceed program play/repeat play (repeat 1- repeat folder - repeat all) /random play/intro play operation as the same described in above “CD/MP3 OPERATION”. 6. It supports 32GB (USB) CAUTION: Do not use any USB extension cable for connecting the USB bar which may cause harmful interference SD CARD OPERATION 1. -
Page 18: Bluetooth Operation
BLUETOOTH OPERATION 1. Press the FUNC. button on Boombox or on the remote control to switch to BLUETOOTH function, the LCD will display “bt ” and the Pair/Standby indicator will flash at high speed. 2. Turn on the Bluetooth function on the device, scan the Boombox “DBU-58”... -
Page 19: Compact Disc Maintenance
COMPACT DISC MAINTENANCE 1. Always use a compact disc bearing the mark as shown. 2. Notes on handling discs • Removing the disc from its storage case and loading it. • Do not touch the reflective recorded surface. • Do not stick paper or write anything on the surface. •... - Page 20 Product Specifications AC 100-240V ~60/50Hz Power Requirement DC 12V UM-1/D x 8pcs Power 48 Watts Consumption Standby <0.5 Watts Consumption Dimensions 49.2(W) x 19.8(H) x 21(D)cm Operation 5ºC - 35ºC Temperature Bluetooth Version Receiving Bands Frequency Range FM 87.5 - 108MHz Optical Pickup 3 - Beam Laser Frequency...
- Page 21 JD Williams Ltd.
