Installation Manual
Turnstile
Tx1500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tx1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for digicon Tx1500

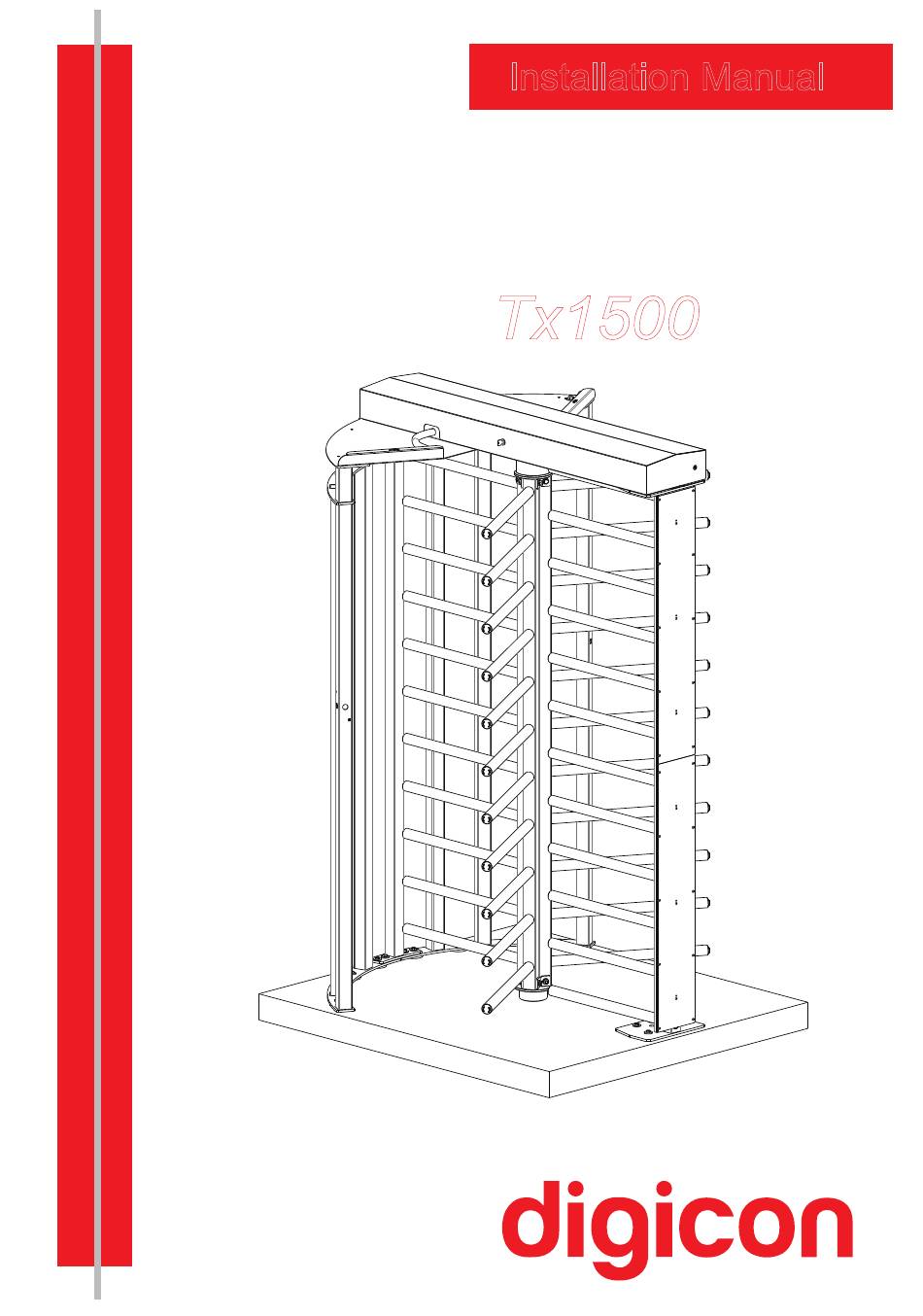

  • Page 1 Installation Manual Turnstile Tx1500...
  • Page 3 Digicon S.A. Códe: 069.31.211 Version: 01 This manual was elaborated by: Digicon S.A. Electronic Control for Mechanics Documentation Sector - EDS...

  • Page 4: Table Of Contents

    Torniquete Tx1500 Contents 1. IMPORTANT INSTRUCTIONS ..............2. ORIENTATIONS ................. 3. INTRODUCTION ................4. INSTALLING Tx1500 ................5. CAPTIONS ..................6. POWER SUPPLY ................. 7. CONTROL BOARD ................7.1.INPUTS ..................7.2.OUTPUTS ..................7.3.CONFIGURATION OF CONTROL BOARD - SWITCHES DS1 AND Ds2 ..

  • Page 5: Important Instructions

    You can see, below, the symbols that will appear in this manual, signaling important moments. It is essential to pay attention to them. TIP: Indicates something Digicon considers important. CAUTION: Indicates a moment of extreme caution when handling the equipment/product...

  • Page 6: Orientations

    Keep this manual for future consultations. Ÿ Digicon reserves its right to alter its products at any moment to adapt them to more Ÿ recent technical advancements. Digicon maintains its right to alter the information contained in this manual without Ÿ...

  • Page 7: Installing Tx1500

    Torniquete Tx1500 4.Installing Tx1500 tep: Prepare the Turnstile assembly The floor where the turnstile will be fixed must meet the following specifications: Dimensions: Direction of flow 1,6mm x l columns width 1,4mm x concrete height 10 cm; Necessary height: 2. meters Level the floor for better product performance...
  • Page 8 Torniquete Tx1500 tep: Drilling device It will be necessary to add cardboard or bubble wrap under the device so not to damage the roof painting when using the drilling demarcations; b. Screw the device (P1) to the turnstile's roof (P1);...
  • Page 9 Torniquete Tx1500 Step: Assembly of sides with rods or glass sides Sides with rods: a. Fit the sides (P5) and (P6) so to form an arch; b. Screw the sides using washer (P7) and screw (P8); repeat on the four fixing points (two on the upper part, two on the lower part);...
  • Page 10 Torniquete Tx1500 Glass sides: a. Fit the sides (P39) and (P40) so to form an arch; b. Screw the sides using washer (P41) and screw (P8); repeat on the four fixing points (two on the upper part, two on the lower part);...
  • Page 11 Torniquete Tx1500 tep: Assembling central arms a. fix the inner triangle (P9) to one of the arms (P10) using the screw and the spring washer (P11); repeat it for the arm's two fixing points (P10). Fixing this part is done internally in the arms that have no buffer.
  • Page 12 Torniquete Tx1500 Base set assembled. Do not fasten it. Upper base set assembled. Do not fasten it. Quantidade de peças usadas nesta etapa: P9 = 2x - Triangle Ÿ P10 = 3x - Central arm Ÿ P11 = 6x -...
  • Page 13 Torniquete Tx1500 tep: Fixing the bearing support Replace the fastener's washer (P21) for the washer (P7) Use the fastener (21); does not accompany the product Place silicone rubber under the bearing; then fix the bearing support (P19) to the central hole, as shown in the image.
  • Page 14 Torniquete Tx1500...
  • Page 15 Torniquete Tx1500 tep: Fixing the stationery arm a. Set the coincident flanges (P22) in the holes of the floor. b. Set the stationery arm (P24) over the flanges and coinciding holes; c. Replace the fastener's washer (P21) by the washer (P7);...
  • Page 16 Torniquete Tx1500 tep: Fixing the roof a. Place the roof over the side (P23 or P48); b. Screw only the edges of the roof, using in each fixation 2 washers (P7), screw (P26), and nut (P18). The center will be fastened later, alongside the coverage.
  • Page 17 Torniquete Tx1500 Step: Fixing the coverage a. Check the height from the floor to the upper part of the roof (P1) – 2.1 meters with tolerance of 5mm; b. Place the turnstile coverage (P27) over the roof (P1) and the stationery arm (P24);...
  • Page 18 Torniquete Tx1500 Step: Fit the central pivoting arm a. Grease the bearing support (P19). (We recommend Molykote BR-2 Plus grease); b. Fit the central arms assembly (P28) in the bearing support (P19). In this stage, the assembler or mechanic cannot drop the central arms assembly, so we suggest an auxiliary assembler or to tie the central arm to the structure;...
  • Page 19 Torniquete Tx1500 Step: Fitting of locking system a. Fit the locking system (P29) in the pivoting arm assembly (P28), maintaining the arms' alignment, as seen in the 10 step; fit it in the coverage (P27); b. Fit the locking system (P29) with washer (P30), spring washer (P31), and nut (P32).
  • Page 20 Torniquete Tx1500 Step: Cable passage a. Pass the power and network cables through a hose (P33); b. Put one of the hose's ends (P33) inside the coverage (P27) and the other end inside the side structure (P23 or P48); c. Inside the coverage (P27), place the clamp (P34) on the hose's end (P33) to avoid it being torn;...
  • Page 21 Torniquete Tx1500 tep: Assembling sides glasses a. Place the glass (P49) and fix it using washers (P44) 2x, the glass fixing bracket (P43), and screw (P46). b. Place the glass (P50) and fix it using washers (P44) 2x, the glass fixing bracket (P43), and screw (P46).
  • Page 22 Torniquete Tx1500 tep: Assembled Turnstile Turnstile with grid sides (gray, blue, and stainless steel) Turnstile with glass sides (gray, blue, and stainless steel)
  • Page 23 Torniquete Tx1500 5. Legenda Descrição das Peças CZ AZ IX VDR Observações P1 - Turnstile's roof 01 01 P2 - Device for drilling 01 01 Por Pedido P3 - Stainless steel Allen M6x15 screw 02 02 P4 - Self-locking Hexagonal nut M6...
  • Page 24 Torniquete Tx1500 Descrição das Peças CZ AZ IX VDR Observações P38 – finishing cover - 06 06 P39 - 2 rods turnstile side - P40 - 1 rod turnstile side - P41 – stainless steel flat washer D10 - P42 – glass stationery bracket - P43 –...

  • Page 25: Power Supply

    Turnstile Tx1500's control board was designed to meet most technologies of access control terminals in the market. The controller have mechanical features and layout perfectly suited for the Turnstile Tx1500's needs and it is one of the best options for the equipment's operation.
  • Page 26 Torniquete Tx1500 Signal Name/Description INPUTS +Vext1 (enables turn through voltage) HAB1 (enables turn through dry contact – from right to left) Vext2 (enables turn through voltage) HAB2 (enables turn through dry contact – from left to right) +12Vdc (available to auxiliary – maximum 500 mA)

  • Page 27: Inputs

    (CN10) are provided alongside Tx1500. -The cable of the box sensor (CN9) is provided alongside the collecting box kit (optional). Particularly about the CN11 connector, pins 13 and 14: Turnstile Tx1500 can be configured as follows to determine direction passage: Passage direction...

  • Page 28: Outputs

    5 a 24 Vca ou cc 110 a 220 Vca ou cc The control board also has inputs for optical sensors (CN11) that monitor rotation without mechanical wear, and two opto-isolated inputs to clear the Turnstile Tx1500 if required. Outputs Turnstile Tx1500 board has outputs for return signals, electromagnets, pictogram, collecting box, and sound alarm.
  • Page 29 Torniquete Tx1500 Connect the outputs according to the following image: Sound alarm Maximum current: 500mA...

  • Page 30: Examples Of Some Configurations

    Habilitation per border* Habilitation per level** * “Habilitation per border” means that Tx1500 will be enabled by a pulse at the entry border (NC inputs) or exit border (NO inputs). ** “Habilitation per level” means that Tx1500 will remain free as long as there is an input signal.

  • Page 31: Serial Communication

    Torniquete Tx1500 7.5. Serial communication Duo's control board allows serial configuration of the equipment. The Turnstile Tx1500 communication protocol used is as follows: Tamanho(LSB) Tamanho(MSB) Comandos Where: represents beginning of transmission (0x02) is the byte with the least significant size component Size(LSB) is the byte with the most significant size component...

  • Page 32: Dimensions

    Torniquete Tx1500 8.Dimensions Closed cover Open cover 1350(54.149") 1500(56.055") Upper view Side view INFORMATION: All measures presented in the images are in millimeters (Inches)

  • Page 33: Warranty And Technical Assistance

    Tx1500 9.Warranty and technical assistance Digicon is responsible for the project, skilled labor, and quality of the materials used in the manufacturing of our products, ensuring that the equipment and all parts are free of manufacturing defects or problems. Digicon commits itself to replace or repair, as we choose, any part or equipment presenting manufacturing defects without any costs to the buyer, in our factory in Gravataí...
  • Page 36 Address: Rua Nissin Castiel, 640 - Distrito Industrial. Gravataí/RS CEP 94045-420 Sales: 55-51-3489-8700/ 3489-8745 Technical Assistance: 55-51-3489-8903 Fax: 55-51-3489-1026 Email: vendas.acesso@digicon.com.br Branch/ SP Development, Technical Assistance and Sales Address: Rua São Paulo, 82 - Alphaville. Barueri/SP CEP 06465-130 Phone: 55-ll-3738-3500 Fax: 55-ll-4191-2585 Email: vendas.acesso@digicon.com.br...
