PowerMax PMTS-30 Owner's Manual

Ac power transfer switch. transfer switch for 120 or 240vac 30 and 50 amps

FOR YOUR SAFETY, READ ALL INSTRUCTIONS BEFORE INSTALLATION AND OPERATION.

INSTALLER:

Provide these instructions to the end user or consumer.

CONSUMER:

Keep these instructions for future reference.

NOTICE: Products are not to be used nor are warranted in aerospace, medical or lifesafety

applications.

120 or 240 VAC may present. Risk of electric shock: This device switches 120Vac or 240Vac and

has more than one input. All inputs must be disconnected before any work is done on this product.

DO NOT mount/install unit in compartments designed for storage of batteries of flammable liquids.

The PMTS-30 and PMTS-50 are not ignition protected. They employ components that tend to

produce arcs or sparks. To prevent fire or explosion, NEVER install electrical devices in

compartments where batteries or flammable materials (such as gasoline or LP gas) are stored or

used.

The PMTS-30 and PMTS-50 are for a 30 and 50 Amp AC service respectively. It can be mounted in any

position, leaving enough room for the shoreline and generator wire connections. To minimize voltage drop

across the wire, install the PMTS-30 or PMTS-50 as close to the generator and shore power cord

entrance as possible.

AC POWER TRANSFER SWITCH

Transfer Switch for 120 or 240Vac

SAFETY ALERT

WARNING – Avoid Possible Injury or Death

WARNING – Avoid Personal Injury or Product Damage

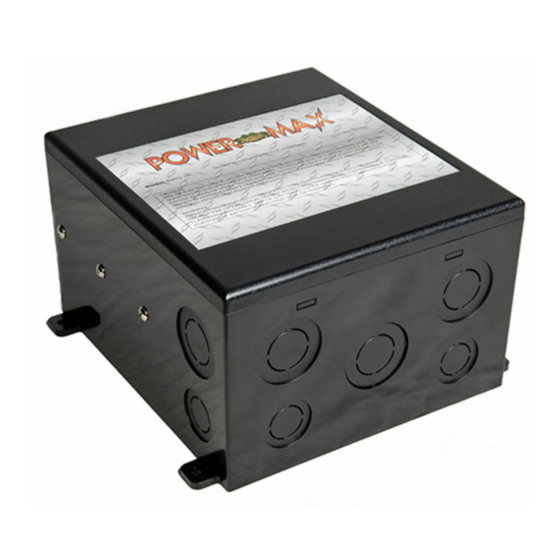

PMTS-30 and PMTS-50

30 and 50 Amps

Table of Contents

Do you have a question about the PMTS-30 and is the answer not in the manual?

Page 1 (such as gasoline or LP gas) are stored or used. The PMTS-30 and PMTS-50 are for a 30 and 50 Amp AC service respectively. It can be mounted in any position, leaving enough room for the shoreline and generator wire connections. To minimize voltage drop across the wire, install the PMTS-30 or PMTS-50 as close to the generator and shore power cord entrance as possible.
Page 2 When the Generator stops, power automatically and immediately transfers back to shore power. Wiring instructions: The PMTS-30 is rated for use on a circuit capable of momentarily delivering not more than: 3000 rms symmetrical Amps. 240 V AC Max operating voltage The PMTS-50 is rated for use on a circuit capable of momentarily delivering not more than: 5000 rms symmetrical Amps.
Page 3 Wiring to Control Panel Wiring from Generator Wiring from Shore Power All Grounds connect here PMTS-30 Wiring to Control Panel 1∅ L1, Neut 2∅ L1, Neut, L2 Wiring from Generator 1∅ L1, Neut 2∅ L1, Neut, L2 All Grounds connect here...

Pmts-50
