Ohlins VWS MI10 Mounting Instruction

Adjustments
Before driving, always make sure that the
basic settings made by Öhlins are according
to recommended Set-up Data. Read about
adjustments and setting up in the Öhlins
Owner's Manual before you make any
adjustments. Contact an Öhlins dealer if you
have any questions about setting up the
shock absorber.

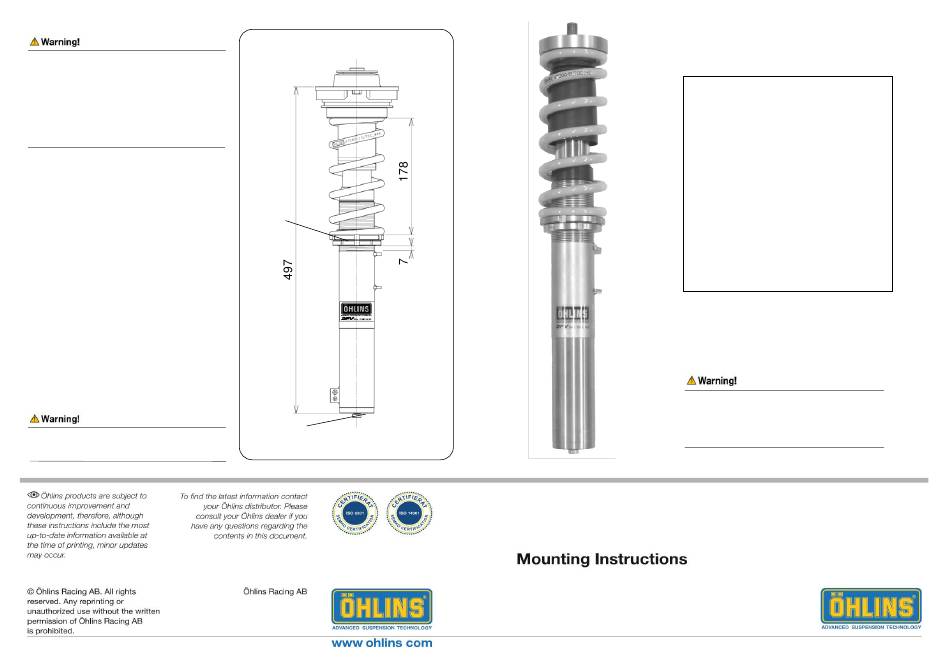

The standard preload is 2 mm from a free
length of 180 mm, giving 178 mm installed
length, see fig ③.
Set-up Data
Recommended set-up
Rebound setting
Track 0-7 clicks
Winding road 5-10 clicks
Street 10-20 clicks
Spring preload 2 mm
Shock absorber length 497mm
Spring
Spec H180, ID65, 70 N/mm
The actual vehicle height
With both the preload and height adjustments in
their standard positions, the vehicle is lowered
approximately 20 mm when compared to the
original suspension. As the height adjuster is
turned one rotation, the position moves 2.0 mm.
The adjustment range is the standard position
-7 to +15 mm.
③
Spring
preload
adjuster
Rebound
adjuster
Part no. VWS 5I10_0
Issued 2013-03-08
Before installing this product, check the contents
of the kit. If anything is missing, please contact an
Öhlins dealer.
Kit Contents
Shock absorber
Dust boot
Upper spring seat
Spring
Lock nut M14
Washer
Spacer
USED FOR BOTH FRONT AND REAR
C-spanner
Öhlins sticker
Öhlins Owner's Manual
Please note that during storage and transportation,
especially at high ambient temperature, some of
the oil and grease used for assembling may leak
and stain the packaging. This is in no way
detrimental to the product, wipe off the excess
oil/grease with a cloth.
Before installing this product, read the Öhlins
Owner's Manual. The shock absorber is an
important part of your vehicle and will affect the
stability.
Shock Absorber Kit for VW Golf Ⅵ , Scirocco (5K1,137)
VWS MI10
Pcs.
2
2
2
2
2
2
2
2
1
1
front
