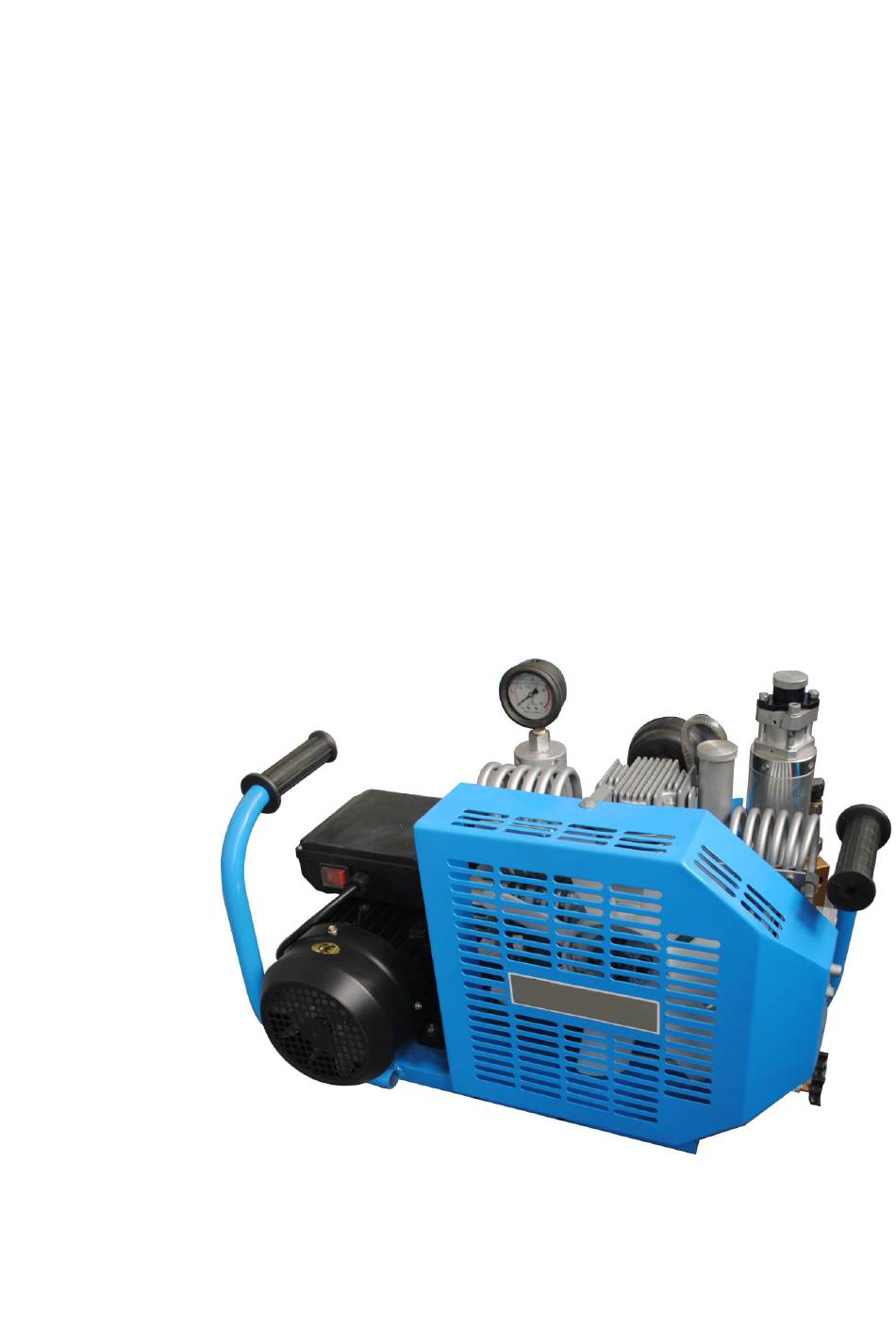

Page 1 High Pressure Breathing Air Compressors NAUTILUS MINI...
Page 2 This manual contains operating instructions and maintenance schedule for the high pressure breathing air compressor unit NAUTILUS MINI NAUTILUS MINI series are newly designed high pressure air compressor to compress air for breathing. It comes in 3 different model variations: •...
Page 3 2. CONTACTS AND CORRESPONDANCE We are happy to give you advice on any question regarding your NAUTILUS compressor and help as soon as possible with any arising problems. Do you want to order spare parts? Do you have problems with maintenance or repair work? Feel free to contact us.
Page 4: Safety Measures
3. SAFETY MEASURES IDENTIFYING THE SAFETY NOTICES Important instructions concerning with possible endangerment of personnel, technical safety, and operating safety will be specially emphasized and highlighted in the manual with the use of the following signs. DANGER This notice must be complied with in order to avoid damage to or destruction of the machine or its equipment.
Page 5: Warning Labels
NOTES AND WARNING LABELS WARNING LABELS DESCRIPTION WARNING DESCRIPTION LABELS Hot surface, do not Removal of safety devices touch! prohibited High Voltage Work on moving parts prohibited Risk of hand crushing Smoking Prohibited Danger of moving parts Gloves Compulsory Flammable Goggles Compulsory - 5 - | P a g e...
Page 6 Instruction must be read Helmet Compulsory by person operating the machinery - 6 - | P a g e Edition December 2014...
Page 7 NAUTILUS MINI COMPRESSOR OPERATION IN BRIEF • Read instruction manual before operating the unit. • Check oil level on compressor and petrol engine before operating unit. • Turn on the machine and ensure the direction of motor rotation is correct.
Page 8: Important Reminder
NAUTILUS MINI IMPORTANT REMINDER • Always ensure the charging pressure in below maximum pressure of gas cylinder. • Always check the oil level before operating the machine, • If any odd noise is produced, immediately stop the machine for inspection.
Page 9: Compressor Design
NAUTILUS MINI 4. COMPRESSOR DESIGN The main parts of the compressor are made up of: motor (electrical), multi-stage condenser, oil & water separator housing, air filtration housing, pressure display, pressure control and pressure safety mechanism. Electric Label Component High pressure gauge...
Page 10 NAUTILUS MINI Petrol Label Component Exhaust Air filter Tank Throttle lever Choke lever Engine stop switch (ignition) Starter rope Safety valve, final pressure High pressure gauge Air intake Compressor oil pipe Filtration system Condensate drain taps - 10 - |...
Page 11 NAUTILUS MINI Label Component Final pressure safety valve Filling valve with pressure gauge Filling hose International filling connector Filtration system Pressure maintaining valve Condensation drain tap Air filter Petrol Tank Exhaust High pressure gauge V-belt cover - 11 - |...
Page 12: Air Flow Diagram
Finally, the compressed air passes through the pressure maintenance valve to produce clean, pure and odorless air. Figure 2: Compressor block NAUTILUS MINI - 12 - |...
Page 13: Technical Data
NAUTILUS MINI TECHNICAL DATA NAUTILUS MINI Petrol Model No. NAUTILUS MINI Electric drive drive Layout Three stage compression reciprocating active piston Delivery Rate L/min Output Pressure 225 / 330 Bar Drive Electric Motor Petrol Motor R.P.M 2000 2000 2000 Power 2.2kW 3 phase...
Page 14 NAUTILUS MINI 5. LOCATION, SAFETY, OPERATION, BOTTLE FILLING LOCATION Keep unit away from flammable items. Do not smoke while petrol tank is open and while unit is in operation. • Compressor should be parallel to the floor. Maximum allowable inclination is 5 degrees to ensure effective lubrication and operation.
Page 15: Operation
NAUTILUS MINI If power supply cable is to be replaced, only use cable of the same type. • The compressor needs to be earth effectively. OPERATION All compressor units are tested prior to delivery to the customer, so after correct installation of the unit there should be no problem putting it into operation.
Page 16 NAUTILUS MINI Instruction before start up Pour in suitable compressor oil into the unit. Check the compressor oil level. The level should be around the middle line position (Refer to picture below) Figure 3: Position to check compressor oil Figure 4: Compressor oil positions Check and ensure that the oil level is between maximum and minimum line.
Page 17 NAUTILUS MINI Check the triangle belt’s tension and all the connected parts for signs of loosening. In order to start up and equipment, open up the oil water separator condensate drain valve and air filtration condensate drain valve. (Refer to the figure below) Figure 5: Opening of condensate drain valves Check if the rotational direction of the mechanical belt follows the right direction.
Page 18: Bottle Filling
NAUTILUS MINI BOTTLE FILLING Filling hoses must be in satisfactory condition and threads undamaged. Pay particular attention to damage on the interface from hose fitting to hose. If the rubber is scored, hose must be discarded otherwise water can enter and attack wire gauze casing it to rust and thus endangering pressure tightness Only use accredited air bottle with pressure indication.
Page 19 NAUTILUS MINI Do not disconnect charging hose before purging the pressure in the compressor. How to deal with emergencies during air filling If emergencies happened during the charging process • Power failure • Power cutoff due to overload • Sudden halt of compressor 1.
Page 20: Maintenance And Repair
• The drive belt must be replaced annually or every 1000 working hours of the compressor. • If the tension of the new belt still fails to comply with the necessary requirement, contact Nautilus customer service. - 20 - |...
Page 21 NAUTILUS MINI Changing of air filter • After putting the compressor into service the intake filter must be changed after the first 25 working hours. • The air filter must then be changed every 100 working hours or annually. •...
Page 22 NAUTILUS MINI Instructions to change filtration cartridge 1) For changing of filter cartridge, use customized tools and rotates following the anti-clockwise direction to remove the filter. 2) Use fingers to hook onto the filter cartridge unit. Pull it up to remove and change into the new filter cartridge.
Page 23: Troubleshooting
NAUTILUS MINI Purging condensate Purge once for every 10 – 15 minutes • The compressor oil released from the separator of each stage goes through condensation and form water emulsion. • Periodically after charging (10 – 15 minutes), the condensate drain valve needs to be open.
