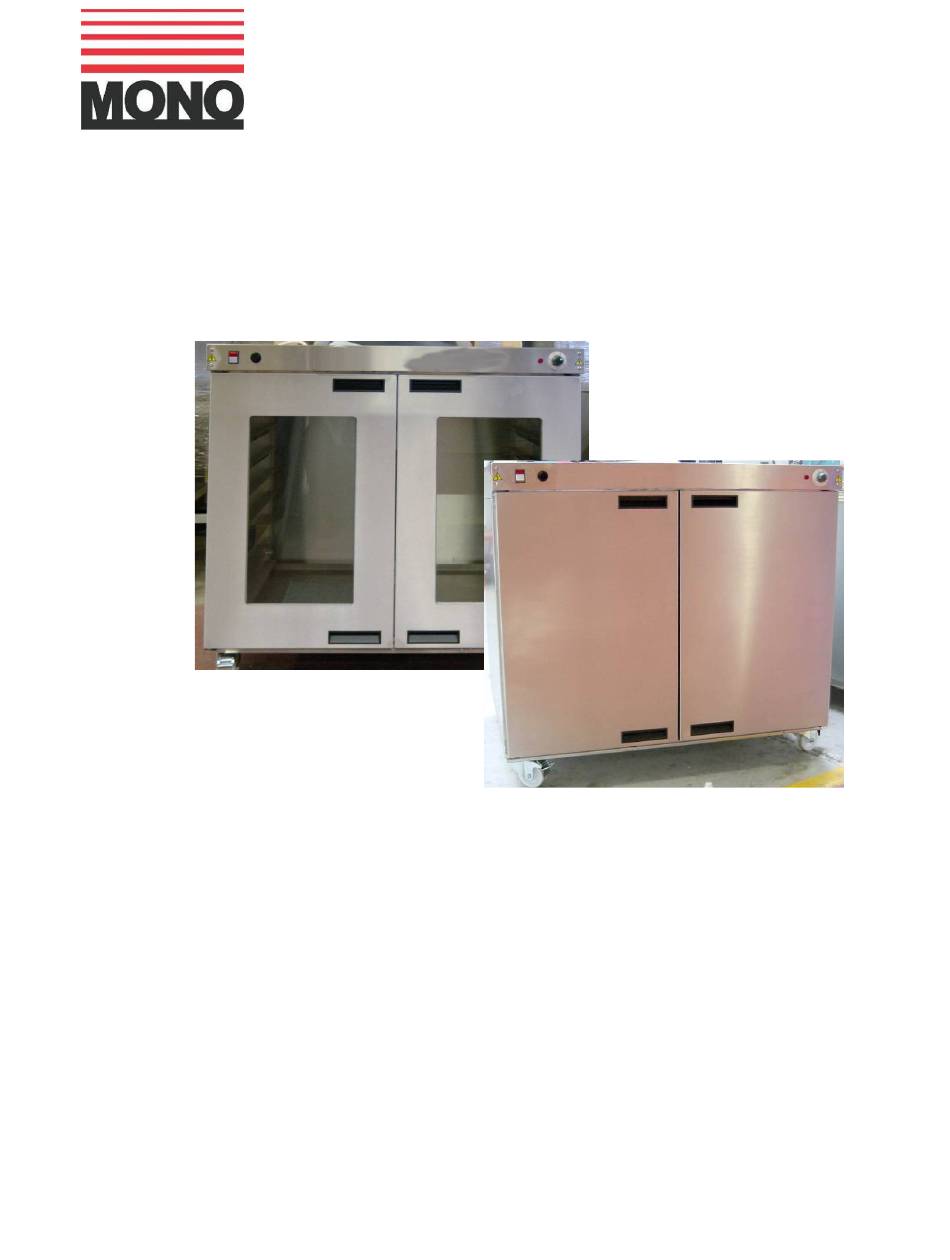

- Page 1 Enter Serial No. here.____________________________ In the event of an enquiry please quote this serial number. www.monoequip.com OPERATING AND MAINTENANCE MANUAL FG177 PROVER CABINET FG177 PROVER RevB17 04-04-17...
- Page 2 FG177 PROVER RevB17 04-04-17...
- Page 3 PLACE, EITHER BY RECYCLING OR OTHER MEANS OF DISPOSAL THAT COMPLIES WITH LOCAL REGULATIONS. (IN UK, ENVIRONMENTAL PROTECTION ACT 1990 APPLIES) As it is our policy to improve our machines continuously, we reserve the right to change specifications without prior notice. FG177 PROVER RevB17 04-04-17...
- Page 4 Section - 6.0 Isolation Section - 7.0 Cleaning Instructions Daily Weekly Section - 8.0 Operating Conditions Section - 9.0 Operating Instructions Section - 10.0 Trouble shooting Section - 11.0 Spares Information Section - 12.0 Electrical Information FG177 PROVER RevB17 04-04-17...
- Page 5 1.0 INTRODUCTION This Mono prover forms part of a complete oven and prover combination. It can be supplied as the stand of a bake off oven, making it space saving, or on its own as a free standing piece of equipment under a worktop etc.
- Page 6 2.0 OVERALL DIMENSIONS SINGLE DOOR HEIGHT: 900mm DEPTH: 1065mm WIDTH: 780mm DOUBLE DOOR HEIGHT: 930mm DEPTH: 850mm WIDTH: 1000mm FG177 PROVER RevB17 04-04-17...
- Page 7 Double element = 230v, 1 ph, 50hz, 2kw, 8.8amps Weight: Single element = 80kg Double element = 110kg Noise Level: Less than 85 dB. As it is our policy to improve our machines continuously, we reserve the right to change specifications without prior notice. FG177 PROVER RevB17 04-04-17...
- Page 8 Customers operating the prover in hard water areas must ensure that an efficient water treatment device protects the water supply to the prover. --MONO is happy to advise on a suitable unit-- While the prover is in operation, and for some time after use, it is inadvisable to touch the underside or lower surrounds because of conducted heat.
- Page 9 Although the utmost care is taken during assembly and pre-delivery inspection, there is always a possibility of residue settling in the prover. FG177 PROVER RevB17 04-04-17...
- Page 10 6.0 ISOLATION To stop the prover in an emergency, switch off at the wall isolator. FG177 PROVER RevB17 04-04-17...
- Page 11 Remove the water tray in the bottom and clean the floor of the prover. Be careful not to bend the exposed element. Replace the water tray carefully. Regularly check the castors are free running and wash with soapy water to release the wheels if needed FG177 PROVER RevB17 04-04-17...
- Page 12 It is the customer’s responsibility to install and maintain an adequate water supply. Customers operating the prover in hard water areas must ensure that an efficient water treatment device protects the water supply to the prover. --MONO is happy to advise on a suitable unit-- FG177 PROVER RevB17 04-04-17...
- Page 13 9.0 OPERATING INSTRUCTIONS CONTROLS POWER WATER HEAT TEMPERATURE ON/OFF SUPPLY CONTROL INDICATOR LIGHT SETTING TIMER CONTROL (WHEN FITTED) FG177 PROVER RevB17 04-04-17...
- Page 14 Check the water level every hour when the prover is in use and top up using water supply button (2) when required. NOTE IN ORDER TO MAINTAIN THE HUMIDITY LEVEL WITHIN THE CABINET,THE DOOR SHOULD BE ONLY OPENED BRIEFLY DURING USE. FG177 PROVER RevB17 04-04-17...
- Page 15 Set the timer to required settings as follows: NOTE IN ORDER TO MAINTAIN THE HUMIDITY LEVEL WITHIN THE CABINET.THE DOOR SHOULD BE ONLY OPENED BRIEFLY DURING USE. FG177 PROVER RevB17 04-04-17...
- Page 16 TIMER SETTING FG177 PROVER RevB17 04-04-17...
- Page 17 Humidity will vary if door is opened frequently or the prover has not warmed up enough at the start of operation. Humidity will also vary according to the amount of product in the prover. Please take account of these factors. FG177 PROVER RevB17 04-04-17...
- Page 18 To reset the stat, the rear panel must be removed (4 screws). Press the reset button and replace the back panel before turning the power back on. REAR VIEW WITH BACK SHEET REMOVED RESET BUTTON POSITION RESET BUTTON FG177 PROVER RevB17 04-04-17...
- Page 19 SPARES and OVERSEAS SUPPORT: MONO Queensway Swansea West Industrial Estate Swansea. SA5 4EB UK email:spares@monoequip.com Web site:www.monoequip.com Tel. 01792 561234 Fax. 01792 561016 FG177 PROVER RevB17 04-04-17...
- Page 20 12.0 ELECTRICAL INFORMATION FG177 PROVER RevB17 04-04-17...
- Page 21 FG177 PROVER RevB17 04-04-17...
- Page 22 Queensway, Swansea West Industrial Park, Swansea, SA5 4EB UK Tel. 01792 561234 Fax. 01792 561016 Email: mono@monoequip.com www.monoequip.com As it is our policy to improve our machines continuously, we reserve the right to change specifications without prior notice. FG177 PROVER RevB17 04-04-17...
