Summary of Contents for USR IOT USR-WP1
- Page 1 USR-WP1 User Manual www.usr.so LonHand Series Product Specification USR-WP1 Ver: V1.2 Jinan USR IOT Technology Limited 1 / 25 tec@usr.cn...
-
Page 2: Table Of Contents
3、 Instructions for Use ......................14 3.1 Hardware Instructions ......................14 3.2 Connect the wireless router via Webpage configuration ..............14 3.2.1 The configuration process of USR-WP1+WINXP ..............14 3.2.2 USR-WP1 smartphone configuration process ..............17 4、 LonHand of Windows Introduction .................... 20 Contact Information........................ -
Page 3: 1、Quick Start
Android 1.1 WLAN Control Operation 1. Connect Smartphone to USR-WP1’s wireless network Open the settings, find USR-WP1 in WLAN, connected to the network, as shown below. 2. Open LonHand software Click the icon to start the software, click Start. Jinan USR IOT Technology Limited 3 / 25 tec@usr.cn... - Page 4 USR-WP1 User Manual www.usr.so 3. Control menu Enter the equipment list, find the USR-WP1, click the USR-WP1 tab, enter into the control menu. 4. Control Test Jinan USR IOT Technology Limited 4 / 25 tec@usr.cn...
-
Page 5: Equipment Network Settings
USR-WP1 User Manual www.usr.so User can control the USR-WP1 now.Via click the switch button，User can open or close the output.User can simply experience the control by smartphone, The following will be a detailed introduction. 1.2 Equipment Network Settings 1. Open LonHand software，refresh the equipment list，Long press equipment information icon, select Web config. - Page 6 The web Webpage default is Chinese Webpage, users can click on the English to switch to the English Webpage。 3. Click Scan router to get the router information list, and then select the router which want to connect, click sure. Jinan USR IOT Technology Limited 6 / 25 tec@usr.cn...
- Page 7 USR-WP1 User Manual www.usr.so 4. Input router passwords, save it, and then restart. 5. WP1 will connect to the router automatically after restart, the blue indicator will light up. Jinan USR IOT Technology Limited 7 / 25 tec@usr.cn...
-
Page 8: Remote Control
1. After WP1 connected to the router, please let mobile phone also connect to the same router. Select the user center in LonHand software, regist remote control account, and then login in. 2. Return device interface, refresh the list of equipment, can see the USR-WP1 equipment. Long press equipment information icon, click activate. - Page 9 3. After activate the device, click get activated devices in the user center. Then disconnect the wireless network, using 2G/3G Internet,, refresh the equipment list, you can see the device icon into a remote icon, now you can control the devices via internet. Jinan USR IOT Technology Limited 9 / 25 tec@usr.cn...
-
Page 10: 2、Product Introduction

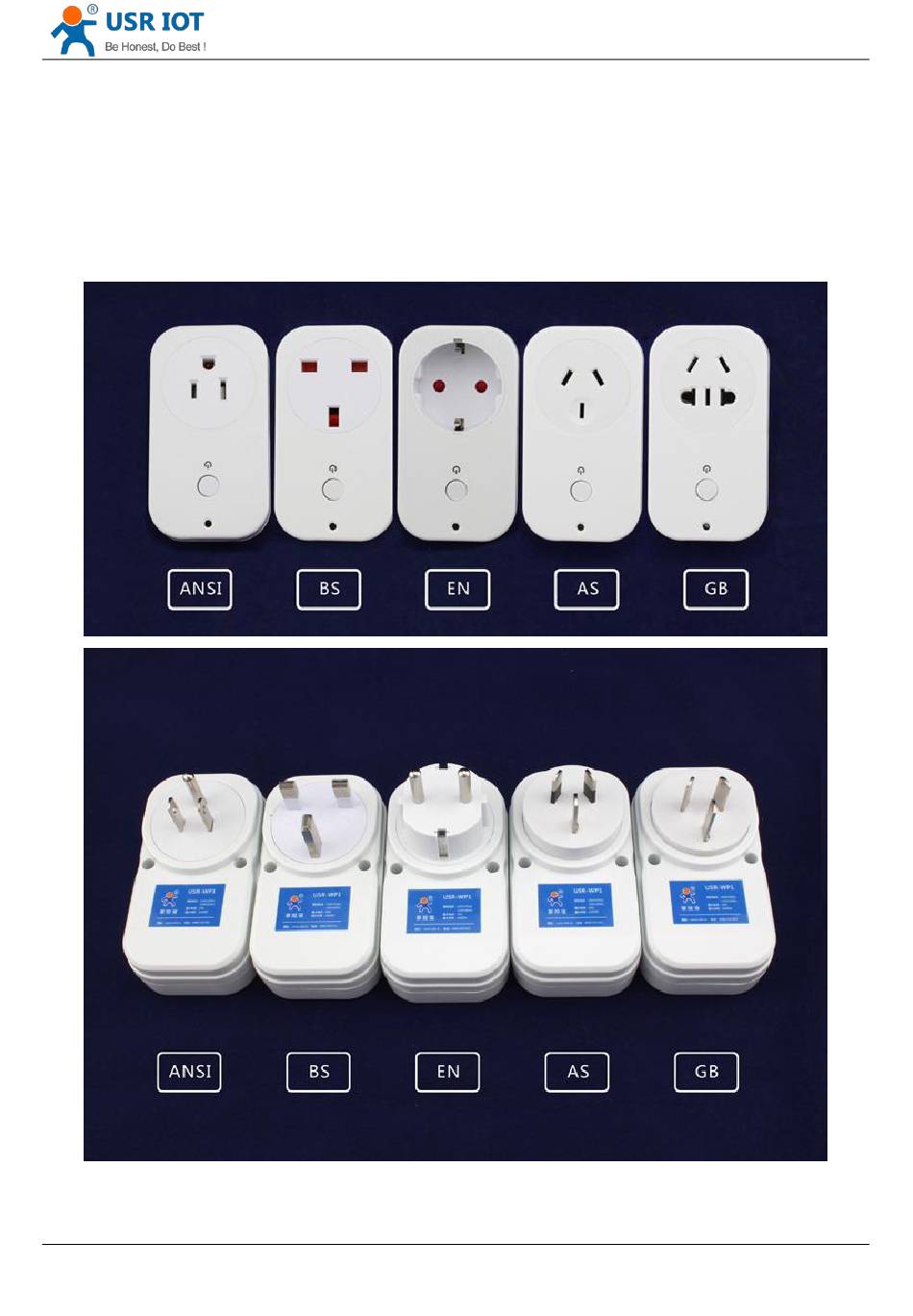

2、Product Introduction 2.1 Product Description The USR-WP1 power outlet whose relays can be switched on or switched off by remote control, is WIFI branch of LonHand series product, and is designed for smart-home application. LonHand series control terminals are developed for the application in the field of smart home, Internet of Things, industrial controlling and so on. -
Page 11: Indicator And Key Function Introduction
Long press(15~20s): Release the key when the red indictor light three times flashing, the device will return to factory settings, after 8~10s, the device information will be the default settings. Jinan USR IOT Technology Limited 11 / 25 tec@usr.cn... -
Page 12: Smartlink Instructions
SmartLink working mode, the blue indicator lights is flashing, device is waitting for the configuration. 3. Click the connect button LonHand software, start network configuration,the blue indicator light will become slow flash in the configuration process. Jinan USR IOT Technology Limited 12 / 25 tec@usr.cn... -
Page 13: Wps Instructions
WPS signal within 1 minutes, will end configuration. 4. When the blue indicator light lighting stably, the network configuration is success, mobile phone will be prompted to configure the success. if failed configuration after 45s, device will restart. Jinan USR IOT Technology Limited 13 / 25 tec@usr.cn... -
Page 14: 3、Instructions For Use
3、Instructions for Use 3.1 Hardware Instructions USR-WP1 starts work after the power supply 3~6 seconds. Now you can open or close the socket switch (see product diagram) by the key. Short press the key, the socket power on, press again, the socket power off. - Page 15 USR-WP1 User Manual www.usr.so Picture.5 Connect to WP1 3. Open the Website of WP1,IP address: 10.10.100.254. Picture.6 Login the web 4. Input the account and password, default: admin,admin. Jinan USR IOT Technology Limited 15 / 25 tec@usr.cn...
- Page 16 Picture.7 Enter the web 5. Click Scan router to get the router information list, and then select the router which want to connect, click sure。 Scan router Picture.8 6. Input router passwords, save it. Jinan USR IOT Technology Limited 16 / 25 tec@usr.cn...
-
Page 17: Usr-Wp1 Smartphone Configuration Process
USR provides the control software of Android and IOS system,the following described the configuration process via android mobile phone as an example. 1. Connect Smartphone to USR-WP1’s wireless network Open the settings, find USR-WP1 in WLAN, connected to the network, as shown below Jinan USR IOT Technology Limited 17 / 25... - Page 18 USR-WP1 User Manual www.usr.so Picture.11 Connect to WP1 2. Open LonHand software. Enter the equipment list, find the USR-WP1, click the USR-WP1 tab, enter into the control menu. Picture.12 Choose web config Jinan USR IOT Technology Limited 18 / 25...
- Page 19 The web Webpage default is Chinese Webpage, users can click on the English to switch to the English Webpage。 Picture.13 Enter website of WP1 The follow steps is similar to computer, can refer to 3.2.1 to continue setup. Jinan USR IOT Technology Limited 19 / 25 tec@usr.cn...
-
Page 20: 4、Lonhand Of Windows Introduction
USR-WP1 User Manual www.usr.so 4、LonHand of Windows Introduction The computer and USR-WP1 socket need to connect to the same router. The detailed operation please refer to the manual of LonHand. 1. Open the LonHand software Picture.14 LonHand interface 2. The software will search WP1 automatically.If you don’t see WP1 in software,please click search again. - Page 21 6. Remote control First,you need to register a user account (account number and the password 4-8 characters, can be numbers, letters, combination of numbers and letters, case sensitive),and then login. Jinan USR IOT Technology Limited 21 / 25 tec@usr.cn...
- Page 22 7. Active WP1 Return device interface, refresh the list of equipment, can see the USR-WP1 equipment. Click ,then click active.After active device success,click Synchronized to local, refresh the equipment list, you can see the device icon into a remote icon, now you can control the devices via internet.
- Page 23 USR-WP1 User Manual www.usr.so Picture.21 Active device Picture.22 Remote control Mobile phone remote control refer to the first chapter or the manual of LonHand. Jinan USR IOT Technology Limited 23 / 25 tec@usr.cn...
-
Page 24: Contact Information
----------------------------------------------------------------------------------- Disclaimer This document provides information about USR-WP1, this document does not grant any license to intellectual property rights. Except the responsibility declared in the product sale clause, USR does not assume any other responsibilities. In addition, USR does not make any... -
Page 25: Update History
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body Update History V 1.0 06-30-2014 First Version V 1.1 07-12-2014 update product features V 1.2 07-25-2014 updated product five kinds of specifications. <END> Jinan USR IOT Technology Limited 25 / 25 tec@usr.cn...
