Gram Precision Z3 Quick Start Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Z3

QUICK START

GUIDE

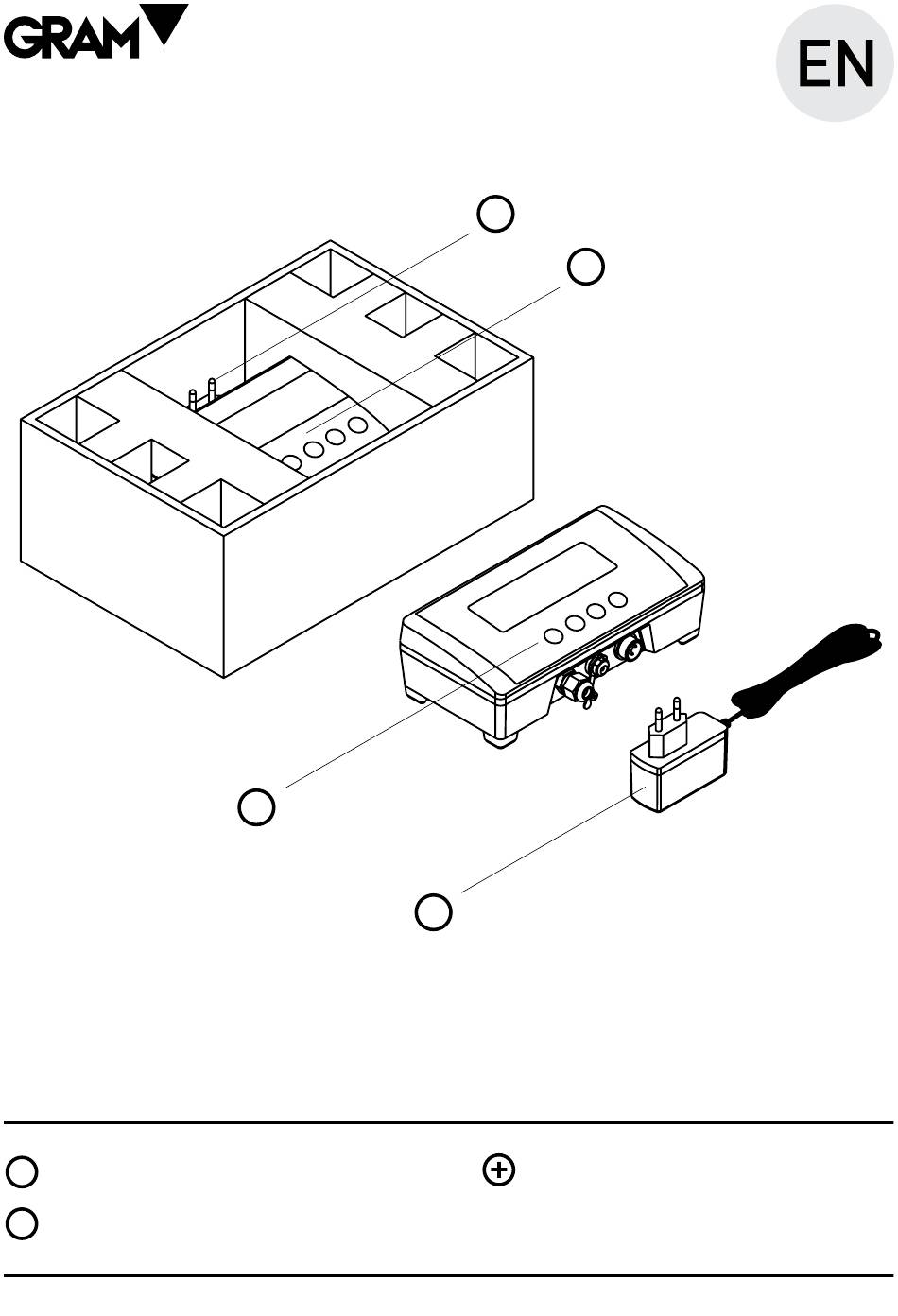

PACKAGING
1 x 220 V/7.5 V DC 1 A mains adapter.
1
1 x Z3 Display.
2
2
1
2
1
Accompanying documentation.

Advertisement

Table of Contents
loading

Related Manuals for Gram Precision Z3

Summary of Contents for Gram Precision Z3

  • Page 1: Quick Start

    QUICK START GUIDE PACKAGING 1 x 220 V/7.5 V DC 1 A mains adapter. Accompanying documentation. 1 x Z3 Display.

  • Page 2: Button Functions

    BUTTON FUNCTIONS PRESS ONCE PRESS TWICE PRESS AND HOLD “Clear”: Clears the tare, cancels “hold” mode Switches the display on/off. and resets the total accumulated weight. Tare: This may be “normal tare” or “preset tare” depending on the operating mode selected.

  • Page 3: Keyboard And Display

    KEYBOARD AND DISPLAY BASIC FUNCTIONS Switches the device on/off. If the button is held down for more than 2 seconds, it acts as an off/on switch. Tare a container or object Place an object or container on the platform and wait until the display indicates a stable reading. Press the tare key and check that tare is shown on the display;...
  • Page 4 MENU MAP OF SCALE CONFIGURATION validate the displayed NEnu option Go back without changes Change to the next option A-OFF 1h30N Factory setting Bl-On AUTO BEEP TARE TARE A-TAR T-STB hOLd LOCk bAudr 9600 19200 38400 57600 rS232 S-NODE PRInt COnt StAb tIcKt...

  • Page 5: Setup Menu Options And Settings

    SETUP MENU OPTIONS AND SETTINGS NENU For enter the setup menu hold for 2 seconds the key . The display will show the message for half a second indicating that the display will show the menu options for setup the scale behaviour. In mode “menu”, the indicator buttons , , .
  • Page 6 G-SET Gravity adjustment depending on geographic location of the scale: G-COR Correction ON / OFF (you can decide whether activate the geographical adjustment). OFSET Geographic location code (see table below). OFSET Manual input (keyboard) of the initial zero (ADC counts). SPAn Manual input of the scale span slope, 5 digits.
  • Page 7 TABLE OF GEOGRAPHICAL ADJUSTMENT VALUES...

  • Page 8: Load Cell Connection

    SENSE + MORE INFORMATION Download the full manual from the following link: http://gram-group.com/wp-content/uploads/2016/12/MANUAL_Z3_2016_ENG_001.pdf Gram Precision S.L. Travesía Industrial, 11 · 08907 Hospitalet de Llobregat · Barcelona (Spain) Tel. +34 902 208 000 · +34 93 300 33 32 Fax +34 93 300 66 98 gram.es...
