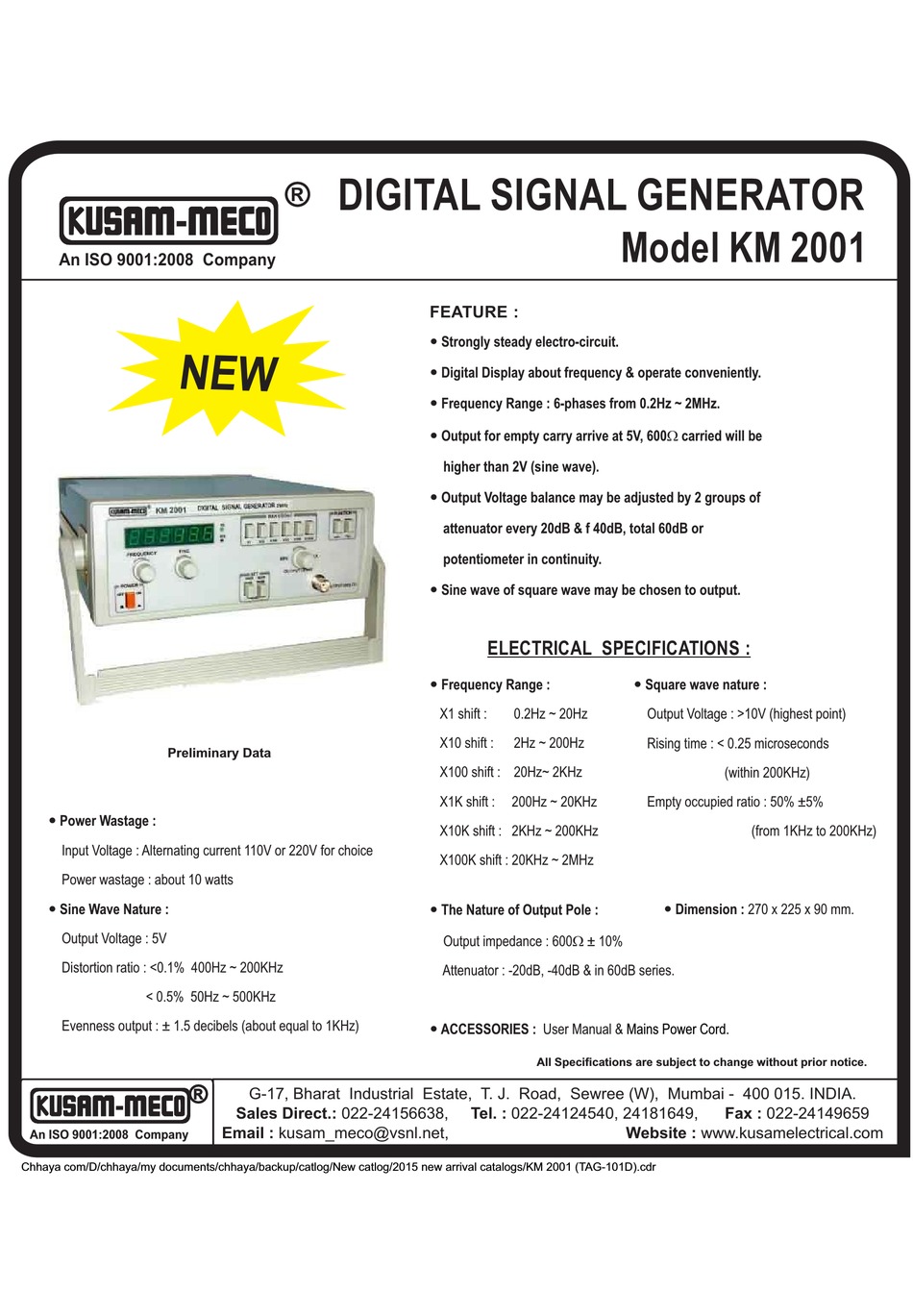

Kusam-meco KM 2001 Operation Manual

Low frequency digital signal generator

Advertisement

Quick Links

An ISO 9001:2008 Company
Preliminary Data
— Power Wastage :
Input Voltage : Alternating current 110V or 220V for choice
Power wastage : about 10 watts
— Sine Wave Nature :
Output Voltage : 5V
Distortion ratio : <0.1% 400Hz ~ 200KHz
< 0.5% 50Hz ~ 500KHz
Evenness output : ± 1.5 decibels (about equal to 1KHz)
®
An ISO 9001:2008 Company
Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2015 new arrival catalogs/KM 2001 (TAG-101D).cdr
DIGITAL SIGNAL GENERATOR
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022-24156638,
Email : kusam_meco@vsnl.net,
FEATURE :
— Strongly steady electro-circuit.
— Digital Display about frequency & operate conveniently.
— Frequency Range : 6-phases from 0.2Hz ~ 2MHz.
— Output for empty carry arrive at 5V, 600W carried will be
higher than 2V (sine wave).
— Output Voltage balance may be adjusted by 2 groups of
attenuator every 20dB & f 40dB, total 60dB or
potentiometer in continuity.
— Sine wave of square wave may be chosen to output.

ELECTRICAL SPECIFICATIONS :

— Frequency Range :
X1 shift :
0.2Hz ~ 20Hz
X10 shift :
2Hz ~ 200Hz
X100 shift : 20Hz~ 2KHz
X1K shift :
200Hz ~ 20KHz
X10K shift : 2KHz ~ 200KHz
X100K shift : 20KHz ~ 2MHz
— The Nature of Output Pole :
Output impedance : 600W ± 10%
Attenuator : -20dB, -40dB & in 60dB series.
— ACCESSORIES : User Manual &
All Specifications are subject to change without prior notice.
Tel. : 022-24124540, 24181649,
Model KM 2001
— Square wave nature :
Output Voltage : >10V (highest point)
Rising time : < 0.25 microseconds
(within 200KHz)
Empty occupied ratio : 50% ±5%
(from 1KHz to 200KHz)
— Dimension : 270 x 225 x 90 mm.
Mains Power Cord.
Fax : 022-24149659
Website : www.kusamelectrical.com
