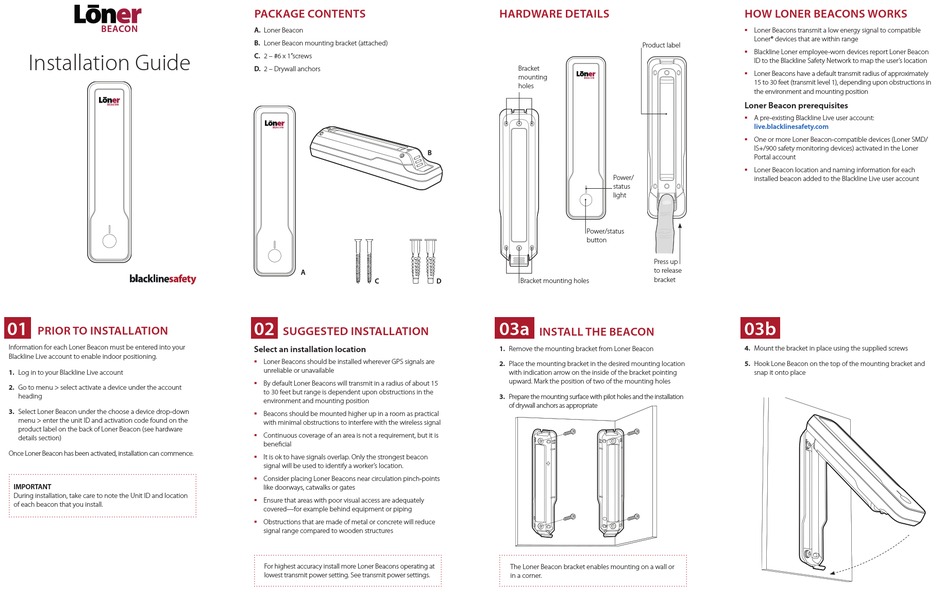

Blackline Safety Loner Beacon Installation Manual

Installation Guide

01
PRIOR TO INSTALLATION
Information for each Loner Beacon must be entered into your
Blackline Live account to enable indoor positioning.
1. Log in to your Blackline Live account
2. Go to menu > select activate a device under the account
heading
3. Select Loner Beacon under the choose a device drop-down
menu > enter the unit ID and activation code found on the
product label on the back of Loner Beacon (see hardware
details section)
Once Loner Beacon has been activated, installation can commence.
IMPORTANT
During installation, take care to note the Unit ID and location
of each beacon that you install.
PACKAGE CONTENTS
A. Loner Beacon
B. Loner Beacon mounting bracket (attached)
C. 2 – #6 x 1"screws
D. 2 – Drywall anchors
B
A
C
02
SUGGESTED INSTALLATION
Select an installation location
§ Loner Beacons should be installed wherever GPS signals are
unreliable or unavailable
By default Loner Beacons will transmit in a radius of about 15
§
to 30 feet but range is dependent upon obstructions in the
environment and mounting position
§ Beacons should be mounted higher up in a room as practical
with minimal obstructions to interfere with the wireless signal
§ Continuous coverage of an area is not a requirement, but it is
beneficial
§ It is ok to have signals overlap. Only the strongest beacon
signal will be used to identify a worker's location.
§ Consider placing Loner Beacons near circulation pinch-points
like doorways, catwalks or gates
Ensure that areas with poor visual access are adequately
§
covered—for example behind equipment or piping
Obstructions that are made of metal or concrete will reduce
§
signal range compared to wooden structures
For highest accuracy install more Loner Beacons operating at
lowest transmit power setting. See transmit power settings.
HARDWARE DETAILS
Bracket
mounting
holes
Power/
status
light
Power/status
button
D Bracket mounting holes
03a
INSTALL THE BEACON
1. Remove the mounting bracket from Loner Beacon
2. Place the mounting bracket in the desired mounting location
with indication arrow on the inside of the bracket pointing
upward. Mark the position of two of the mounting holes
3. Prepare the mounting surface with pilot holes and the installation
of drywall anchors as appropriate
The Loner Beacon bracket enables mounting on a wall or
in a corner.
HOW LONER BEACONS WORKS
§ Loner Beacons transmit a low energy signal to compatible
Loner® devices that are within range
Product label
Blackline Loner employee-worn devices report Loner Beacon
§
ID to the Blackline Safety Network to map the user's location
Loner Beacons have a default transmit radius of approximately
§
15 to 30 feet (transmit level 1), depending upon obstructions in
the environment and mounting position
Loner Beacon prerequisites
§ A pre-existing Blackline Live user account:
live.blacklinesafety.com
§ One or more Loner Beacon-compatible devices (Loner SMD/
IS+/900 safety monitoring devices) activated in the Loner
Portal account
Loner Beacon location and naming information for each
§
installed beacon added to the Blackline Live user account
Press up
to release
bracket
03b
4. Mount the bracket in place using the supplied screws
5. Hook Lone Beacon on the top of the mounting bracket and
snap it onto place
