Righton RBM-2401D User Manual

24" 3g waveform monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
24" 3G Waveform Monitor
RBM-2401D User Manual
Ver : 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBM-2401D and is the answer not in the manual?

Questions and answers

Summary of Contents for Righton RBM-2401D

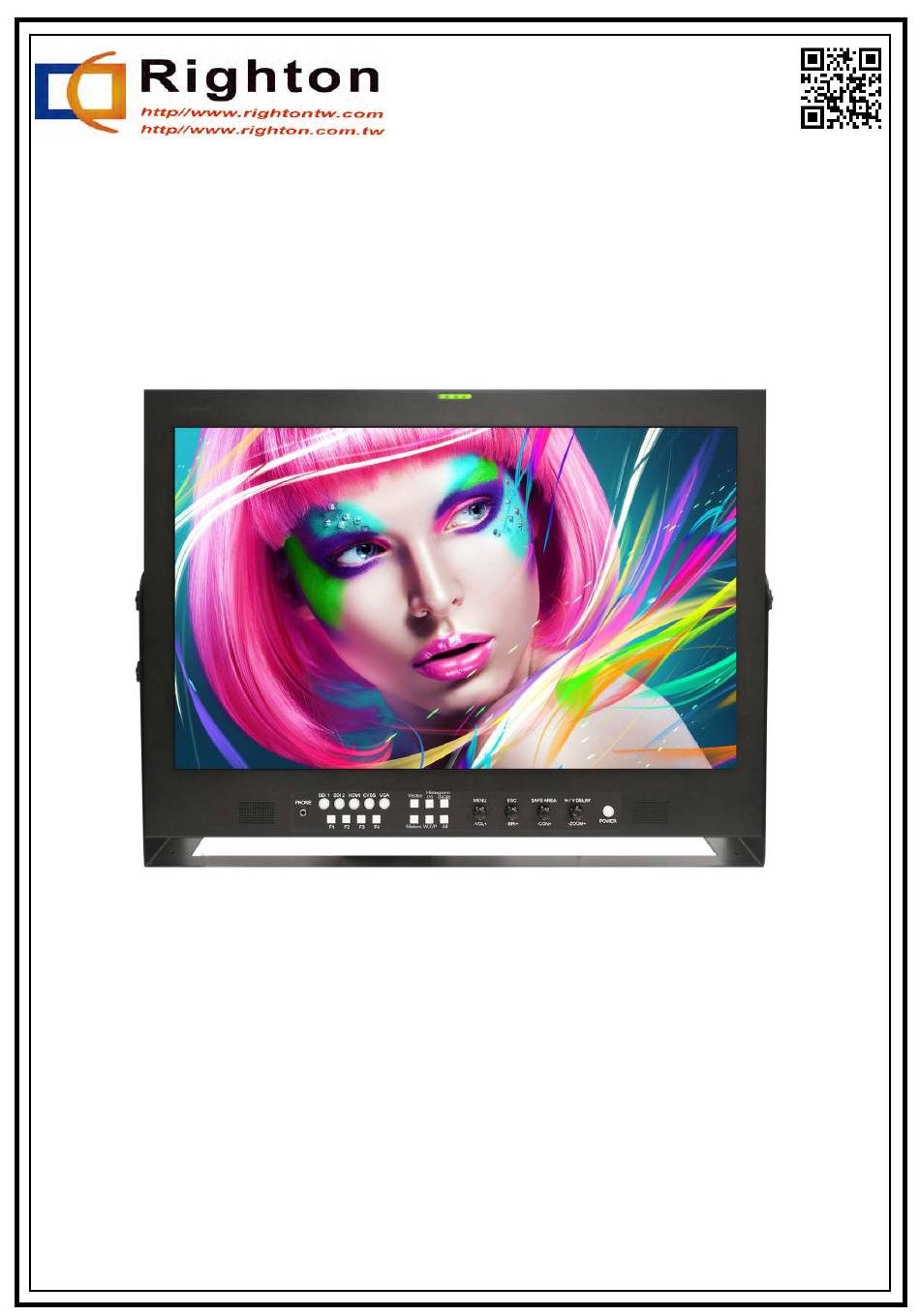

  • Page 1 24" 3G Waveform Monitor RBM-2401D User Manual Ver : 2.0...

  • Page 2: Table Of Contents

    Contents Caution ------------------------------------------------------------ 3 Warranty ---------------------------------------------------------- 4 Specification ----------------------------------------------------- 5 Formats ------------------------------------------------------------ 6 Menu Function --------------------------------------------------------- 7 Controls ------------------------------------------------------------ 8 --------------------------------------------------------------- 8 Front Panel ---------------------------------------------------------------- 10 Shortcuts -------------------------------------------------------------- 11 Rear Panel Auxiliary Function ---------------------------------------------------- 13 External Control ------------------------------------------------------- 19 RS-232 Remote Control ----------------------------------------- --------------------------------22 RJ-45 Remote Control ------------- ---------------------------27...

  • Page 3: Caution

    Caution ● All operating instructions must be read and understood before the product is operated. ● These safety and operating instructions must be kept in a safe place for future reference. ● All operating instructions must be followed. ● Do not use this unit in or near water. ●...

  • Page 4: Warranty

    Warranty ● Equipment is guaranteed against any manufacturing defects for one year from the date of purchase. ● Certain parts with limited lifetime expectancy such as LCD Panels for one year ● The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

  • Page 5: Specification

    Specification - 5 -...

  • Page 6: Formats

    Formats Compatible Resolutions and Formats - 6 -...

  • Page 7: Menu Function

    Menu Function - 7 -...

  • Page 8: Controls

    Controls Front Panel Tally Lamp Tally lamp can be switched to a green light display. The 9 PIN D-SUB Port must be connected. Power On/Off Button Press this POWER button to power on the monitor ( the indicator turns blue), press the button again to turn off the monitor.
  • Page 9 Safe Area Button /CON Knobs Button: Safe Area size includes 70/ 75/ 80/ 85/ 90/ 93/ 96 %. Knobs: Adjusts CONTRAST of image ( 0~100 indication ). ESC Button /BRI Knobs Button: Exit MENU options. Knobs: Adjusts BRIGHTNESS of image ( 0~100 indication ). MENU Button /VOL Knobs Button: Enter MENU options;...

  • Page 10: Shortcuts

    Shortcuts ● The function can be set via the "Shortcuts menu". ● Open the "Shortcuts menu" after the first time, the selected function will remain. ● Use "Shortcuts menu" to assign F1~F4. You can assign the function from among: Check Field, Zebra Switch, Focus Assist, False Color, Pixel To Pixel, Mirror, Freeze, Pattern, Marker Type, Center Marker, Nine Grid, Mute, Scan Mode, Time Code, Anamorphic Format.

  • Page 11: Rear Panel

    Rear Panel SDI 1 IN/OUT (BNC) IN: SDI Signal input terminal that provides SDI 1 signal. (Support 3G/HD/SD) OUT: active through-out is only outputted when SDI 1 is using the input select. SDI 2 IN/OUT (BNC) IN: SDI Signal input terminal that provides SDI 2 signal. (Support 3G/HD/SD) OUT: active through-out is only outputted when SDI 2 is using the input select.
  • Page 12 HDMI IN IN: HDMI Signal input terminal that provides HDMI signal. (Support HDMI 1.3) VGA IN IN: VGA Signal input terminal that provides VGA signal. TALLY Tally light information can be supplied. Control 1 /2 Control (1): External control is possible by using a RS-232 signal. Control (2): External control is possible by using a RJ-45 signal.

  • Page 13: Auxiliary Function

    Auxiliary Function - 13 -...
  • Page 14 Scopes Luminance ( Vector 16~235 Level) Y Histogram RGB Parade(0 ~100 %) Audio RGB Histogram Meter YUV Parade ( 16~235 Level) Time code - 14 -...
  • Page 15 Zebra Exposure Exposure 50 Exposure 0 Focus Assist high False Color - 15 -...
  • Page 16 Check Field Gray only Blue only Red only Green only Pattern - 16 -...
  • Page 17 Marker Display H/V Delay Original H Delay V Delay HV Delay - 17 -...
  • Page 18 Mirror Original hor & ver Nine Grids - 18 -...

  • Page 19: External Control

    External Control RS-232 Remote Control Pin Define RS-232 Remote Control Connection - 19 -...
  • Page 20 RS-232 Remote Control Client Operating 1. Open the "AccessPort.exe " file. (Please download the file from http://www.righton.com.tw) 2. Open" Tools" select "Configuration". Enter the options "Custom Baud Rate" check "Enable" to "Serial Port Settings" confirm the COM port. 3. Choose a file to "Load ": CommandData.txt (Please download the file from http://www.righton.com.tw)
  • Page 21 RS-232 Remote Control Command Data - 21 -...

  • Page 22: Remote Control

    RJ-45 Remote Control Pin Define RJ-45 Remote Control Connection - 22 -...
  • Page 23 Fail: EA 08 00 C0 A8 01 08 9C Operating 1. Open the " UDP Test Tool "file. (Please download the file from http://www.righton.com.tw) 2. Remote IP (192.168.1.9)/ Hostname and UDP Port (7000) 3. Checkbox to send in HEX 4. Enter the need to send a serial command, Press to "send" instructions.
  • Page 24 RJ-45 Remote Control Command Data Board Net Information Router's IP: 192.168.1.1 Netmask: 255.255.255.0 Default Host IP: 192.168.1.8 (This address can be changed through USART or NET cmd.) Port: 7000 Protocol Format NET AND USART USE THE SAME Format: Command: [HEAD] [LEN][CMD] [DATAn…] [CS] Response: 1.
  • Page 25 Protocol Commands DATAn… Data Description (Hex) (Hex) Length C0 A8 01 08 DefaultIP Set Host IP. (Dec) Address (192.168.1.8) Response IP 00:SDI1 Switch channel 01:SDI2 02:HDMI 03:CVBS 04:VGA 00:OFF Check Field 01:Gray 02:Red 03:Green 04:Blue 00:OFF False Color 01:ON 00:OFF Zebra switch 01:ON 00:OFF...
  • Page 26 00:OFF 01:ON Histogram 00:OFF Y Histogram 01:ON 00:OFF Vector 01:ON 00:OFF Audio Meter 01:ON 00:Normal Scan mode 01:Underscan 02:Overscan 00:0FF HV Delay 01:H Delay 02:V Delay 03:H&V Delay 00:OFF Mirror 01:H Mirror 02:V Mirror 03:H&V Mirror 00:OFF Freeze 01:ON 00:OFF Zoom 01:4X 02:9X...

  • Page 27: Tally Control

    Tally Control Pin define Please use D-SUB 9 Pin cable as above Pin-1and Pin-6 circuit. - 27 -...

  • Page 28: Dimension

    Dimension Unit: mm (inches) - 28 -...

  • Page 29: Accessory

    Accessory Standard Accessory - 29 -...

  • Page 30: Optional Accessory

    Optional Accessory - 30 -...
