One Lux ONE-SENSE EXO User Manual

Model: OS EXO
Technical Specifications
Input voltage
Rated load
Detection area
Hold time
Daylight sensor
Sensor principle
Microwave frequency
Transmitting power
Detection range
Detection angle
Motion detection
Operating temperature
IP rating
General Guidelines for Installation
1, Specifications for detection area, detection range and daylight sensor levels are typical, so
suitability should be determined for sensitive applications.
2, The Motion sensor should be installed by a qualified electrician. Ensure the electricity supply is
switched off before installing or servicing the product.
3, The sensor should not be modified in any way. Any modifications mode to this product will
immediately invalidate any warranties issued.
4, The company does not accept responsibility for any consequences resulting from unauthorized
modification of the product.
5, The sensor should be connected to a stable power supply of 220/240Vac 50Hz.
6, Microwaves cannot pass through metal or brick walls if thicker than 20cm. They will pass through
thinner walls but there will be some attenuation.
7, Installation inside a glass or plastic housing will result in a reduction of detection sensitivity.
Expect a reduction of approximately 20% for every 3mm of thickness.
Installation & Wiring
The sensor is designed for installation at 1~6m in height.
Suggested mounting height:
1~1.8m (Wall mounting)
2.5~6m (Ceiling mounting)
Note: L(BLACK) , N(BLUE) ,L'(BROWN)
MICROWAVE MOTION SENSOR USER GUIDE
Model No.: OS/ EXO
220/240Vac 50Hz
400W(Inductive load), 800W(Resistive load)
0.5m ~ 8m, adjustable.
10sec / 30sec / 90sec / 3min / 20min / 30min.
5 lux / 10 lux / 30 lux / 50 lux / Disable.
Microwave motion detector
5.8GHz±75Hz, ISM wave band
<0.5mW (1% of transmitting power for cell phone)
Max. (Ф x h): 16m x 6m.
150° (Wall installation)
360° (Ceiling installation)
0.5 ~ 3m/s.
-20°C - 60°C
IP20
Issue C

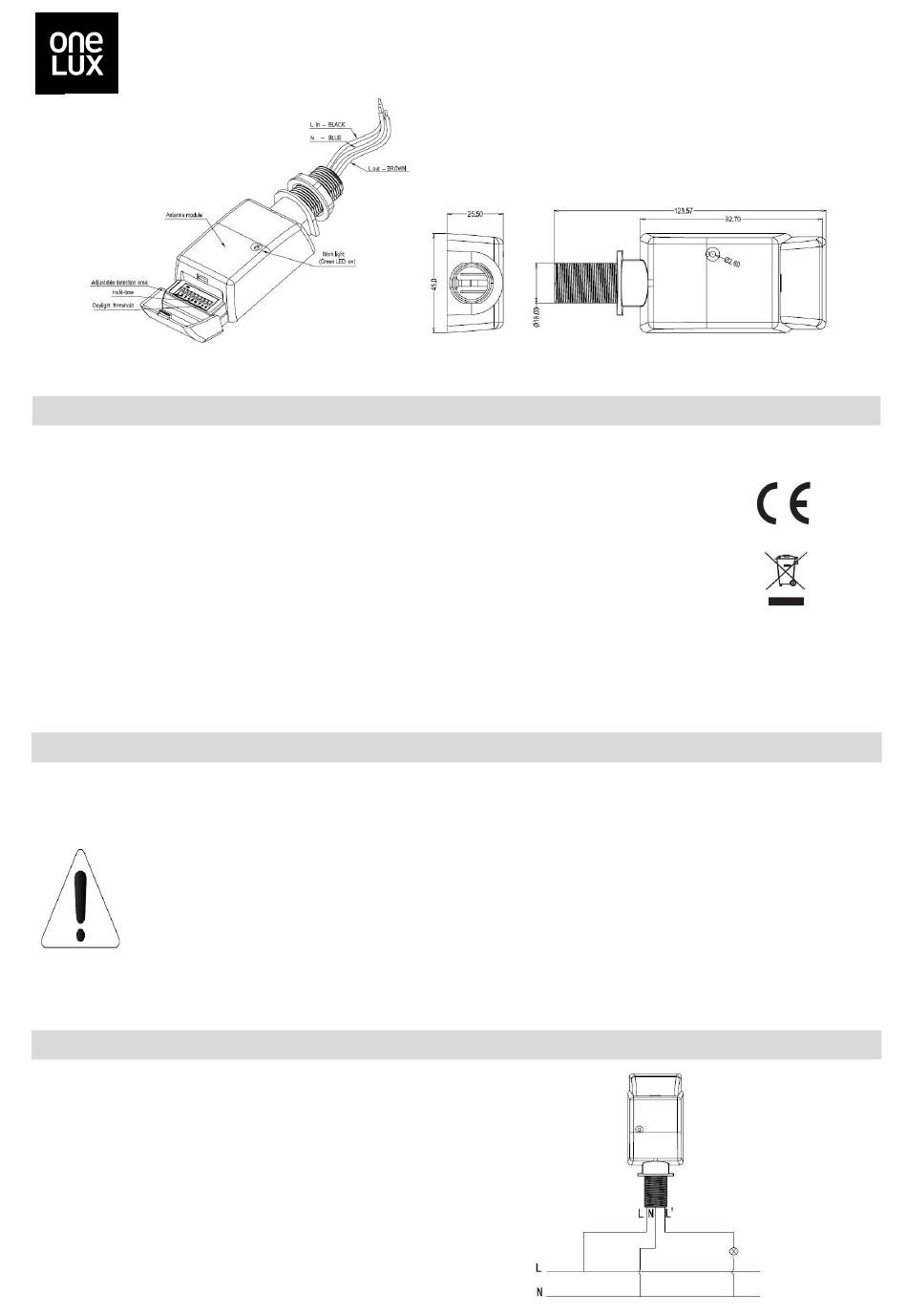

Dimensions (mm)
(Typical)
TUV
1
