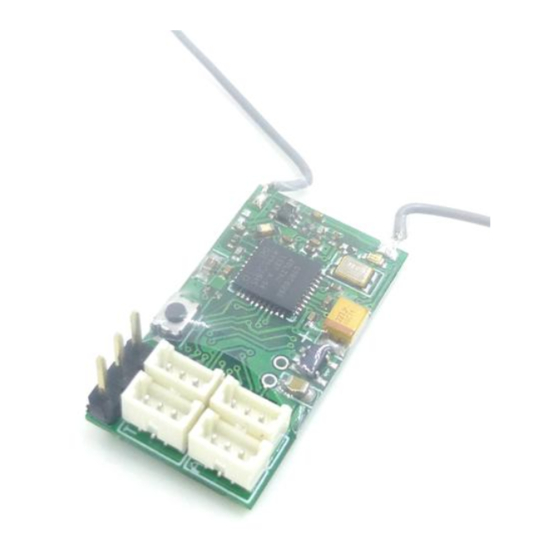

REDCON CM410X DSM2/DSMX PPM Micro Receiver
Receiver Specifications:
Name: CM410X
Channel: 4Channel+ PPM Port
Modulation: DSM2/DSMX
Band: 2.4GHz
Range: 1000M
Dimensions (W x Lx H): 29x 15x4 mm
Weight: 2g
Voltage Range: 3.3-15v （HV）
Brown-Out Voltage: 4.0v (Always supply power above this voltage)
Antenna Length Main RX: 13.5cm (2)
Expected Range: 800m (tested with JR DSX9)
Features
4channels with PPM Out
Patent pending Model Match prevents flying a model using the wrong model memory
(feature does not work with module systems)
Servo Sync (feature does not work with module systems)
Preset failsafe system
Quick Connect
Compatibility (Spectrum and JR DSM2 /DSMX): DX6I,DX7,DX8, DSX7,DSX9 DSX11
Binding Procedure
I. Press bind-button connect power to receiver, please make sure radio in binding process.
Advertisement
Table of Contents
Related Manuals for Redcon CM410X
Summary of Contents for Redcon CM410X
-
Page 1: Receiver Specifications
REDCON CM410X DSM2/DSMX PPM Micro Receiver Receiver Specifications: Name: CM410X Channel: 4Channel+ PPM Port Modulation: DSM2/DSMX Band: 2.4GHz Range: 1000M Dimensions (W x Lx H): 29x 15x4 mm Weight: 2g Voltage Range: 3.3-15v （HV） Brown-Out Voltage: 4.0v (Always supply power above this voltage) Antenna Length Main RX: 13.5cm (2) - Page 2 Surfaces and throttle should return to your preset fail-safe positions. Notes: Only one time bind procedure is required on a new receiver. Repetitive binding provides no extra security. Always remember to remove the binding harness after successful bind is completed. Package including: CM410X Receiver *1 pc...
