Summary of Contents for Show Tec Easy Fade 36

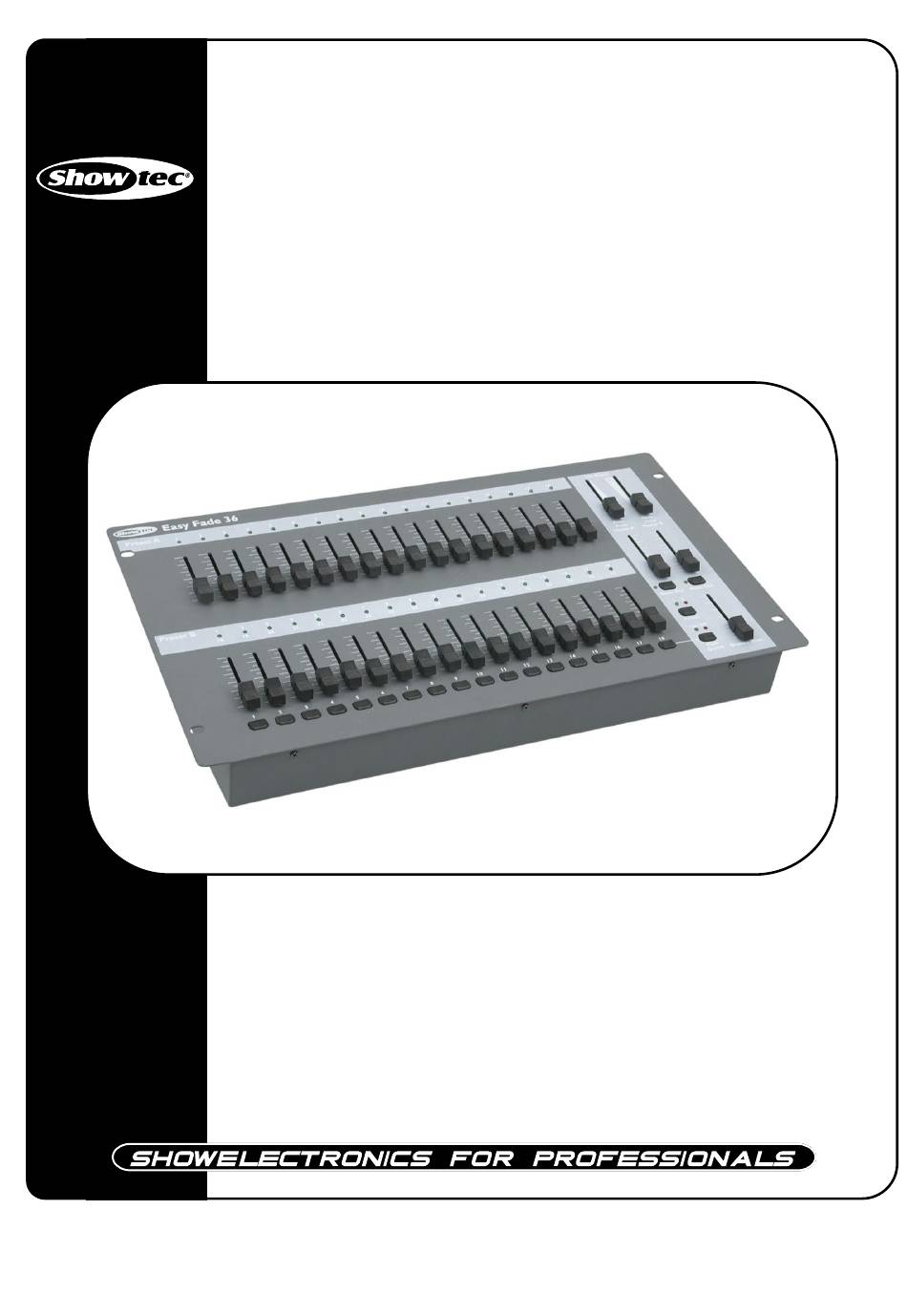

- Page 1 Easy Fade 36 ORDERCODE 50711...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. Showtec Easy Fade 36 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Easy Fade 36 Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Top ....................................6 Backside ..................................7 Installation ................................... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Easy Fade 36 • Incl. Power adapter 1,75m • User manual... -
Page 5: Operating Determinations
Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never remove warning or informative labels from the unit. Never use anything to cover the ground contact. ... -
Page 6: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 7: Description Of The Device

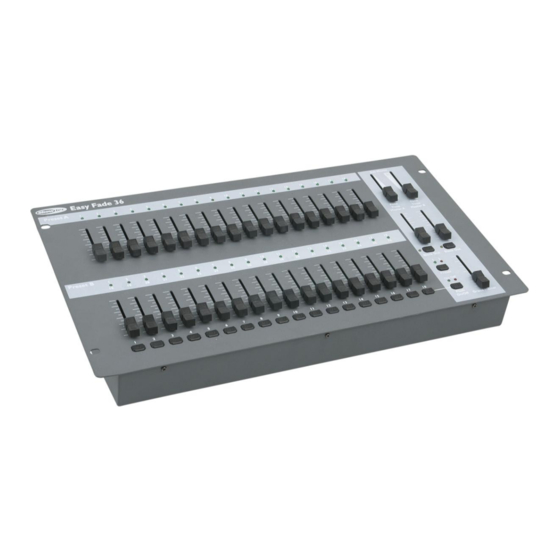

• Can be used either as a double preset 18 channel desk or as a single preset 36 channel desk • Equipped with two Master faders and a grand master • The Easy Fade 36 has no programming facilities in order to keep it simple to use for any user • Power connector: Adaptor included •... -
Page 8: Top
5 6 7 8 Fig. 2 1) Fade Time Master A 2) Fade Time Master B 3) 36x Channel Fader + Flash buttons 1-18. You can only flash Channel 1-18. Faders for adjusting DMX values, Ch 1~36. Universal flash buttons to flash each individual channel. 4) Blackout button + Master Fader A –... -
Page 9: Backside
11) 3-pin DMX output connector Installation Remove all packing materials from the Easy Fade 36. Check that all foam and plastic padding is removed. Screw the equipment into a 19" rack. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 11: Maintenance
5. If nothing happens after 30 seconds, unplug the device. 6. If you are unable to determine the cause of the problem, do not open the Easy Fade 36, as this may damage the unit and the warranty will become void. -
Page 12: Product Specification
• Can be used either as a double preset 18 channel desk or as a single preset 36 channel desk • Equipped with two Master faders and a grand master • The Easy Fade 36 has no programming facilities in order to keep it simple to use for any user • Power connector: Adaptor included •...
