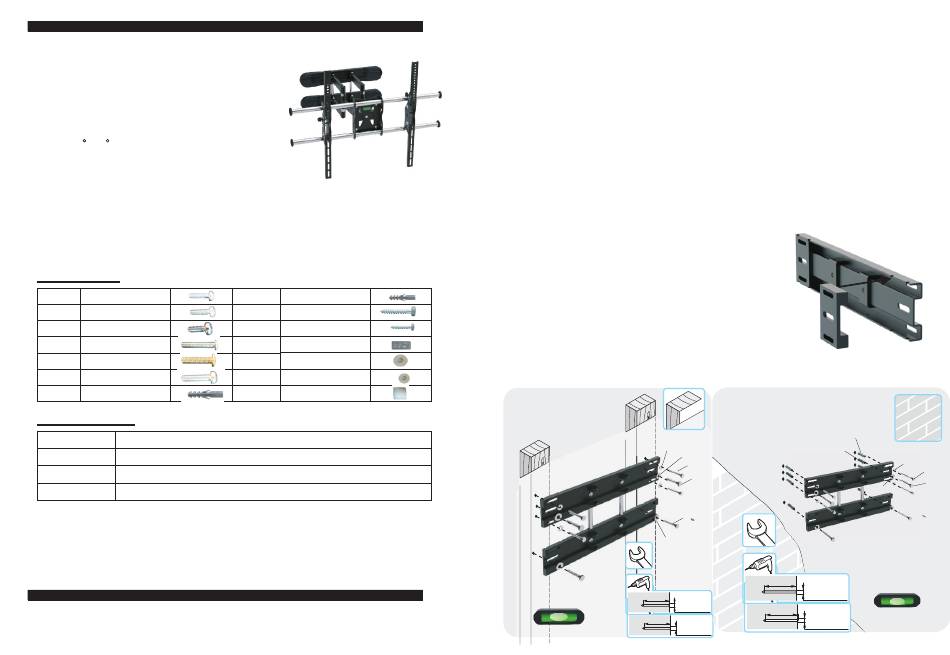

Umount 803B Installation Instruction

Cantilever Flat Panel Bracket
Installation instruction for 803B
TV Size:36 -65" "
Tilt :-5/15
Max Load capacity:132lbs/60kgs
Wall Distance:5.8 -22.8"/147-580mm "
Bubble level system Included
Universal Mounting Pattern
PLASMA MOUNT INSTALLATION AND OPERATION INSTRUCTION
Hardware kit:
(×4) M5×16 screw
A
(×4) M6×16 screw
B
(×4) M8×16 screw
C
(×4) M5×35 screw
D
(×4) M6×35 screw
E
F
(×4) M8×35 screw
G (×4) M8 concrete anchor
Tools Required:
√
Phillips Head Screw driver
√
Stud finder for drywall installation
√
Socket and Wrench
√
Electric drill masonry bit for concrete/brick installation
Note:
1 You need rivet the bubble level system onto the wall plate before installing
2 Please check the two rails before installing,if without the knob as showed, please
first detach the screw and install the knob.
IMPORTANT:If you don't understand how to install the product,
please consult a specialist
H (×2) M6 concrete anchor
(×4) M8 Bolt
I
(×4) M6 Bolt
J
(×4) M8/M6/M5 Washer
K
(×4) M8 Washer
L
M (×4) M6 Washer
(×4) M8 Spacer
N
Step1: Wall plate installation
Wood Stud Installation
NOTE:For secure wood stud mounting,the wall plate must be mounted to two studs at least 16"apart.
1 Use a high-quality electrnic stud finder (commercially available) to locate two adjacent studs and
mark their locations with a pencil.
2 With the help of an assistant, and using the bubble level to ensure the wall plate is level, position
the wall plate against the wall in the desired mounting location.
3 Mark the right, upper and lower and the left (upper and lower) positions of the small horizontal slots
that are in alignment with the studs.
4 You should mark eight positions total as the picture showed.
5 Next, Pre-drill four 3mm hole 30mm deep on the up wall plate for M6 bolt (J) and four 5mm holes
50mm deep for M8 bolt(I) as showed following.
6 please position the wall plate against the wall and line up the mounting slots with drilled holes
For each location, insert a lag bolt (I/J)and washer(L/M)into the wall.
7
8 Tighten bolt with an open ended socket wrench by turning clockwise until tight.
Concrete/Brick Installation
NOTE: The concrete anchors must be used for concrete installation.
1 Begin by placing the wall plate into position against the wall,
using the bubble level to keep it level.
2 Mark off 6 holes to be used for securing the mount and
place the wall plate aside
3 Next , drill holes four 8mm holes 40mm deep(M6 bolt J) and
four 12mm holes 60mm deep (M8 bolt I)
4 Insert a concrete anchor(K)into to reach hole.
5 If necessary, a hammer can be used to lightly tap each anchor
into place so that they are flush with the wall.
6 Once all of the anchors are in place ,move the wall plate back into position.
7 Attch the bolt(I/J) into the anchor(H) that is placed in the wall.
8 Do not tighten until all screws are in plate .
M
L
I
L
(J)M6X80
30mm
3mm
(I)M8X80
60mm
5mm
BALANCE-ADJUSTING
Please add the back cover
firstly as the picture
H
G
J
I
(J)M6X80
40mm
8mm
(I)M8X80
60mm
12mm
M
I
J
L
BALANCE-ADJUSTING
