Summary of Contents for CryopAL Freelox portable 0.5L
- Page 1 FREELOX PORTABLE V4 LEVEL User manual www.cryopal.com...
- Page 2 Copyright 2017 by CryopAL Document code: NH78464 – Revision D July 2017 edition English version Year of obtaining CE marking: 2005 Notified body: LNE GMED All rights reserved. This document may not be reproduced in any form whatsoever, in whole or in part, without written permission from CryopAL.
-
Page 3: Table Of Contents
Table of contents IDENTITY OF MANUFACTURER ------------------------------------------------------------------------------------------------------------------------------------------ 4 SAFETY INFORMATION ---------------------------------------------------------------------------------------------------------------------------------------------------- 4 2.1. ------------------------------------------------------------------------------------------------------------------------------------------------ 4 ENERAL INSTRUCTIONS 2.2. ------------------------------------------------------------------------------------------------------------ 5 ARNINGS RELATED TO ELECTROMAGNETIC INTERFERENCE 2.3. ------------------------------------------------------------------------------------------------------------------------------------------- 5 XYGEN RELATED WARNINGS 2.4. ------------------------------------------------------------------------------------------------------------------------------------------------- 6 ESCRIPTION OF LABELS 2.5. --------------------------------------------------------------------------------------------------------------------------------------- 6 EFINITION OF THE PICTOGRAMS FREELOX PORTABLE DEVICE --------------------------------------------------------------------------------------------------------------------------------------------- 7 3.1. -
Page 4: Identity Of Manufacturer
F - 77607 Marne la Vallée Cedex 3 Tel.: +33 (0)1 64 76 15 00 Fax: +33 (0)1 64 76 16 99 Email: order.cryopal@airliquide.com or maintenance.cryopal@airliquide.com Website: http://www.cryopal.com 2. Safety information Before using the FREELOX PORTABLE device, please read this manual and the following safety instructions carefully. -
Page 5: Warnings Related To Electromagnetic Interference
2.2. Warnings related to electromagnetic interference In order to avoid any risk of interaction with electromagnetic fields that could interfere with the operation of other devices, tests were performed in accordance with the 60601-1-2: 2014 (version 4) standard and the appropriate modifications made. -
Page 6: Description Of Labels
2.4. Description of labels Labels found on the rear casing of the FREELOX PORTABLE Label found near the user supply point 2.5. Definition of the pictograms Manufacturer Category 2 gas BF applied part (degree of electrical Oxidising material protection) Please refer to the instructions in the Refrigerated liquid oxygen UN 1073 manual... -

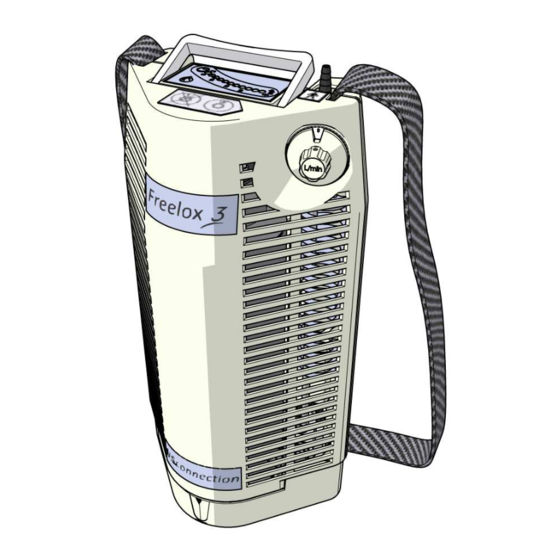

Page 7: Freelox Portable Device
3. FREELOX PORTABLE device 3.1. Presentation of the device The home liquid oxygen system is made up of a stationary oxygen tank (for example, FREELOX RESERVE) and a portable oxygen tank (FREELOX PORTABLE). These are designed to store oxygen in its liquid state at a temperature of -183°C (liquid oxygen is a cryogenic fluid). -
Page 8: Technical Specifications
3.2. Technical specifications Model FREELOX 0.5L FREELOX 1.2L Oxygen therapy for patients suffering from conditions such as Chronic Medical indication Obstructive Pulmonary Disease (COPD), heart failure, pulmonary hypertension Medical Not recommended for life support or organ survival contraindications Performance Delivers oxygen at the flow rate prescribed by the doctor Service life 10 years Substance transported... -
Page 9: Presentation Of The Freelox Portable Range
Presentation of the FREELOX PORTABLE range 3.3. Connection Version Size Product Name codes Electronic V4 0.5L LF136901 FREELOX 3 PORT. 0.5L US HUL V4 Electronic V4 1.2L LF137501 FREELOX 3 PORT. 1.2L US HUL V4 Table 3: Product codes for the FREELOX PORTABLE V4 level range 4. -
Page 10: Storage And Handling Conditions
6. Storage and handling conditions 6.1. Storing the FREELOX PORTABLE The FREELOX PORTABLE device must be stored in an upright position. Storage in any other position may damage the device. The device must be kept upright. Do not store in a confined space. Do not cover with fabric. The FREELOX PORTABLE must not be stored in a hot environment: in a vehicle, avoid placing the device in direct sunlight and open the windows to ventilate the passenger compartment. -
Page 11: Preparing And Starting Up The Freelox Portable
7. Preparing and starting up the FREELOX PORTABLE 7.1. Preparing the equipment Check that the remaining oxygen level shown on the stationary tank’s level gauge is greater than or equal to 1/4. If the level is lower than 1/4, do not fill the FREELOX PORTABLE, in order to avoid any problems related to the filling of the FREELOX PORTABLE. -
Page 12: Filling The Device
7.2. Filling the device Once the protective cap Line up the green markers found on has been removed from both the FREELOX PORTABLE and the stationary tank’s stationary tank (if this is a FREELOX filling connector, RESERVE). Position and fit the position yourself in front FREELOX PORTABLE vertically into of the tank, in other... -
Page 13: Start-Up
7.3. Start-up Connect the cannula to the FREELOX PORTABLE’s user supply point (2) and fit them on your face. Adjust the flow rate (1) to the value prescribed by your doctor. Make sure that this flow rate adjustment button is always accessible. Warning: no oxygen is supplied if the flow rate valve (2) is positioned between two numbers ( After each use, rinse, wring and dry the felt located in the condensate collector... -
Page 14: Travelling With The Device
8. Travelling with the device 8.1. Travelling by car When travelling by car (even over very short distances), only the FREELOX PORTABLE is authorised. It is advisable to notify your vehicle and home insurance company. It is essential to maintain the FREELOX PORTABLE in an upright position at all times to prevent any leakage of liquid oxygen (reduction in the device’s autonomy and risk of burns). -
Page 15: Help
Help If you have a problem with your FREELOX PORTABLE device, please contact your service provider. 10.1. Condensate collector container If the condensate collector is full, please refer to section 7.1 Preparing the equipment. 10.2. The device has tipped over Immediately return the FREELOX PORTABLE to its upright position. -
Page 16: Accessories
Only Cryopal accessories are approved for use with our devices. The use of different accessories may affect the safety of this medical device, and releases Cryopal from all liability in the event of an incident. The device is no longer covered by its warranty if different accessories are used. -
Page 17: Information About Your Prescription
The FREELOX oxygen therapy system delivers the medical oxygen flow rate prescribed by your doctor. It was designed and manufactured by CRYOPAL in Bussy Saint Georges, France. It has been given to you by your service provider, whose address is provided below. It comprises a stationary tank and a PORTABLE tank, which you can fill from the stationary tank for use when travelling. - Page 18 Note 18 | FREELOX PORTABLE V4 Level – User manual...
- Page 19 Note 19 | FREELOX PORTABLE V4 Level – User manual...
- Page 20 Your service provider www.cryopal.com 20 | FREELOX PORTABLE V4 Level – User manual...
