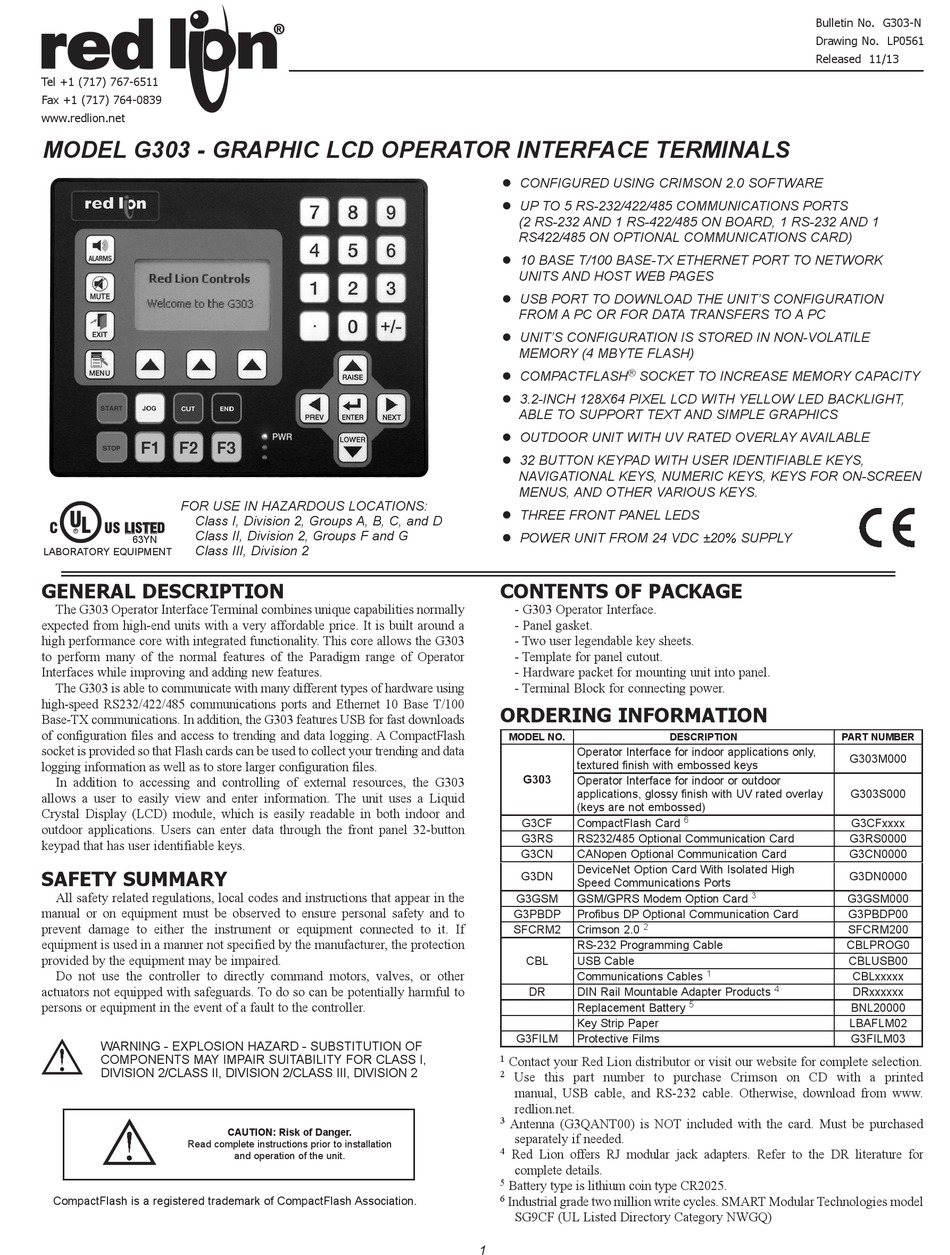

MODEL G303 - GRAPHIC LCD OPERATOR INTERFACE TERMINALS
FOR USE IN HAZARDOUS LOCATIONS:
U L
Class I, Division 2, Groups A, B, C, and D
C US LISTED
Class II, Division 2, Groups F and G
R
63YN
Class III, Division 2
LABORATORY EQUIPMENT

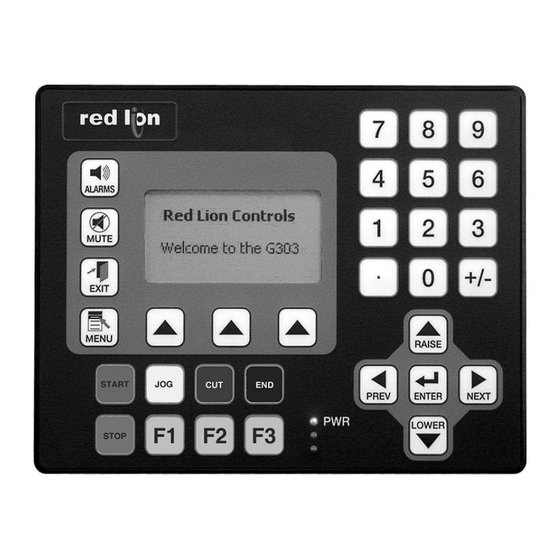

GENERAL DESCRIPTION

The G303 Operator Interface Terminal combines unique capabilities normally
expected from high-end units with a very affordable price. It is built around a
high performance core with integrated functionality. This core allows the G303
to perform many of the normal features of the Paradigm range of Operator
Interfaces while improving and adding new features.
The G303 is able to communicate with many different types of hardware using
high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100
Base-TX communications. In addition, the G303 features USB for fast downloads
of configuration files and access to trending and data logging. A CompactFlash
socket is provided so that Flash cards can be used to collect your trending and data
logging information as well as to store larger configuration files.
In addition to accessing and controlling of external resources, the G303
allows a user to easily view and enter information. The unit uses a Liquid
Crystal Display (LCD) module, which is easily readable in both indoor and
outdoor applications. Users can enter data through the front panel 32-button
keypad that has user identifiable keys.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2/CLASS II, DIVISION 2/CLASS III, DIVISION 2
Read complete instructions prior to installation
CompactFlash is a registered trademark of CompactFlash Association.
CAUTION: Risk of Danger.
and operation of the unit.
 CONFIGURED USING CRIMSON 2.0 SOFTWARE
 UP TO 5 RS-232/422/485 COMMUNICATIONS PORTS
(2 RS-232 AND 1 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
 10 BASE T/100 BASE-TX ETHERNET PORT TO NETWORK
UNITS AND HOST WEB PAGES
 USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION
FROM A PC OR FOR DATA TRANSFERS TO A PC
 UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE
MEMORY (4 MBYTE FLASH)
®
 COMPACTFLASH SOCKET TO INCREASE MEMORY CAPACITY
 3.2-INCH 128X64 PIXEL LCD WITH YELLOW LED BACKLIGHT,
ABLE TO SUPPORT TEXT AND SIMPLE GRAPHICS
 OUTDOOR UNIT WITH UV RATED OVERLAY AVAILABLE
 32 BUTTON KEYPAD WITH USER IDENTIFIABLE KEYS,
NAVIGATIONAL KEYS, NUMERIC KEYS, KEYS FOR ON-SCREEN
MENUS, AND OTHER VARIOUS KEYS.
 THREE FRONT PANEL LEDS
 POWER UNIT FROM 24 VDC ±20% SUPPLY
CONTENTS OF PACKAGE
- G303 Operator Interface.
- Panel gasket.
- Two user legendable key sheets.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal Block for connecting power.

ORDERING INFORMATION

MODEL NO.
Operator Interface for indoor applications only,
textured finish with embossed keys
G303
Operator Interface for indoor or outdoor
applications, glossy finish with UV rated overlay
(keys are not embossed)
G3CF CompactFlash Card
G3RS RS232/485 Optional Communication Card
G3CN CANopen Optional Communication Card
DeviceNet Option Card With Isolated High
G3DN
Speed Communications Ports
G3GSM GSM/GPRS Modem Option Card
G3PBDP Profibus DP Optional Communication Card
2
SFCRM2 Crimson 2.0
RS-232 Programming Cable
CBL USB Cable
Communications Cables
DR DIN Rail Mountable Adapter Products
Replacement Battery
Key Strip Paper
G3FILM Protective Films
1
Contact your Red Lion distributor or visit our website for complete selection.
2
Use this part number to purchase Crimson on CD with a printed
manual, USB cable, and RS-232 cable. Otherwise, download from www.
redlion.net.
3
Antenna (G3QANT00) is NOT included with the card. Must be purchased
separately if needed.
4
Red Lion offers RJ modular jack adapters. Refer to the DR literature for
complete details.
5
Battery type is lithium coin type CR2025.
6
Industrial grade two million write cycles. SMART Modular Technologies model
SG9CF (UL Listed Directory Category NWGQ)
1
Bulletin No. G303-N
Drawing No. LP0561
Released 11/13
DESCRIPTION PART NUMBER
G303M000
6
G3RS0000
G3CN0000
G3DN0000
3 G3GSM000
G3PBDP00
SFCRM200
CBLPROG0
CBLUSB00
1
4
5
LBAFLM02
G303S000
G3CFxxxx
CBLxxxxx
DRxxxxxx
BNL20000
G3FILM03
