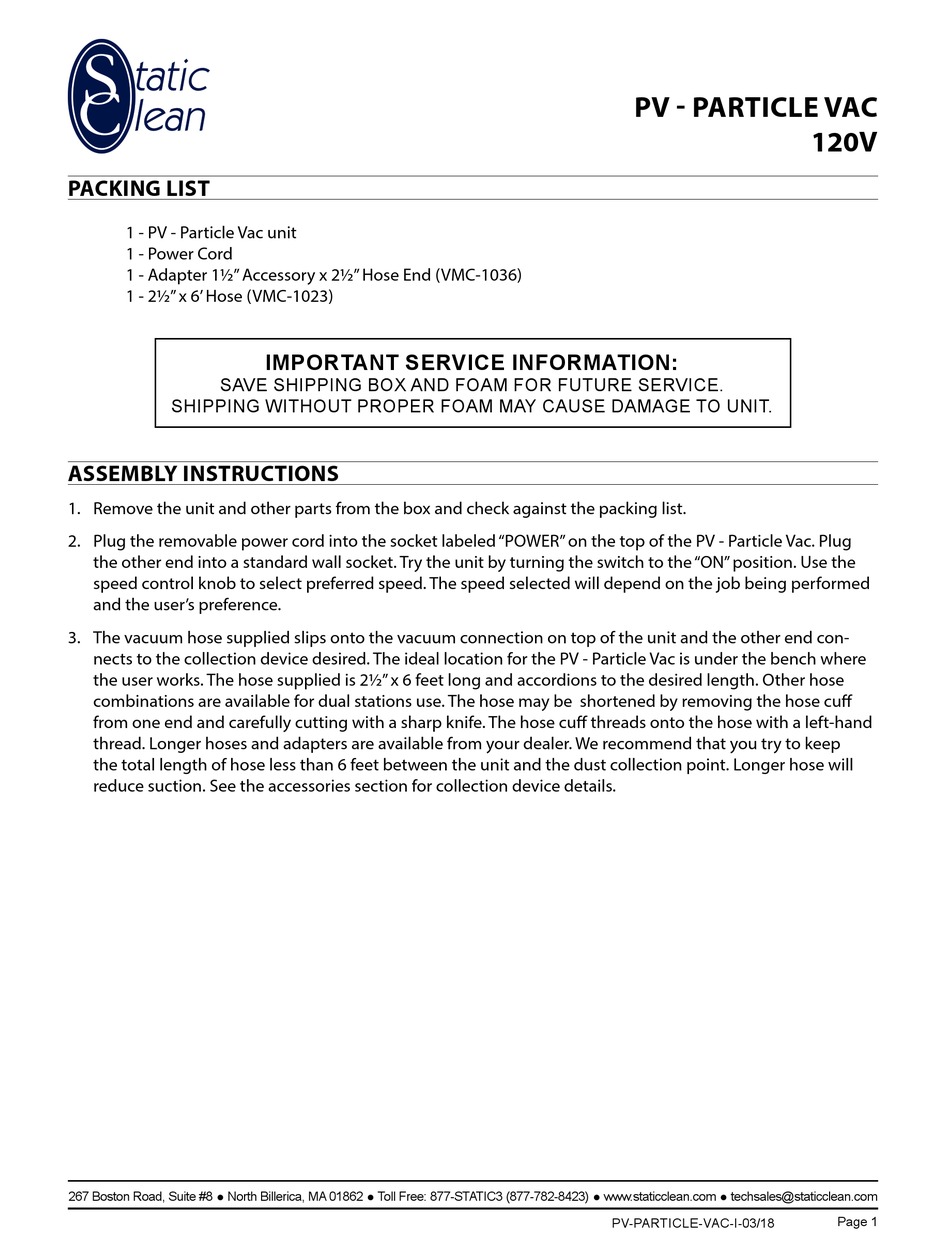

Static Clean PV Particle Vac Manual

PACKING LIST

1 - PV - Particle Vac unit
1 - Power Cord
1 - Adapter 1½" Accessory x 2½" Hose End (VMC-1036)
1 - 2½" x 6' Hose (VMC-1023)
SAVE SHIPPING BOX AND FOAM FOR FUTURE SERVICE.
SHIPPING WITHOUT PROPER FOAM MAY CAUSE DAMAGE TO UNIT.

ASSEMBLY INSTRUCTIONS

1. Remove the unit and other parts from the box and check against the packing list.
2. Plug the removable power cord into the socket labeled "POWER" on the top of the PV - Particle Vac. Plug
the other end into a standard wall socket. Try the unit by turning the switch to the "ON" position. Use the
speed control knob to select preferred speed. The speed selected will depend on the job being performed
and the user's preference.
3. The vacuum hose supplied slips onto the vacuum connection on top of the unit and the other end con-
nects to the collection device desired. The ideal location for the PV - Particle Vac is under the bench where
the user works. The hose supplied is 2½" x 6 feet long and accordions to the desired length. Other hose
combinations are available for dual stations use. The hose may be shortened by removing the hose cuff
from one end and carefully cutting with a sharp knife. The hose cuff threads onto the hose with a left-hand
thread. Longer hoses and adapters are available from your dealer. We recommend that you try to keep
the total length of hose less than 6 feet between the unit and the dust collection point. Longer hose will
reduce suction. See the accessories section for collection device details.
267 Boston Road, Suite #8 North Billerica, MA 01862

IMPORTANT SERVICE INFORMATION:
Toll Free: 877-STATIC3 (877-782-8423)

PV - PARTICLE VAC
www.staticclean.com techsales@staticclean.com
 
PV-PARTICLE-VAC-I-03/18
120V
Page 1
