Summary of Contents for Banjo DM220AD

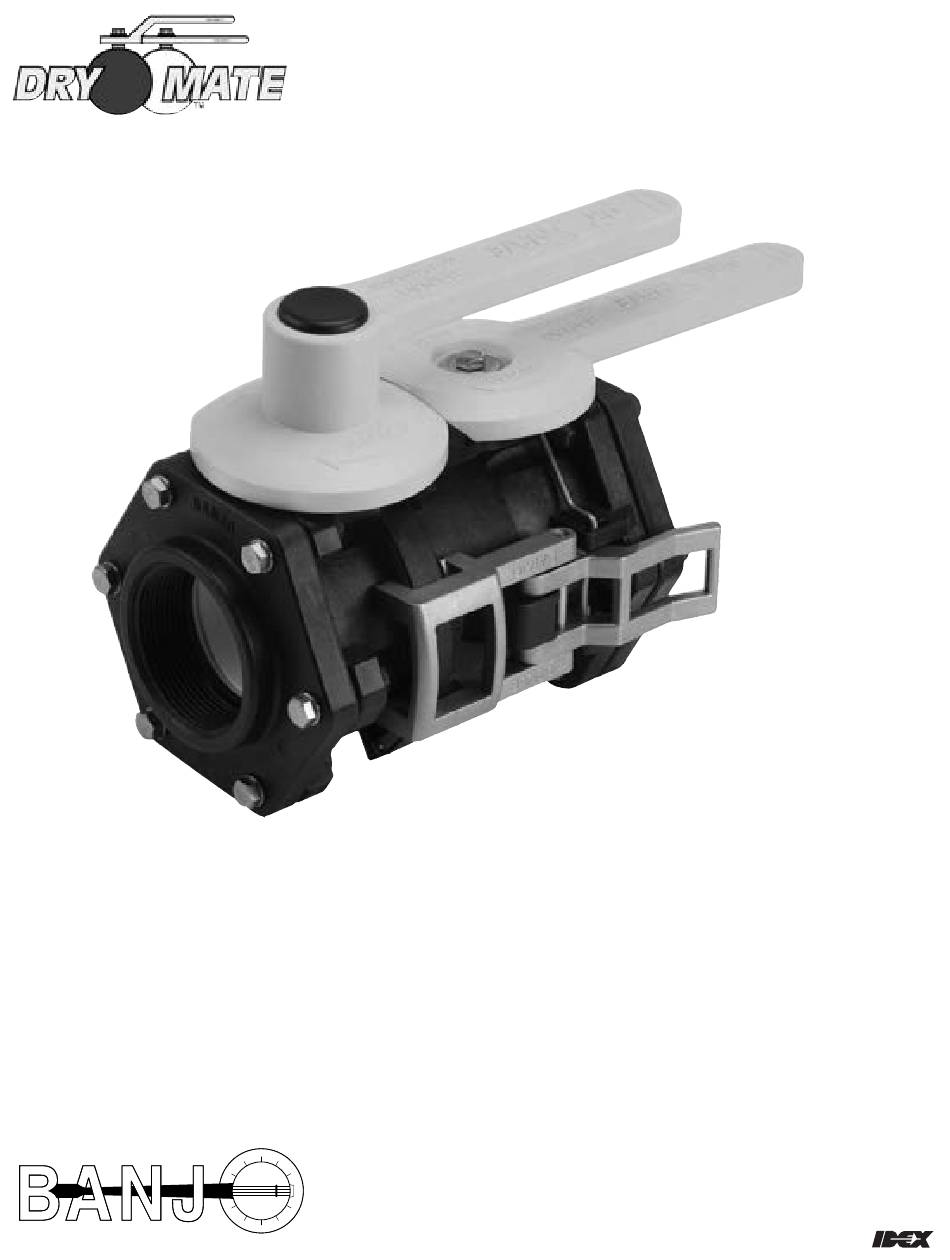

- Page 1 Dr y- D is c onn ects DM22 0 & DM3 00 S E RI E S 2" F U LL PORT & 3" FULL P ORT POLYPROP Y LE N E ® Liquid Handling Products...
-
Page 2: Specifications
The Dry-Mate is constructed of glass-reinforced polypropylene for strength and excellent chemical resistance. The PTFE seats and FKM face seal on the female give the Dry-Mate the same chemical resistance as Banjo’s standard line of ball valves. The face seal on the female is available in FKM, EPDM and PTFE. - Page 3 3" 3" *Female refers to DM300D variants. **Male refers to DM300A variants. WARNING! The Banjo DM220 and DM300 Series should not be used at pressures above the Maximum Pressure or at temperatures above the Maximum Temperature or below the Minimum Temperature indicated. Use outside of these parameters could cause failure of the fittings, which may result in significant injury or death. Although sold separately, the Male should only be used with the Female, and the Female should only be used with the Male.
- Page 4 OPERATION Step 1 To attach the two halves together, make sure the faces of the Male and Female are free from dirt or other foreign material. Align the two halves together as shown in Figure 1. The two halves can be rotated 10 degrees either direction with respect to each other as shown in Figure 2.
- Page 5 Step 3 In this position, the handle of the Female must be rotated before the handle of the Male can rotate. Rotate the handle of the Female to the fully open position. When this handle is fully opened, the locking yoke will engage the cam levers and prevent the cam levers from being opened while the handle is in the fully open position.
- Page 6 WARNING! Make sure the Dry Mate is flushed clean of chemicals and other fluids before any rebuild or seal replacement. ® Liquid Handling Products BANJO CORPORATION A Unit of IDEX Corporation 150 Banjo Drive Crawfordsville, IN 47933 U.S.A. Telephone: (765) 362-7367 Fax: (765) 362-0744 DryMatesManual_KK-82 © Copyright 2016 Banjo Corporation. All Rights Reserved. | banjocorp.com Dry-Mate Dry Disconnects...
- Page 7 NOTE: Please see banjocorp.com for more product drawings. Dry-Mate Dry Disconnects...
- Page 8 NOTE: Please see banjocorp.com for more product drawings. Dry-Mate Dry Disconnects...
