Nanight Cave 2 User Manual

User Manual
Nanight Cave 2 Dive light
Thank you for choosing a dive light from Nanight! The lamp is
designed for diving at depths of up to 200m. We at Nanight hope
your new lamp will give you many rewarding days and nights of
diving!
1

PRODUCT DESCRIPTION

● Output: 4000 lumens
● LED Type: Cree XHP70
● Battery: 14,4V Panasonic Li-Ion, 6700 mAh,
● Beam Angle: 5°
● Burn Time: Up to 7 hours
● 3-step dimming
● Operating temperature: 0 – 35°C
● Operating voltage: 5 - 20V
2

NANIGHT CAVE INCLUDES THE FOLLOWING PARTS

● Lamp head
● Battery canister
● Charger
● HD Canister mount
● Goodman handle
● Velcro canister tank mount
● Case and a sticker
3

BEFORE USE

3.1 CHARGE THE BATTERY

● Open the battery canister by unscrewing the sealing plastic
plug counterclockwise.

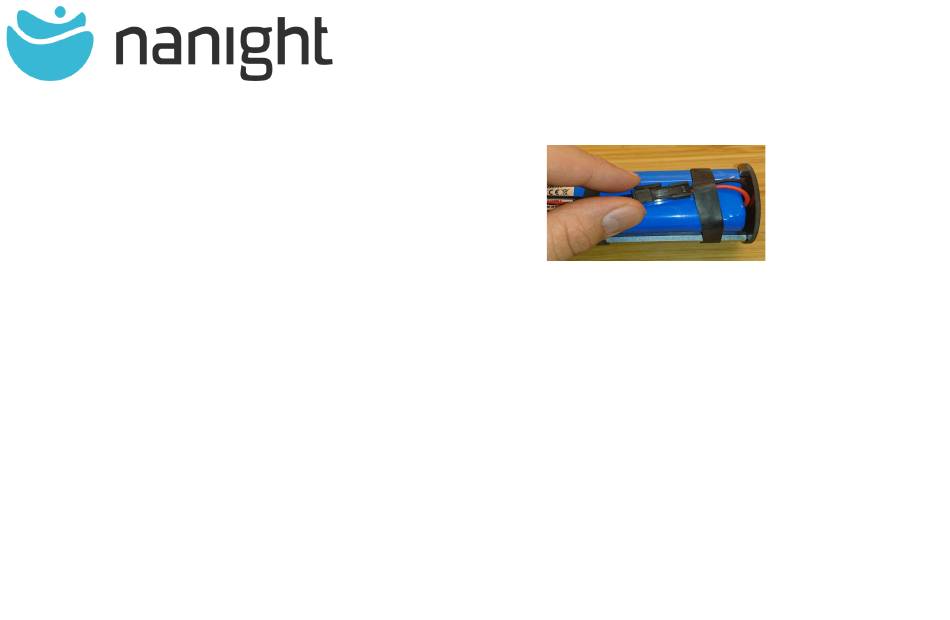

● Disconnect the battery connector by pressing down on the
latch and pull the connectors apart (see picture).
● Connect the charger connector to the battery connector. ​ I t
is important that the connectors are connected to each
other in the correct orientation ​ ( see picture).
● Plug the charger into a wall outlet. The charger's indicator
light turns from red to green when the battery is fully
charged.
● When the battery is fully charged, disconnect the charger
connector and reconnect the dive light connector. ​ I t is
important that the connectors are connected to each other
in the correct orientation ​ ( see picture).
● Inspect the o-rings, clean any debris and replace them
immediately if damage exists.
● Make sure that the elastics around the battery is tight and
keeps cords and plugs in place.
● Close the canister by pushing the plastic plug into the pipe,
past the first o-ring. Tighten the plastic cap by turning
● Clockwise. Be careful so that the parts threading properly
against each other.
