Vacon 7-segment Control Panel Manual
Vacon 7-segment Control Panel Manual

Vacon 7-segment Control Panel Manual

For cx/cxl/cxs frequency converters

Advertisement

V ACON
CX/CXL/CXS
FREQUENCY CONVERTERS

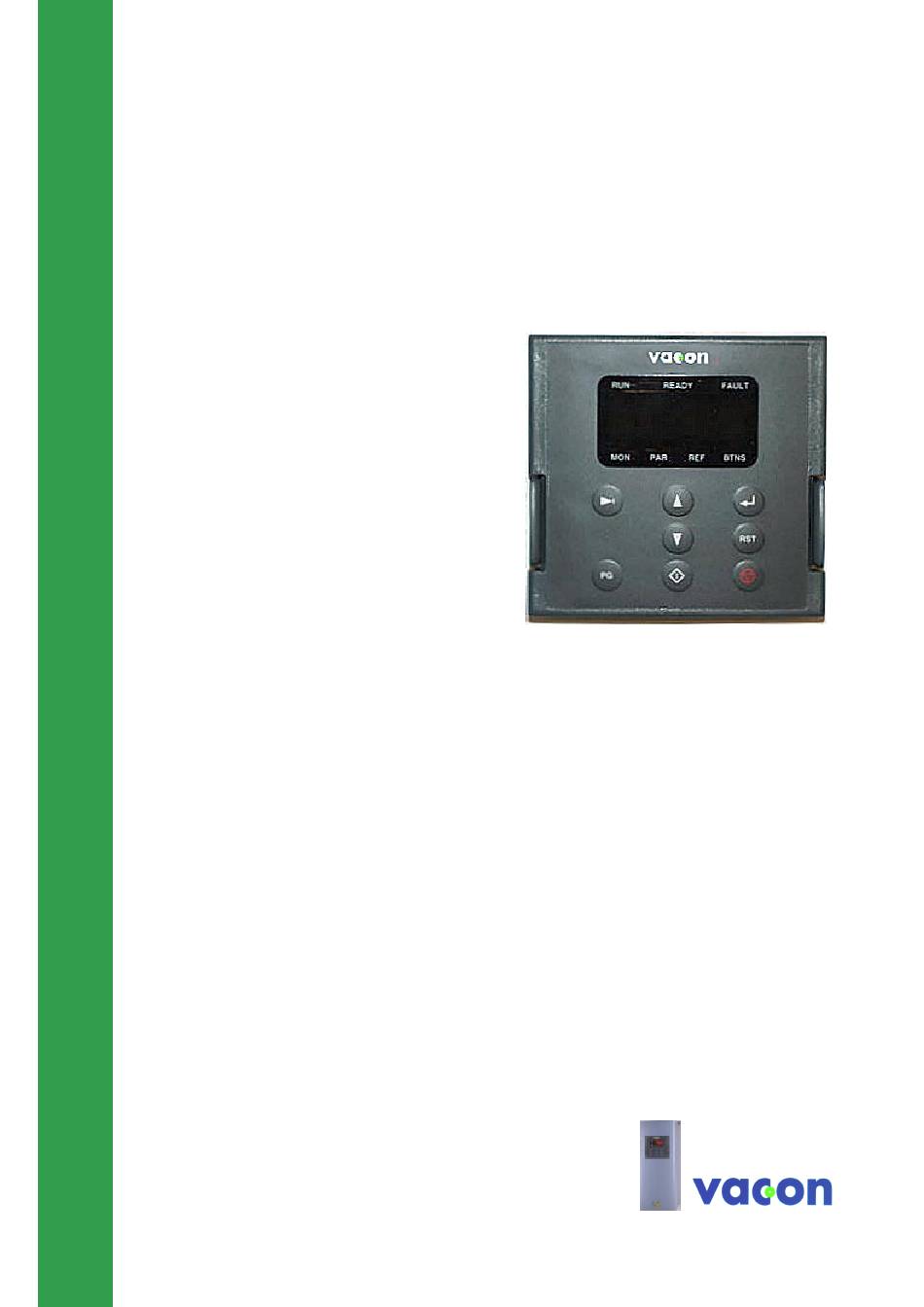

7-segment
Control Panel
Subject to changes without notice.
F O R S M O O T H C O N T R O L

Advertisement

Table of Contents
loading

Summary of Contents for Vacon 7-segment Control Panel

  • Page 1 V ACON CX/CXL/CXS FREQUENCY CONVERTERS 7-segment Control Panel Subject to changes without notice. F O R S M O O T H C O N T R O L...
  • Page 2: Table Of Contents

    VACON 7-SEGMENT CONTROL PANEL INDEX Page 1. General ..............2 2. Panel operation ............ 3 3. Monitoring page ............ 4 4. Parameter page ........... 6 5. Reference page ........... 6 6. Programmable push-button page ......7 7. Fault history page ..........8 8.
  • Page 3: General

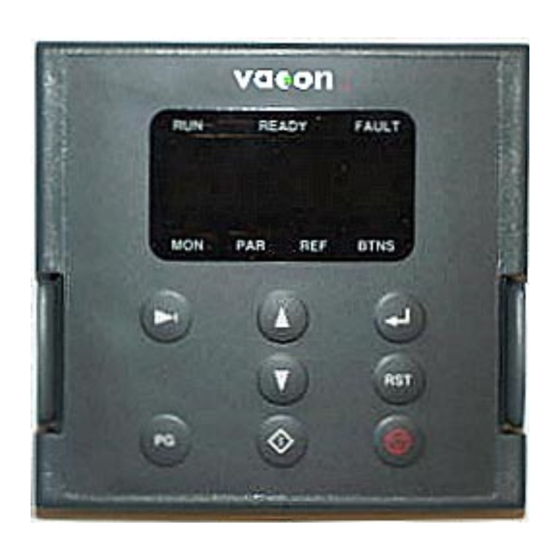

    Page 2 (10) 7-segment Control panel Vacon GENERAL panel can be used with all Vacon frequency The 7-segment control panel of the Vacon converters. frequency converter has a six-digit LED display, three drive status indicators, four active menu In other questions and problems with Vacon page indicators and eight push-buttons.
  • Page 4: Panel Operation

    7-segment Control panel Vacon Page 3 (10) Panel Operation The panel operation is clear and it is organised The active menu page LED as well as the in page type menus. There are different menu leftmost character in the six digit read-out pages for monitoring, parameter settings, indicate which one of the pages is active.
  • Page 5 Page 4 (10) 7-segment Control panel Vacon 7.3 Monitoring page data values can be selected for display with the The MON indicator is lit when the monitoring tab push-button. page is active. In the item display the symbol for monitoring is "n" and the next digit is the Table 1.
  • Page 6 7-segment Control panel Vacon Page 5 (10) Digital input Status indication READY FAULT READY FAULT 0 = open input 1 = closed input (active) Example: BTNS BTNS Input Terminal DIA1 closed DIA2 closed DIA3 open Figure 4. Digital inputs, Group A status.
  • Page 7 System parameter Group 0. Group page is active. Figure 7. shows how the 0 becomes visible only when the Application parameter values can be changed. package lock is opened. See Vacon CX/CXL/ The enter button confirms the change of CXS User's Manual Chapter 11.
  • Page 8 7-segment Control panel Vacon Page 7 (10) Programmable push-button page The BTNS indicator is lit when the button has it’s original function. The feedback programmable push button page is active. The information tells the state of the button function of the enter button can be selected on function.
  • Page 9: Fault History Page

    If 9 faults are in the memory, the next history page is active, see Figure 10. The Vacon frequency converter stores maximum coming fault erases the oldest fault record from 9 faults in the order they appear. The latest fault the memory.
  • Page 10: Active Warning Display

    A 30 Onbalance current fault, the load of the segments is Contact nearest Vacon distributor not equal. A 45 Vacon frequency converter overtemperature warning, Check the cooling air flow and temperature >70°C the ambient temperature A 46 Reference warning, the current of input I <4 mA...
  • Page 11: Controlling The Motor From The Front Panel

    10. Controlling the motor from the front to I/O terminals panel After changing the control source, the I/O Vacon CX/CXL/CXS can have controls from terminals determine the run-state, direction of the I/O terminals or from the front panel. The rotation and reference value.
  • Page 12 Vacon Plc P.O.Box 25 Runsorintie 7 65381 VAASA Tel. +358-(0)201-2121 Fax. +358-(0)201-212 205 On-call: +358-(0)40-8371 150 E-mail: vacon@vacon.com http://www.vacon.com...
