ZURN Z884 Installation Instructions Manual

Shallow trench drain system
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Z884

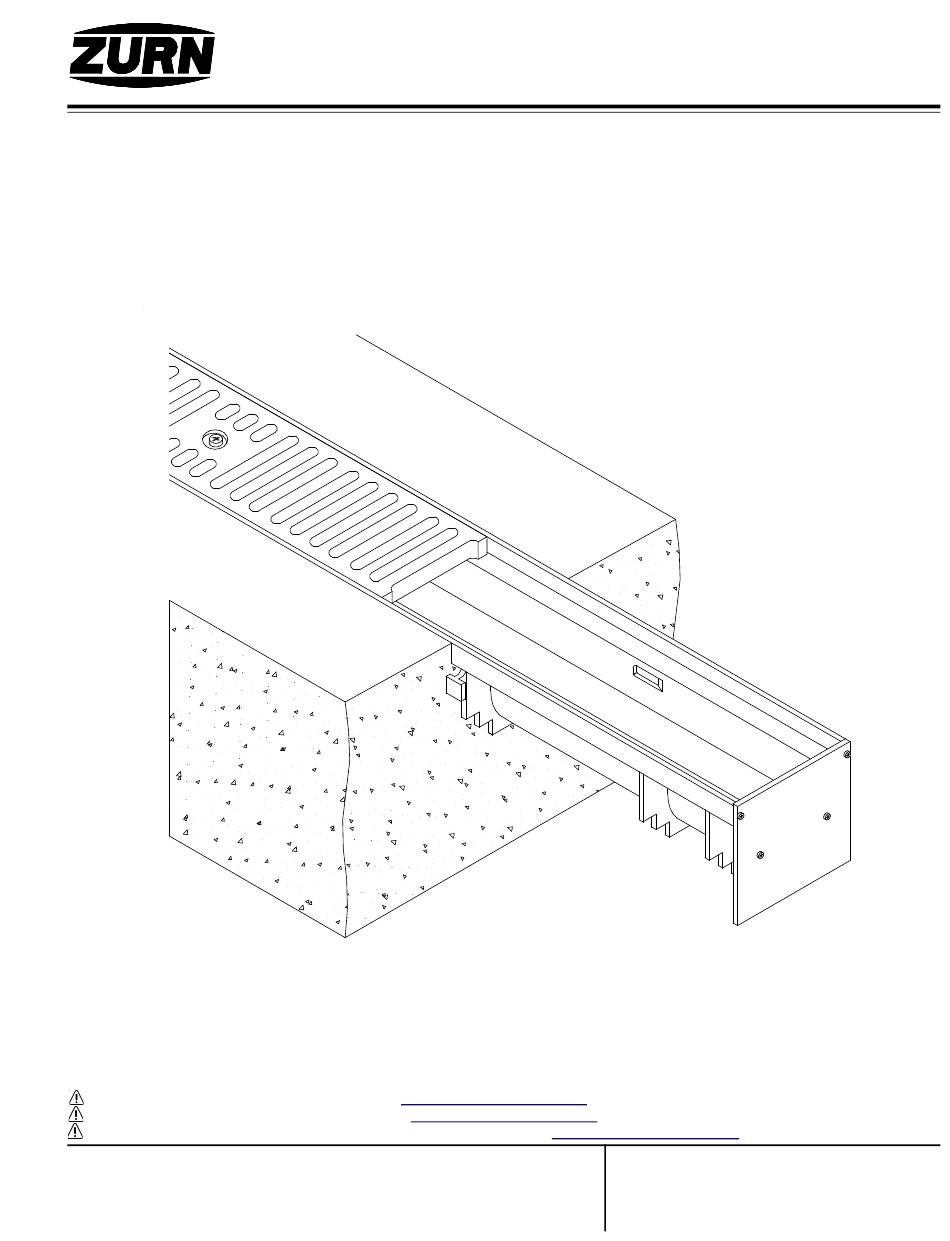

SHALLOW TRENCH DRAIN SYSTEM™
®
INSTALLATION INSTRUCTIONS
Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
WARNING: Cancer and Reproductive Harm -
ADVERTENCIA: Cáncer y daño reproductivo -
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction -
Zurn Industries, LLC
|
Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929
In Canada
|
Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax 905-405-1292
www.zurn.com
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
Rev.
B
Date:
5/9/2018
C.N. No.
140014
Form No. FT628
Page 1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z884 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZURN Z884

  • Page 1 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929 Date: 5/9/2018...
  • Page 2 Above are some of the trench drain components typical to an installation. Double check your order to ensure that you have all components particular to your job before beginning your installation. Contact Zurn Customer Service at 1-877-ZURN-NOW should additional material be required. Zurn Industries, LLC Specification Drainage Operation Rev.
  • Page 3 Trench excavation must be 4" [102mm] greater than the trench depth and a minimum width of 14" [356mm]. Soft and/or shifting soil substrates may cause cracking of the concrete and consequent movement of the trench. It is critical that the concrete be poured on an adequate foundation. Zurn Industries, LLC Specification Drainage Operation Rev.

  • Page 4: Overall Layout

    OVERALL LAYOUT Upon completion of the trench excavation, the channels should be placed in order alongside the excavation and according to the job layout. Grates are not installed at this time. Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929...

  • Page 5: Suspended Installation

    An alternative means of installation is to suspend the trench drain as shown. Wooden braces to hang the trench run can be attached to the drain body through the grate lock down bars as illustrated above. Note: unless Grate Lockdown option is specified, the supsended installation method can not be utilized. Zurn Industries, LLC Specification Drainage Operation Rev.
  • Page 6 Assembling the trench run is easy using Flo-Thru’s mechanical interlocking joints. Simply align the two mating ends of the trench sections and fasten with the hardware fasteners provided. A silicone caulk, or a construction adhesive, such as Liquid Nails, is recommended to be used at each joint as a sealer. Zurn Industries, LLC Specification Drainage Operation Rev.
  • Page 7 A bottom outlet is attached to the bottom side of the trench drain with provided screws and a silicone caulk or a construction adhesive if desired as shown below. A hole saw can be used to cut the appropriate size hole through the bottom of the trench. Zurn Industries, LLC Specification Drainage Operation Rev.
  • Page 8 Finish troweling should be done to set the top edge of the trench drain about 1/16” [2mm] below the floor grade. Remember to compensate for concrete shrink that may occur during cure so that the edge of the trench drain does not protrude above the finished floor grade. Zurn Industries, LLC Specification Drainage Operation Rev.
  • Page 9 12” [305] will not be able to be locked down. Lock down bolts can be installed using a 7/16” socket. Insert a thin screwdriver through the grate to support the right side of the lockdown bar to hold it in the slots while tightening the lockdown bolt. Zurn Industries, LLC Specification Drainage Operation Rev.
