Win PL-80690 User Manual

Networking appliance desktop intel? celeron? (codename bay trail) network system, four copper gbe, cf, sata and mini-pcie
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

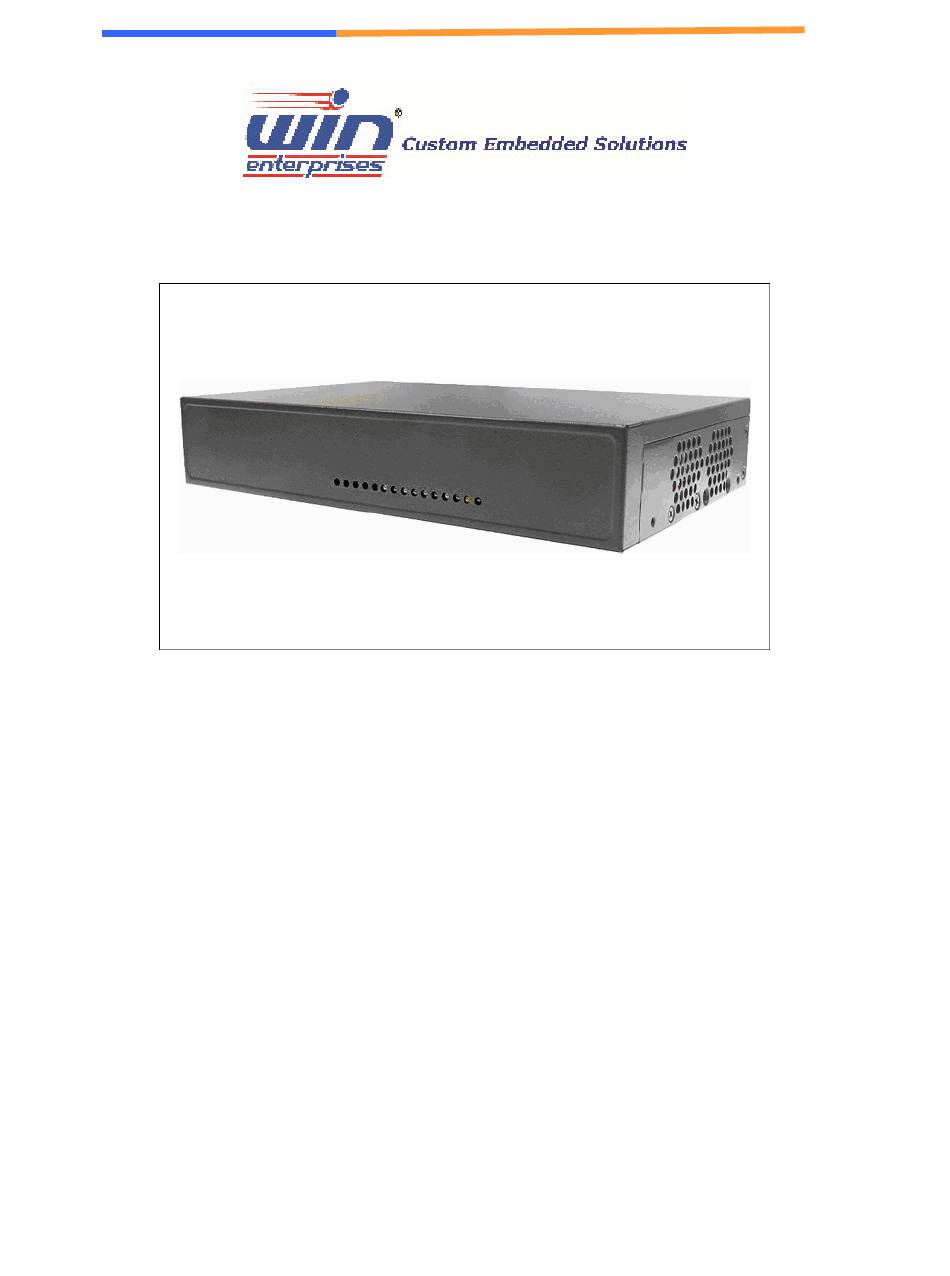

User's Manual
PL-80690
Networking Appliance
Desktop Intel® ® ® ® Celeron® ® ® ® (codename Bay Trail) Network System,
Four Copper GbE, CF, SATA and mini-PCIe
User's Manual
Version 1.0
WIN Enterprises, Inc.
1
June., 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-80690 and is the answer not in the manual?

Questions and answers

Summary of Contents for Win PL-80690

  • Page 1 User’s Manual PL-80690 Networking Appliance Desktop Intel® ® ® ® Celeron® ® ® ® (codename Bay Trail) Network System, Four Copper GbE, CF, SATA and mini-PCIe User’s Manual Version 1.0 WIN Enterprises, Inc. June., 2014...
  • Page 2 For more information on PL-80690 or other WIN Enterprises products, please visit our website: www.win-ent.com. For technical support send inquiries to: sales@win-ent.com.

  • Page 3: Table Of Contents

    3.6 Security Menu ..................31 3.7 Chipset Menu ..................32 3.8 Chipset Menu ..................35 Chapter 4. Utility & Driver Installation…………………………..……………37 Appendix A: Programming the Watchdog Timer ........39 Appendix B: Cable development kit ....Error! Bookmark not defined. WIN Enterprises, Inc. June., 2014...

  • Page 4: Chapter 1. General Information

    4GB eMMC storage and interfaces including one 2.5” SATA HDD and CompactFlash™. For network security, the PL-80690 is equipped with 4 Copper GbE, USB2.0 ports, RJ-45 console port and an optional mini-card socket with LED indicators that monitor power, storage device activities for local system management, maintenance and diagnostics.

  • Page 5: Specifications

    (9.1W x 6” D x 1.7” H) Operating Operating: 0 ~ 40° C ( 32 ~ 104° F ) Temperature Storage Temperature -20 ~ 75°C (-4 ~ 167° F) Humidity 10 ~ 85% relative humidity, non-operating, non-condensing Certifications CE/FCC WIN Enterprises, Inc. June., 2014...

  • Page 6: Ordering Information

    If any item of above is missing or damaged, please contact your dealer or retailer from whom you purchased the PL-80690. Keep the box and carton for possible future shipment or storage. After you unpack the goods, inspect and make sure the product is intact.

  • Page 7: Precautions

    Please make sure you properly ground yourself before handling the PL-80690 appliance or other system components. Electrostatic discharge can be easily damage the PL-80690 appliance. Do not remove the anti-static packing until you are ready to install the PL-80690 appliance. Ground yourself before removing any system component from its protective anti-static packaging.

  • Page 8: System Layout

    User’s Manual 1.6 System Layout PL-80690 Front Side Layout PL-80690 Rear Side Layout WIN Enterprises, Inc. June., 2014...

  • Page 9: Board Dimensions

    User’s Manual 1.7 Board Dimensions WIN Enterprises, Inc. June., 2014...

  • Page 10: Chapter 2. Connector/Jumper Configuration

    User’s Manual Chapter 2. Connector/Jumper Configurations 2.1 Connector/Jumper Location and Definitions WIN Enterprises, Inc. June., 2014...
  • Page 11 COM2 Pin Header (Option) Debug GPIO(For Test Only) CN10 MINI-PCIE CN11 CN12 USB Port 2 (Option) CN13 Power Connector (Option) CN14 USB Port 0/1 CN15 LAN1 CN16 LAN2 CN17 LAN3 CN18 LAN4 CN19 Console CN20 DC Jack WIN Enterprises, Inc. June., 2014...

  • Page 12: Connector And Jumper Setting

    ： ： ： ： Define Define +3.3V AD 0 AD 2 AD 3 Frame# PCIERST# CLOCK PME# SERIRQ DRQ# P S2 KB/MS Pin Header ： ： ： ： Define Define KCLK MCLK KDAT MDAT PS2_GND PS2_GND WIN Enterprises, Inc. June., 2014...
  • Page 13 +12V S ATA Connector ： ： ： ： Signal Ground Ground Ground V GA (Pin header) ： ： ： ： Define Define GREEN BLUE Reserved RED PTN GREEN PTN BLUE RTN Reserved HSYNC VSYNC Reserved WIN Enterprises, Inc. June., 2014...
  • Page 14 USB_D+ RESERVED RESERVED LED_WWAN# RESERVED LED_WLAN# RESERVED LED_WPAN# RESERVED +1.5V RESERVED RESERVED +3.3V MINI_PCIE Define Define WAKE# 3.3V Reserved 1.5V Reserved CLKREQ# Reserved Reserved REFCLK- Reserved REFCLK+ Reserved Reserved Reserved Reserved Reserved PERST# PERN0 +3.3VAUX WIN Enterprises, Inc. June., 2014...
  • Page 15 Reserved LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Reserved +3.3V CN14 U SB (Port 0/1) Connector ： ： ： ： Define Define DATA0- DATA0+ DATA1- DATA1+ CN15~18 L AN RJ-45 Connector ： ： ： ： Define WIN Enterprises, Inc. June., 2014...
  • Page 16 D2 :Link/Activity LED Link GREEN Activity BLINKING CN19 ： ： ： ： C OM1 (Console) Connector RJ45 Define CTS# DTR# TXD# RXD# DSR# RTS# CN20 ： ： ： ： DC +12V Power Jack (2Pin) Define Define +12V WIN Enterprises, Inc. June., 2014...
  • Page 17 User’s Manual Jumper Settings C lear CMOS ： ： ： ： Setting Normal Operation Clear CMOS WIN Enterprises, Inc. June., 2014...

  • Page 18: Compactflash Tm Card Socket Pin Define

    Thus, they provide users with much greater protection of the data than conventional magnetic disk device. Assignment Assignment Assignment Assignment Assignment Ground Ground RESET Ground ORDY DREG Ground DACK Ground Ground Ground RDY/BSY 47 Ground Ground SCSE Ground Ground WIN Enterprises, Inc. June., 2014...

  • Page 19: Chapter 3. Bios Setup

    User’s Manual Chapter 3. BIOS Setup The ROM chip of your PL-80690 board is configured with a customized Basic Input/Output System (BIOS) from AMI BIOS. The BIOS is a set of permanently recorded program routines that give the system its fundamental operational characteristics.
  • Page 20 2. Press the <DEL> key to enter BIOS Setup program. The main menu appears: 3. Choose a setup option with the arrow keys and press <Enter>. See the following sections for a brief description of each setup option. WIN Enterprises, Inc. June., 2014...

  • Page 21: Menu Options

    Chipset: For changing the chipset settings. Security: Use this menu to set User and Supervisor Passwords. Boot: For changing the system boot configurations. Save & Exit: For selecting the exit options and loading default settings. WIN Enterprises, Inc. June., 2014...

  • Page 22: Advanced Menu

    PgUP/PgDN/+/- keys. Some fields let you enter numeric values directly. 3. After you have finished with the Advanced setup, the < > or < > key to switch to other setup menu or press <F4> key to save the setting. WIN Enterprises, Inc. June., 2014...

  • Page 23: Platform Function

    User’s Manual 3.4.1 Platform Function Watchdog™ Mode Watchdog Mode S ec/Min （ ） Watchdog™ Timer Set up Watchdog Timer. WIN Enterprises, Inc. June., 2014...

  • Page 24: Nct6791D Super Io Configuration

    User’s Manual 3.4.2 NCT6791D Super IO Configuration WIN Enterprises, Inc. June., 2014...
  • Page 25 User’s Manual Serial Port 1/2 Configuration Serial Port Enable or Disable Serial Port (COM) Change Settings Select an optimal setting for Super IO device. WIN Enterprises, Inc. June., 2014...

  • Page 26: Nct6791D Hw Monitor

    User’s Manual 3.4.3 NCT6791D HW Monitor CPU Configuration This sub menu shows the CPU-related information which is automatically detected by BIOS. WIN Enterprises, Inc. June., 2014...

  • Page 27: Ide Configuration

    User’s Manual 3.4.4 IDE Configuration This sub menu enables you to set or change the configurations for the IDE devices installed in the system. WIN Enterprises, Inc. June., 2014...

  • Page 28: Usb Configuration

    User’s Manual 3.4.5 USB Configuration This sub menu allows you to change the USB-related features. 3.4.6 Hardware Health Configuration This screen shows you the CPU core voltage, System voltage, System temperature and CPU temperature. WIN Enterprises, Inc. June., 2014...

  • Page 29: Console Redirection

    These read-only fields show the functions of the hardware thermal sensor by CPU thermal diode that monitors the chip blocks to ensure a stable system. Vcore 12V / 5V / 3.3V Show you the voltage of 12V / 5V / 3.3V and etc. 3.4.7 Console Redirection WIN Enterprises, Inc. June., 2014...
  • Page 30 User’s Manual WIN Enterprises, Inc. June., 2014...

  • Page 31: Boot Menu

    Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Use this item to select the power-on state for the NumLock. Quiet Boot Enables or disables quiet boot option. WIN Enterprises, Inc. June., 2014...

  • Page 32: Security Menu

    PgUP/PgDN keys. Please press the <F1> key for information on the various options. 3. After you have finished with the Security setup, press the <ESC> key to return to the main menu. WIN Enterprises, Inc. June., 2014...

  • Page 33: Chipset Menu

    This item indicates whether an administrator password has been set (installed or uninstalled). 3.7 Chipset Menu Use the Chipset Setup option as follows: 1. Choose “Chipset Configuration” from the Advanced menu. The following screen appears. WIN Enterprises, Inc. June., 2014...
  • Page 34 User’s Manual 2. Move between items and select values by using the arrow keys. Modify the selected field the PgUP/PgDN keys. For information on the various options, press <F1> key. WIN Enterprises, Inc. June., 2014...
  • Page 35 PgUP/PgDN keys. For information on the various options, please press <F1> key. 3. Please press the <ESC> key to return the main menu after finishing with the Exit Options. Save Changes and Reset: WIN Enterprises, Inc. June., 2014...
  • Page 36 Save changes of values to CMOS and reset the CMOS setup program. F10 key can be used for this operation. Discard Changes and Reset: Discard all CMOS changes and reset the CMOS setup program. ESC key can be used for this operation. WIN Enterprises, Inc. June., 2014...
  • Page 37 Please install the GbE modules properly before you install the OS, driver or other software. 4.1 Operation System Supporting PL-80690 can support Windows® and Linux® operation system as follows. Before installation, please check your OS version. If your OS is not in the following list, please upgrade your OS version.

  • Page 38: Appendix A: Programming The Watchdog Timer

    User’s Manual Appendix A: Programming the Watchdog™ Timer The PL-80690 provides a Watchdog timer that resets the CPU or enables LAN bypass mode. This function ensures greater system reliability in industrial stand-alone and unmanned environments. In order to enable the watchdog timer, you have to output the value of the watchdog timer interval to the controller.
  • Page 39 MOV DX,2EH ;Set timer interval value to xx seconds O 2E F6 MOV AL,F6H O 2F XX OUT DX,AL O 2E AA MOV DX,2FH MOV AL,XXH ; Timer interval *** see note *** OUT DX,AL MOV DX,2EH MOV AL,AAH OUT DX,AL WIN Enterprises, Inc. June., 2014...
  • Page 40 OUT DX,AL MOV DX,2EH MOV AL,AAH OUT DX,AL Note: This XX value range is from 01H to FFH, and the related Watchdog timer interval is 1 sec. to 255 sec. (as in the previous description). WIN Enterprises, Inc. June., 2014...

  • Page 41: Appendix B: Cable Development Kit

    User’s Manual Appendix B: Cable Development Kit The PL-80690 offers some cables for development use. DK001 Item & Description Part No. Ethernet Cat.5 Cable 2M/ RoHS CB-EC5200-00 Cross Over 2M Color/ RoHS CB-CO5202/4-00 RJ45 to DB9 2M Cable/ RoHS CB-RJDB91-00...
