Beam User Manual

Iridium Extreme PTT

Grab 'N' Go Kits

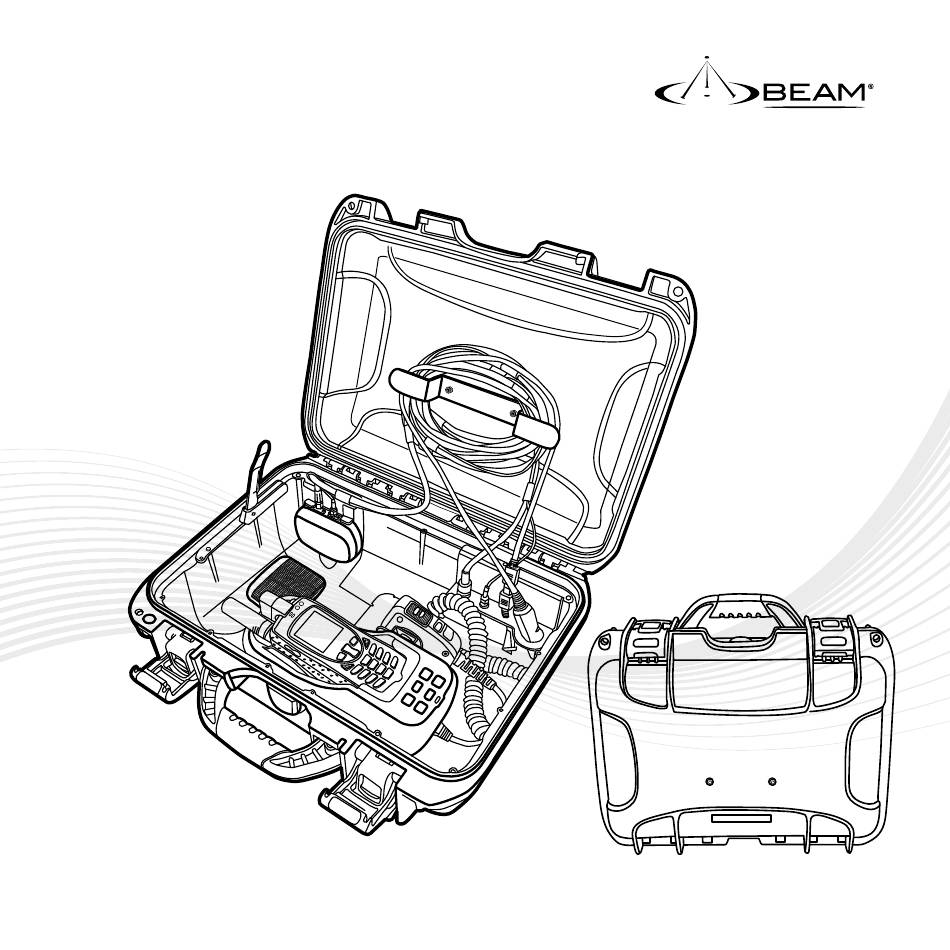

Pictured: Iridium Extreme®

PTT Grab 'N' Go Corded Kit

(PTTGNG-C1)

Table of Contents

Need help?

Do you have a question about the Grab ‘N’ Go and is the answer not in the manual?

Questions and answers

Summary of Contents for Beam Grab ‘N’ Go

Page 2 Information furnished by Beam Communications Pty Ltd is believed to be accurate and reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of patents or other rights of third parties, which may result from its use.
Page 3: Beam Communications
Tel: +61 3 8588 4500 demands and niche applications. Fax: +61 3 9560 9055 Beam’s leading edge products are deployed in a wide range of markets including Maritime, Transport, Government, Defence, Mining, Construction, Forestry, Emergency Services, Relief Aid, Telemetry and Rural Telephony.
Page 4: Table Of Contents
DriveDOCK Extreme Button Action & Response (PTT Mode) Iridium Extreme PTT Grab ‘N’ Go Kits - Small case Technical Notes Beam WIRELESS PTT HANDSET Type Acceptance Wireless PTT Parts & functions Radio and Television Interference Wireless Charging Cradle Parts & Functions...
Page 5: Conventions In This Manual
The ® symbol, mark and logos are owned by the respective companies of which the symbol follows. Any use of such marks by Beam Communications is under license. Other trademarks and trade names are those of their respective owners. Radio Frequencies...
Page 6: Kit Contents
See your service provider for pricing and availability of the DO NOT open the equipment. There are no user serviceable above quality BEAM accessories. parts inside. If a DC power supply is to be used, the output must comply with the Safety Extra Low Voltage (SELV) requirements of IEC60950.
Page 7 Check your local regulations and laws. operation can constitute a safety hazard. WARNING Changes or modifications not expressly approved by Beam Communications could void the product warranty. WARNING: AIR BAG EQUIPPED VEHICLES An air bag inflates with great force. Do not store or mount the Cradle / PTT system or any of the accessories in the area over the air bag or in the air bag deployment area.
Page 8: Product Overview
Extreme® PTT Device to the palm of your hand, whether in or out of a vehicle, anywhere you need to go! Wireless Push-To-Talk Handset The inbuilt Beam PTT handset kit (wireless or corded) is ideal for various applications such as Emergency Services, Avaliable in the large and small case.
Page 9: Dock Ptt Mode Versus Phone Mode
Dock PTT Mode versus Phone mode When the 9575 Extreme device is in PPT mode, some of the Extreme Dock functions are altered (please refer to pg. 18-19 for more details): FUNCTION EXTREME DOCK in PTT MODE Wired Alert Loop Disabled (No alert/SOS functionality exists in the 9575 Extreme device when in PTT mode.) Disabled.
Page 10: Iridium Extreme Ptt Grab 'N' Go Kits - Large Case
Beam Wireless PTT615 - Magnetic PTT Handset Handset PTT Handset Mount Antenna Please note the Magnetic Please note the Beam Mount Antenna is only Large Hard Case Privacy Handset is not fitted to the Wireless Kit. included. Antenna Cable Lid close stopper...
Page 11: Beam Wireless Ptt Handset
1 - Volume down: adjusts speaker audio louder - minimum setting Beam Wireless PTT Handset 2 - Volume up: adjusts speaker audio louder Wireless PTT Handset Parts & Functions 3 - PTT button: press to talk - programmed for 3 quick beeps when pressed.#...
Page 12: Beam Corded Ptt Handset
PTT: Push-To-Talk Button WARNING Orange Button Handset The Beam Wireless PTT Handset and charging cradle are designed to (Disabled) Loudspeaker radiate low levels of radio energy in accordance with global government approved regulatory standards. It features Adaptive Power Output. APO...
Page 13: Beam Privacy Handset
Dock is powered on (via vehicle key or alternative power To start a Push-to-Talk call, push and hold the Push-to-Talk (PTT) Button on the Beam handset, and continue to hold the button source). The dock will detect and boot the Extreme PTT device to its last known mode.
Page 14: Ptt Session Status
Using SOS open for others to speak. If you have configured your device with Talk Timer Enabled, the If you attempt to press the SOS button while in PTT Mode, you time remaining to speak in the current talk period is displayed on will receive the following notification: “WARNING! Must go to the screen below the Device Name.
Page 15: General Operation (Wireless Handset Only)
The Wireless PTT Handset and charging cradle powers on with the Find Me™ Feature BEAM Extreme Dock. Note that the Wireless PTT Handset does not The Wireless PTT handset Find Me™ feature allows a misplaced/ power off when the Extreme Dock is turned off. You can manually...
Page 16 button on the handset or the function button on the gateway cradle. Volume Control When you first activate the unit you should first ensure your handset Optional Accessory: Wireless PTT100A (Secondary unit) volume is set to a comfortable listening level. You may then adjust Pairing a PTT100A to the PTT-W1A gateway cradle The Wireless PTT100A is an optional accessory.
Page 17: Dock Loudspeaker Operation (Corded And Wireless Handset)
(Corded and Wireless Handset) Earpiece Operation The BEAM DriveDOCK Extreme includes the standard loudspeaker (as The Wireless PTT Handset provides the user with a weather protected used in normal Phone hands-free calling). This loudspeaker can also be 3.5mm earpiece jack to allow use of industry standard earpieces...
Page 18: Ptt Grab 'N' Go Case - Phone Mode
PTT Grab ‘n’ Go Case - Phone Mode Default Mode Mode 2. Corded/ Mode 3. Corded/Wire- Use Mode 1 or Mode 3. Mode 1. HFI (Hands Free MODE Wireless PTT Handset less PTT Handset and with Privacy Handset - External Speaker and Only (HFI Disabled) External Speaker Only and HFI...
Page 19: Ptt Grab 'N' Go Case - Ptt Mode
PTT Grab ‘n’ Go Case - PTT Mode MODE Mode 1: Default Mode Mode 2: Corded/Wireless Hand- Mode 1: With Privacy Handset External Speaker with Corded/ set Only Only Wireless Handset Press the Ringer button for 2-3 Press the Ringer button for 2-3 Switch Modes seconds, to move to mode 2 seconds, to move back to mode 1...
Page 20: Drivedock Extreme Button Led Status (Ptt Mode)
DriveDOCK Extreme Button LED Status DriveDOCK Extreme Button LED Status (Phone Mode) (PTT Mode) GREEN ORANGE GREEN BLUE ORANGE Telephony mode PTT mode detected Mic / Uplink Flashing ILLUMINATED detected from 9575 from 9575 audio Mute GREEN BLUE ORANGE Privacy Handset or Incoming call FLASHING (slow)
Page 21: Drivedock Extreme Button Action & Response (Phone Mode)
DriveDOCK Extreme Button Action & Response (Phone Mode) LOCATION BUTTON MODE ACTION LED/SOUND LOCATION BUTTON MODE ACTION LED/SOUND Not in Call: Ringer In a Call: Mute press Single Press Cycle through the Ring tone On/off Mute the microphone LED turns RED ring tones and playback and the (uplink) on the Hands-...
Page 22: Drivedock Extreme Button Action & Response (Ptt Mode)
DriveDOCK Extreme Button Action & Response DriveDOCK Extreme Button Action & Response (Phone Mode) continued... (PTT Mode) LOCATION BUTTON MODE ACTION LED/SOUND LOCATION BUTTON MODE ACTION LED/SOUND 3 Second Press Cycle through 3 rising beep Single Press Bluetooth® function audio speaker and sounds 1.5 sec is ON:...
Page 23: Technical Notes
Technical Notes Battery Charging IMPORTANT The Wireless PTT Handset should be charged overnight Do not allow debris to fill the cradle as it may prevent the before initial use. Thereafter it may be left in the charging microphone from making contact with the charging pins. Keep cradle unit between calls, or may be worn all day and all liquids well away from the charging cradle at all times.
Page 24: Type Acceptance
Type Acceptance Radio and Television Interference WARNING The equipment described in this manual generates, uses, Keep your body at least 20cm (8”) away from vehicle mounted and radiates radiofrequency energy. If it is not installed and external antenna. See page 7 for other important details. used correctly—it may cause interference with radio and In the event of a damaged or lost antenna, only original television reception.
Page 25 Changes radioélectrique subi, même si le brouillage est susceptible or modifications to this product not authorized by Beam d’en compromettre le fonctionnement. Iridium Extreme PTT Grab ‘N’ Go Grab ‘n’ Go Kits User Manual...
Page 26: Important Safety And Handling Information
Persons with other property. Read all safety instructions for any products pacemakers: and accessories before using with Wireless Handset. Beam • Should always keep Wireless Handset more than 15 cm Communications is not responsible for the operation of, or any (6 inches) from the pacemaker when turned on.
Page 27 Battery Replacement: Health Care Facilities: Hospitals and health care facilities may use equipment that is particularly sensitive to external Do not attempt to replace the rechargeable battery in Wireless radio frequency emissions. Turn the Wireless Handset off PTT Handset yourself. The battery should be replaced only when staff or posted signs instruct you to do so.
Page 28: Informations Importantes De Sécurité Et De Manutention
Informations importantes de sécurité et conséquent, prenez les précautions suivantes: de manutention i/ Avion: L’utilisation du combiné sans fil peut être interdite Pour éviter toute blessure, lisez toutes les instructions et les dans les avions. consignes de sécurité suivantes avant d’utiliser le combiné ii/ Véhicules: les émissions de radiofréquences par le combiné...
Page 29 Reorienting or relocating the handset and the 5. You want to clean the adapter. connected accessory may improve wireless performance. Connect your BEAM Reseller for advice. Cleaning your Wireless PTT Handset: Acceptable Temperature Extremes: Clean the Wireless PTT Handset immediately if it comes into...
Page 30: Specifications
Specifications PTT Corded Handset PTT Privacy Handset Dimensions inches Dimensions inches Handset 190L x 49.7W x 27.13H 7.48L x 1.95W x 1.06H Corded Handset 88L x 63W x 28D 3.46L x 2.48W x 1.1D Mounting Cup 64W x 95L 2.51W x 3.74H Cable Cord (relaxed 0.04 Cable Cord...
Page 31 Iridium Extreme PTT Grab ‘N’ Go Grab ‘n’ Go Kits User Manual...
Page 32: Beam Warranty Conditions
Customer’s sole and exclusive remedy and the limit of Man down Kit, RST970, 9522B and 9602) Beam’s liability for any loss whatsoever, shall not exceed also come with a 12 month warranty. Beam the purchase price paid by the Customer for the product Communications will repair or replace, at our to which a claim is made.
Page 33 You should contact your service provider in the time of publication. Product specifications, relation to problems with products and we at Beam will designs and descriptive literature are subject to assist your service provider to resolve them, including by replacement where required.
Page 34 Legal: The Bluetooth® word, mark and logos are owned by BluetoothR SIG, Inc. Other trademarks and trade names are those of their respective owners.
Page 35 Iridium Extreme PTT Grab ‘N’ Go Grab ‘n’ Go Kits User Manual...
Page 36 Beam Communications GLOBAL HEAD OFFICE Tel: +61 3 8588 4500 Fax: +61 3 9560 9055 AMERICAS Tel: +1 800 250 5819 (USA toll free) EUROPE Tel: +44 208 144 1405 Fax: +44 208 289 3542 Info: info@beamcommunications.com Support: support@beamcommunications.com www.beamcommunications.com...
