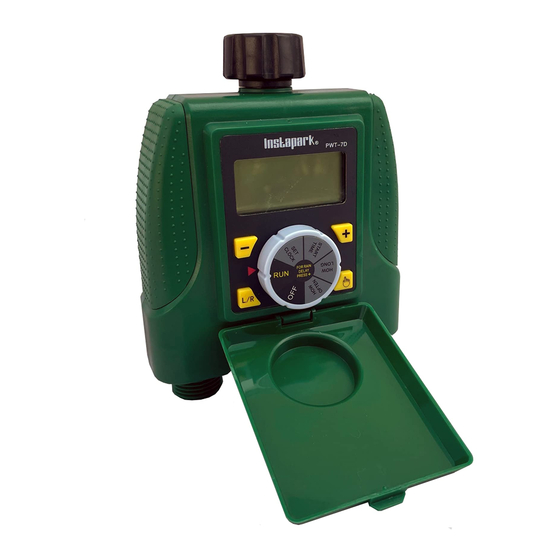

TWO OUTLET ELECTRONIC WATER TIMER
For watering use with outdoor home water faucet only. Do not use indoor or with appliance. Use only with pressures of 60
PSI (4 BAR) max. Do not use with water exceeding 100°F (38°C). Do not use on outlet with "Y" connectors or other hose
accessories. Detach and drain before freezing weather season

INSTALLING THE BATTERIES

• Remove the tray from the back of the timer by sliding it out
• Insert 2 AA (1.5V) alkaline batteries (not included) onto the battery tray, then
reinsert the tray to the back of the timer.
• Replace battery every year, when low battery is indicated on the screen or when
. –
long unattended use

PROGRAMMING THE TIMER–

• Rotate the dial to the positions indicated for setup
• Press L/R button to switch between the left and the right outlet for programming
• To maintain water pressure both Left and Right outlets will not operate concurrently, it will only work one side at a time.
Note: The dial should be in the RUN position for the timer to operate (Programed Mode or Manual Mode)

SET CLOCK

• Rotate the dial to SET CLOCK
• Press the + or – button to advance or reverse the clock time
(Hold the button to advance the timer quicker)

START TIME

• Rotate the dial to START TIME
• Press L/R to choose left or right valve
• Press the + or – button to set the start time (hold the button to advance the time quicker)

HOW LONG

• Rotate the dial to HOW LONG
• Press the + or – button to set the length of the watering time (1 MIN up to 360 MINS)

HOW OFTEN

• It allows you to set the program to repeat from 1HR, 2HRS, 4HRS, 12 HRS
and 1-7 days.
• Rotate the dial to HOW OFTEN
• Press the + or – button to set the frequency
PWT-7D MANUAL
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PWT-7D and is the answer not in the manual?

Questions and answers

james h. dyer
May 17, 2025

the top inlet broke off

1 comments:
Mr. Anderson
May 23, 2025

If the top inlet of the Instapark PWT-7D is broken, you should avoid applying side load by not attaching it directly to a rigid spigot. Instead, use a short hose (about 3 feet) between the spigot and the timer to reduce stress on the fittings. If the damage is beyond repair, contact customer service for a replacement, as others have received replacements after reporting issues.

This answer is automatically generated

Suzanne
May 19, 2025

the right side of my program only shows it operating at 18:30, when I am trying to have it start at 6:30am. the clock itself is not set for a 24hr clock, so what do I need to do to have the right port operate at the correct time?

Subscribe to Our Youtube Channel

Summary of Contents for Instapark PWT-7D

  • Page 1 PWT-7D MANUAL TWO OUTLET ELECTRONIC WATER TIMER For watering use with outdoor home water faucet only. Do not use indoor or with appliance. Use only with pressures of 60 PSI (4 BAR) max. Do not use with water exceeding 100°F (38°C). Do not use on outlet with “Y” connectors or other hose accessories.
  • Page 2 RUN– • Rotate the dial to RUN • The timer will water according to the programmed time, duration and frequency that’s being set. • The start and cycle duration are maintained during OFF or RUN mode. • The dial must remain in RUN position in order for the cycle to run. If the dial is turned to any other position, the watering will stop.
