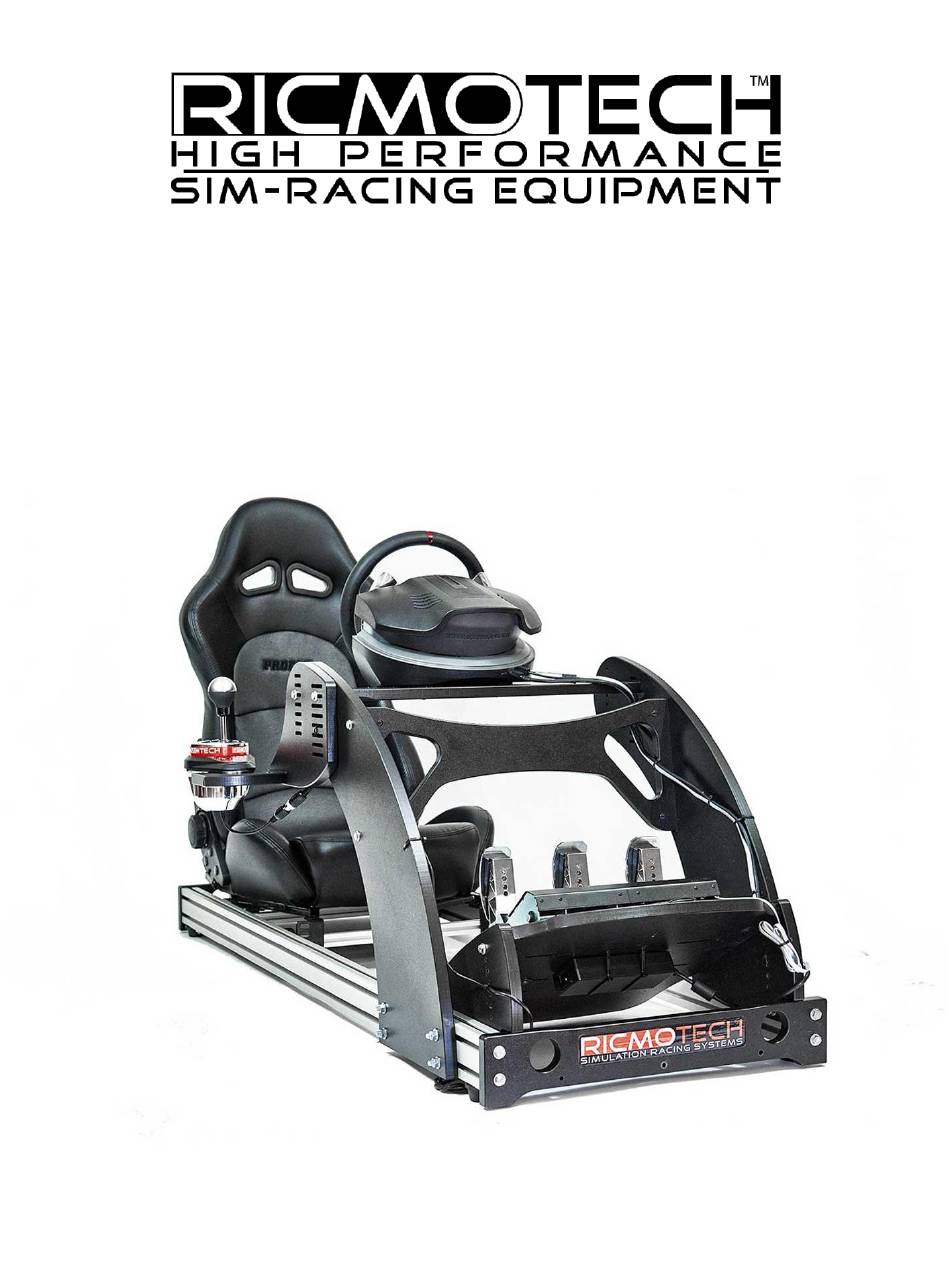

- Page 1 AP-Xtreme Lite Sim-Racing Chassis Assembly Guide...
- Page 3 Tools needed: ½” Wrench 5/8” Wrench 10mm Wrench Tape Measure Blanket or soft surface to work on Assembly Time: About 2 hours Please call us if you have any problems during the assembly process. 305-417-9241...
- Page 4 Panels Included Item Image Code...
- Page 5 (2 Tall & 2 Short)
- Page 6 Extrusion Profile Item Code Size Image 3” x 1.5” x 60” 1” x 1” x 18”...
- Page 7 Hardware Included Item Code Description Image Hex Nut ¼-20 Hex Nut 5/16-18 Dowel Nut ¼-20 Flat Washer ¼ Flat Washer 5/16 C1-1 Carriage Bolt ¼-20 x 0.50 C2-2 Carriage Bolt 5/16-18 x 1.25 H1-3 Hex Bolt ¼-20 x 2.25 H1-4 Hex Bolt ¼-20 x 3.00...
- Page 8 H2-2 Hex Bolt 5/16-18 x 1.75 Flat Head ¼-20 x 1.50 Hex Bolt M6 x 30...
- Page 9 Typical example of how to fasten parts to aluminum profile slots. Step 2. Place part to be secured over bolt then place washer followed by nut. Step 1. Slide Bolt into profile slot Step 1 H2-2 x 4 E1 Rails x 2 W2 x 4 B51 Front...
- Page 10 Step 2 C2-2 x 4 W2 x 4 N2 x 4 Step 3 N3 x 4 B4 x 1 H1-3 x 4 W1 x 4...
- Page 11 Step 4 B5 x 2 C2-2 x 8 W2 x 8 N2 x 8 Step 5 N3 x 4 W1 x 4 H1-3 x 4...
- Page 12 Step 6 F1 x 2 C1-1 x 2 Step 7 C2-2 x 8 W2 x 8 N2 x 8...
- Page 13 Step 8 W2 x 4 H2-2 x 4 Step 9 W1 x 4 N3 x 4 H1-3 x 4...
- Page 14 Step 10 OPTIONAL SHIFTER MOUNT N3 x 2 W1 x 2 H1-3 x 2 Step 11 Replace H1-3 with H1-4 to attach shifter mount...
- Page 15 C1-1 x 4 W1 x 4 N1 x4 When mounting a Ricmotech provided Procar seat, use the hardware indicated and mount to the front or rear of the transverse seat cross-members. Step 13 Mount the wheel, pedals and shifter B1 bolts and W1 washers.
