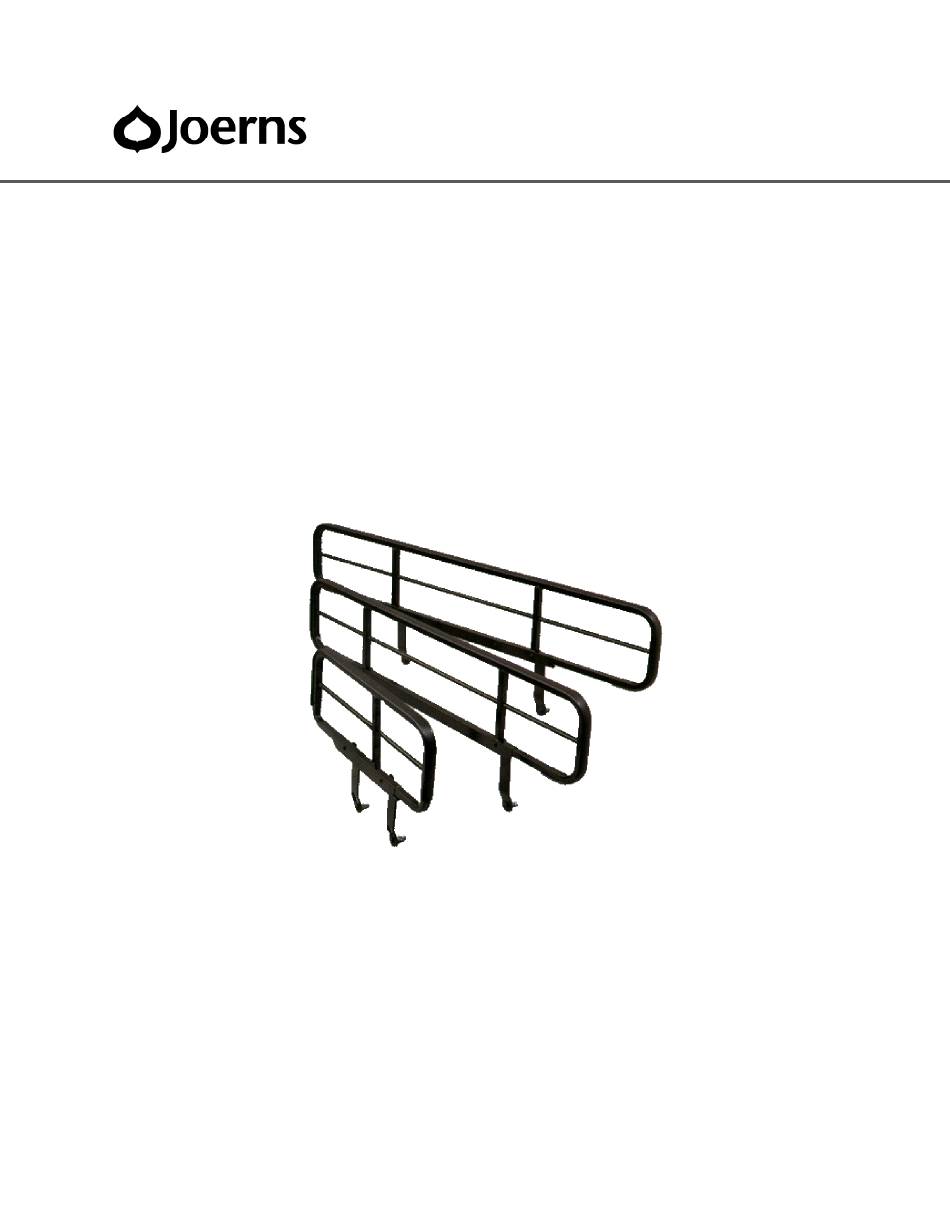

- Page 1 User-Service Manual Joerns Assist Device and Side Rails ® Vari-Care Models To avoid injury, read user’s manual before using.
-
Page 2: Important Precautions
ANY openings within the bed system allow a resident to get his/her head or neck lodged within Joerns assist devices or side rails are designed to be these openings. Failure to do so could result in serious used with specific Joerns bed frames. - Page 3 Vari-Care assist devices and side rails. Joerns Assist Devices are developed with safety, comfort and That is why Joerns offers a wide array of compliance convenience of both residents/patients and caregivers options. We assist customers in selecting compliant in mind.
- Page 4 4.30 TO TOP OF SLEEP DECK F168 67.00 F1576C 58.00 (for 76" beds) 15.00 11.25 4.41 LARGEST GAP IN RAIL BODY APPROX. 4.30 TO TOP OF SLEEP DECK F1580C (for 80" beds) © 2014 Joerns Healthcare • 6110015 RevJ • 14-2315...
- Page 5 For older model beds, contact product service Joerns Healthcare recommends the use of a support surface with minimum dimensions of 35" in width by 6" in depth. Support surfaces used in conjunction with beds should be properly evaluated relative to state and federal guidelines.
- Page 6 80" EasyCare 2000-2004 Note: Latch must face the foot end of the bed. F1576C For 76" EasyCare 2000-2004 Retaining Clip Note: Latch must face the foot end of the bed. © 2014 Joerns Healthcare • 6110015 RevJ • 14-2315...
- Page 7 12551015 10-32 x 1/4" Screw F168 Not included in N832 Full Rail Mount Kit. Shown for reference only Figure 1 CARE 100 BEDS ALIGNMENT LABEL B330 AND CARE 100 Figure 2 © 2014 Joerns Healthcare • 6110015 RevJ • 14-2315...
- Page 8 Important Note: When attaching brackets, ensure that with the cross member located closest to the head wires are not caught between the brackets and the panel. frame. Figure 3 Figure 4 © 2014 Joerns Healthcare • 6110015 RevJ • 14-2315...
- Page 9 Figure 6. Tighten the bolts and nuts fully. Approximate location of the N832 mounting brackets on B300, B500 and Care 100. This is not the final fixed location. Figure 5 Figure 6 © 2014 Joerns Healthcare • 6110015 RevJ • 14-2315...
- Page 10 Retaining clips are located Warning: Retaining clips must be inserted on all the rail mounting horizontally. Failure to do so could result in brackets. Secure before use. serious injury or death. Figure 7 © 2014 Joerns Healthcare • 6110015 RevJ • 14-2315...
- Page 11 The latch on both assist devices must face toward the center of the bed, so they operate properly. Figure 19 Figure 20 Figure 21 Figure 22 © 2014 Joerns Healthcare • 6110015 RevJ • 14-2315...
- Page 12 Joerns Healthcare Warranty Program for all Joerns Assist Devices and Side Rails Joerns assist devices and side rails are guaranteed for Joerns Healthcare’s obligation under this warranty is a period of 12 months from the date of delivery against limited to supplying replacement parts, servicing or...
