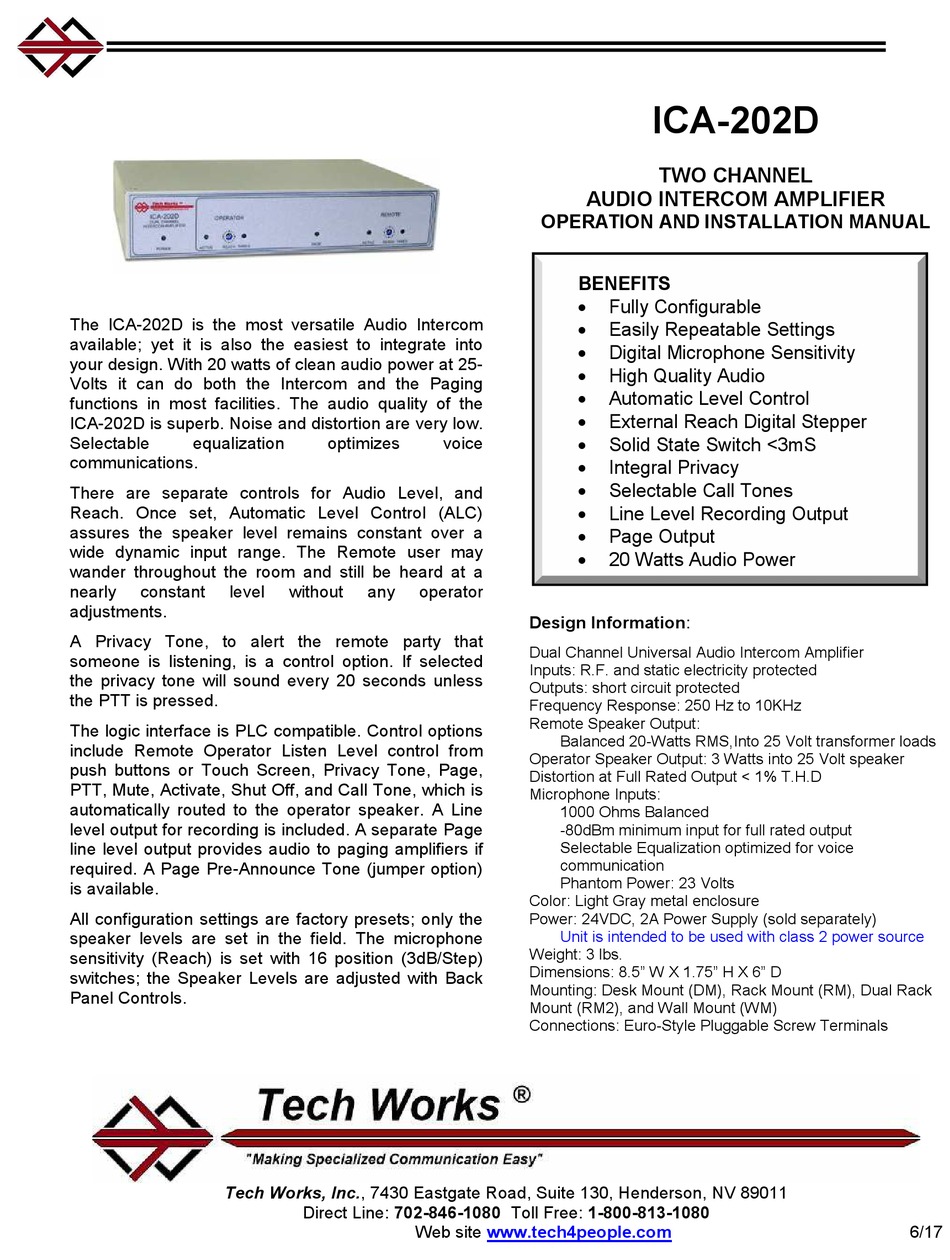

Tech Works ICA-202D Operation And Installation Manual

The ICA-202D is the most versatile Audio Intercom
available; yet it is also the easiest to integrate into
your design. With 20 watts of clean audio power at 25-
Volts it can do both the Intercom and the Paging
functions in most facilities. The audio quality of the
ICA-202D is superb. Noise and distortion are very low.
Selectable equalization
communications.
There are separate controls for Audio Level, and
Reach. Once set, Automatic Level Control (ALC)
assures the speaker level remains constant over a
wide dynamic input range. The Remote user may
wander throughout the room and still be heard at a
nearly constant level
adjustments.
A Privacy Tone, to alert the remote party that
someone is listening, is a control option. If selected
the privacy tone will sound every 20 seconds unless
the PTT is pressed.
The logic interface is PLC compatible. Control options
include Remote Operator Listen Level control from
push buttons or Touch Screen, Privacy Tone, Page,
PTT, Mute, Activate, Shut Off, and Call Tone, which is
automatically routed to the operator speaker. A Line
level output for recording is included. A separate Page
line level output provides audio to paging amplifiers if
required. A Page Pre-Announce Tone (jumper option)
is available.
All configuration settings are factory presets; only the
speaker levels are set in the field. The microphone
sensitivity (Reach) is set with 16 position (3dB/Step)
switches; the Speaker Levels are adjusted with Back
Panel Controls.
Tech Works, Inc., 7430 Eastgate Road, Suite 130, Henderson, NV 89011
optimizes voice
without any operator
Direct Line: 702-846-1080 Toll Free: 1-800-813-1080
Web site
ICA-202D
TWO CHANNEL
AUDIO INTERCOM AMPLIFIER
OPERATION AND INSTALLATION MANUAL
BENEFITS

Fully Configurable

Easily Repeatable Settings

Digital Microphone Sensitivity

High Quality Audio

Automatic Level Control

External Reach Digital Stepper

Solid State Switch <3mS

Integral Privacy

Selectable Call Tones

Line Level Recording Output

Page Output

20 Watts Audio Power
Design Information:
Dual Channel Universal Audio Intercom Amplifier
Inputs: R.F. and static electricity protected
Outputs: short circuit protected
Frequency Response: 250 Hz to 10KHz
Remote Speaker Output:
Balanced 20-Watts RMS,Into 25 Volt transformer loads
Operator Speaker Output: 3 Watts into 25 Volt speaker
Distortion at Full Rated Output < 1% T.H.D
Microphone Inputs:
1000 Ohms Balanced
-80dBm minimum input for full rated output
Selectable Equalization optimized for voice
communication
Phantom Power: 23 Volts
Color: Light Gray metal enclosure
Power: 24VDC, 2A Power Supply (sold separately)
Unit is intended to be used with class 2 power source
Weight: 3 lbs.
Dimensions: 8.5" W X 1.75" H X 6" D
Mounting: Desk Mount (DM), Rack Mount (RM), Dual Rack
Mount (RM2), and Wall Mount (WM)
Connections: Euro-Style Pluggable Screw Terminals
www.tech4people.com 6/17
