Summary of Contents for ELBER MVDS2

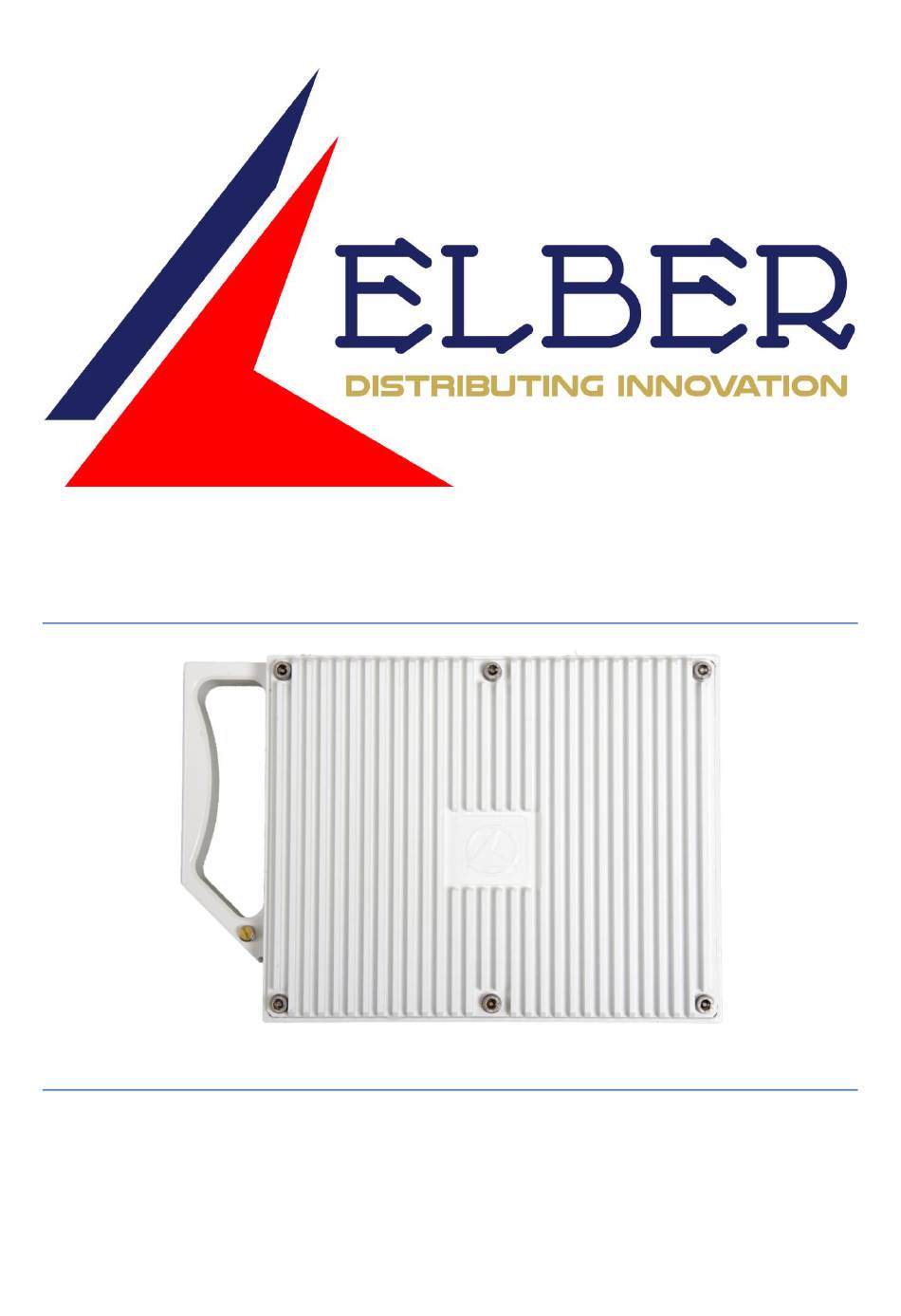

- Page 1 MVDS2 User Manual System: MVDS2 Release: 1.1 Author: Simone Canepa Page 1 of 25 Version 1.1...
-
Page 2: Table Of Contents
Summary. SUMMARY.................................. 2 FIGURE INDEX..............................2 GENERAL DESCRIPTION............................4 INSTALLATION..............................4 TECHNICAL SPECIFICATIONS..........................5 ............................5 ENERAL SPECIFICATIONS ........................... 5 ECHANICAL SPECIFICATIONS ............................5 YSTEM SPECIFICATIONS 4.3.1 Transmitters ..............................5 4.3.1 Receivers ............................... 6 WEB INTERFACE. - Page 3 ONFIG 28: A ..............................22 IGURE LARM BUTTON 29: W ..........................23 IGURE NTERFACE LARM 30: C MVDS2 ............................24 IGURE ONNECTORS 31: : D MVDS2 ............................. 24 IGURE IMENSIONS 32: C MVDS2 ............................25 IGURE ONNECTORS 33: D MVDS2 ............................
-
Page 4: General Description
2 General Description. MVDS2 is the new version of Elber Multichannel audio/video distribution system; it has been designed to transmit or transfer combined DVB-S/S2 carriers or full satellite transponders at Ku-band frequencies. MVDS2 is a fully weatherproof IP65 housing suitable for outdoor installations in harsh environments, available in two version, standard or high power;... -
Page 5: Technical Specifications
4 Technical Specifications. 4.1 General specifications. Operating temperature -10°C ÷ 55°C range Relative Humidity 0 ÷ 95°C condensing Power supply 22 ÷ 28 V (2 pin connector) Maximum Power < 125 W (typical 100 W for Tx 12 GHz) consumption Tx (typical 80 W for Tx 14 GHz) Maximum Power... -
Page 6: Receivers
34.0 dBm high power option on 14.00-14.50 GHz 34.0 dBm high power option on 13.50-14.00 GHz 31.5 dBm high power option on 10.70-11.70 GHz (10 carriers) 32.5 dBm high power option on 11.70-12.50 GHz =output power at 27.0 dBm standard power option on 14.00-14.50 GHz specified spectral 27.0 dBm standard power option on 13.50-14.00 GHz regrowth@1.0*symbol... - Page 7 Gain variation over ± 1.0 dB max temperature Gain variation over temperature (open ± 1.0 dB max loop) Gain variation over temperature (with ± 0.3 dB AGC) Fully adjustable; standard examples as follow. • 12.58 or 13.05 GHz @14.00-14.50 GHz •...
-
Page 8: Web Interface
5 Web interface. MVDS2 is equipped with a WEB interface for an easy and intuitive monitoring and equipment configuration. The connection to Web server can be achieved through dedicated cable directly to the outdoor unit. With a common Web browser (like Internet Explorer, Mozilla Firefox, Google Chrome, Opera, Safari…) it is possible to check equipment status and verify performances even remotely simply writing in the address bar the IP address of the equipment. -
Page 9: Common Parts
5.1 Common Parts. 5.1.1 Status. 2: W IGURE TATUS FORM OMMON ARAMETERS The upper part of the status page (home page of the web interface) shows general information such as the software versions, S/N, P/N. 5.1.2 Controller. 5.1.2.1 Controller Tab – Customer. 3: W –... -
Page 10: Controller Tab - Network
5.1.2.2 Controller Tab – Network. 4: W – N IGURE ONTROLLER ETWORK ARAMETERS This frame let check and modify network parameters of the user interface. IP Address, Netmask and Gateway Address can be modified by the user writing in the dedicated text box while Mac Address is read-only. -
Page 11: Controller Tab - Traps Manager
5.1.2.3 Controller Tab – Traps Manager. 5: W – T IGURE ONTROLLER RAPS ANAGER Field Description Trap_receivers_0 to 4 Let the user set up to 5 destinations for SNMP traps sending Trap_to_send Let the user set the number of messages to be sent as Trap for every alarm event Udp_trap_port Let the user set the UDP port for Traps sending (default port = 162) 6: W... -
Page 12: Controller Tab - Tools
5.1.2.4 Controller Tab – Tools. 7: W – T IGURE ONTROLLER OOLS System Time Indication of the system Time Local Time Indication of the local Time New Time Text box to modify local time. The “Reset Command” subsection let the user send a reset pulse to related subsections separately, i.e. the RF Board microcontroller, the system controller and the whole system. -
Page 13: Upgrade
5.1.3 Upgrade. 9: W IGURE PGRADE FORM This form let the administrator of the system upgrade the units. Clicking on Full Upgrade, the user is asked to select a file browsing on its laptop that will be immediately sent to the system controller, starting the update process;... -
Page 14: Log
5.1.4 Log. 10: W IGURE Page 14 of 25 Version 1.1... - Page 15 11 : W – IGURE OG FORM AVAILABLE LOG 12: W – IGURE OG FORM AVAILABLE LOG EXPANDED The equipment offers an operation log service that can be checked in this tab of the web interface. In left part of the web page, the form concerning available logs is present, grouped by: Daily report Last day Last week...
-
Page 16: Ransmitters
5.2 Transmitters. 5.2.1 Status. 13: T IGURE TATUS The status page is composed of 6 blocks; in the right part, the grey box includes system information, that are: • Firmware version • Firmware revision • Power consumption (in W) • Relative Humidity 14: S IGURE... -
Page 17: Igure 15: L-Band Nput Tatus
15: L-B IGURE NPUT TATUS For the L-band stage, it’s available the input level measurement in dBm as shown in Figure 15. 16: K IGURE ONVERTER TATUS The Ku converter board presents following measurements and/or information: 1. Temperature 2. Indication of oscillator frequency 3. -
Page 18: Config
17: P IGURE OWER MPLIFIER TATUS The Power Amplifier board presents following measurements and/or information: 1. Temperature 2. Configured output power in % 3. Indication of AGC stage enabling 4. Indication of current absorbed by final amplifier 5. Indication of current absorbed by driver stages (in 12 GHz version only) 6. -
Page 19: Igure Eb Nterface Onfig Age - 1
System Traps Let the user enable the Trap sending for System alarm events Power point in dB Let the user set the power out between a Lower threshold and a Higher threshold, after intermodulation check and power fine tuning. 19: W - 1. -
Page 20: Alarm
5.2.3 Alarm. From the home page, by clicking on Alarm button, a new window opens. 21: A IGURE LARM BUTTON 22: W IGURE NTERFACE LARM Figure 22 shows alarms of the equipment. The overcurrent alarm can be reset clicking here. This is very important because, in case of Over Current event, the final amplifier is shut down until the alarm is reset. -
Page 21: Receivers
6 Receivers. 6.1.1 Status. 23: R IGURE TATUS The status page is composed of 3 blocks; in the right part, the grey box includes system information, that are: • Firmware version • Firmware revision • Power consumption (in W) • Relative Humidity 24: S IGURE... -
Page 22: Config
6.1.2 Config. From the home page, by clicking on Config button, a new window opens. 26: C IGURE ONFIG BUTTON To modify any field shown in Figure 26 it is necessary to click on the Apply button to validate. Hereunder the list of field and related description. 27: W IGURE NTERFACE... -
Page 23: Igure Eb Nterface Larm Age
29: W IGURE NTERFACE LARM Figure 29 shows alarms of the equipment. Page 23 of 25 Version 1.1... -
Page 24: Mechanics And Connectors
7 Mechanics and connectors. 7.1 Transmitters. 30: C MVDS2 IGURE ONNECTORS Description Function RF IN RF input connector N(f) type RF OUT Output waveguide flange WR75 (PBR120) DC IN N connector M&Control Control Connector 14 pin Amphenol Code: MS3114A12-14P Valve Gore Protection valve Status &... -
Page 25: Receivers
7.2 Receivers. 32: C MVDS2 IGURE ONNECTORS Description Function RF OUT RF output connector N(f) type RF IN Input waveguide flange WR75 (PBR120) DC IN N connector M&Control Control Connector 14 pin Amphenol Code: MS3114A12-14P Valve Gore Protection valve Status & Ethernet Activity Led...
