Installation,
Operating and
Maintenance
Instructions
XL
Series
Actuators
Contents
Important Safety Procedures
Mounting and
Operating Instructions
Solenoid Valves on
Spring Return Actuators
Complete Disassembly-
Double Acting Actuator
Complete Disassembly-
Spring Return Actuator
Assembly Instructions-
Double Acting Actuator
Assembly Instructions-
Spring Return Actuators
10
11
Testing and Cycling of
Infrequently Used or
Stored Actuators
12
13
14
Quality
Assured
registered
management
systems
to ISO 9001
1
Important Safety
Procedures
Qualified maintenance personnel
should read and follow these
straightforward instructions.
1
ALWAYS disconnect the Air and Electrical
2
Supplies before carrying out any form
of maintenance on an Actuator.
3
4
Always contain the Spring tension with
HYTORK Retractor Rods as explained in
5
Section 7.2. Follow instructions for using
6
the Retractor Rods carefully.
7
Never attempt to remove the Pistons
from the Actuator body by using air
8
pressure when the End Caps have
been removed.
9
Do not shorten or distort the SAFEKEYS;
correct length SAFEKEYS are supplied
with the Maintenance Kit.
When replacing items use only those
supplied by HYTORK or its Stocking
Distributors.
Numbers in brackets (#) refer to parts
on the exploded XL diagram (Fig. 1).
Read the relevant sections
carefully before continuing.
2
Mounting and
Operating
Instructions
2.1 Actuator to Valve Installation.
The mounting hole sizes and bolt hole
circle are to ISO 5211. These holes are
ISO METRIC COARSE on metric models
(UNC COARSE on imperial models for the
USA) as standard. When mounting the
Actuator to a Valve using a Mounting Kit,
1
the Pinion drive, coupling device and Valve
Stem should be centred and concentric to
prevent any side loading to the bottom
Pinion Radial Bearing and Valve Stem
Seal area.
Ensure that the square coupling shaft
to be operated is a close, but free
sliding fit into the female drive in the
Actuator shaft (4).
2.2 Maximum Operating Pressure.
XL models 45 to 2585
Do not exceed 8.2 bar (120 psi).
XL model 4580
Do not exceed 7 bar (100 psi).
2.3 Operating media.
Use clean, dry or lubricated air. Other
medias may be used, but consult your
local HYTORK VALVE AUTOMATION
CENTER for confirmation as to suitability.

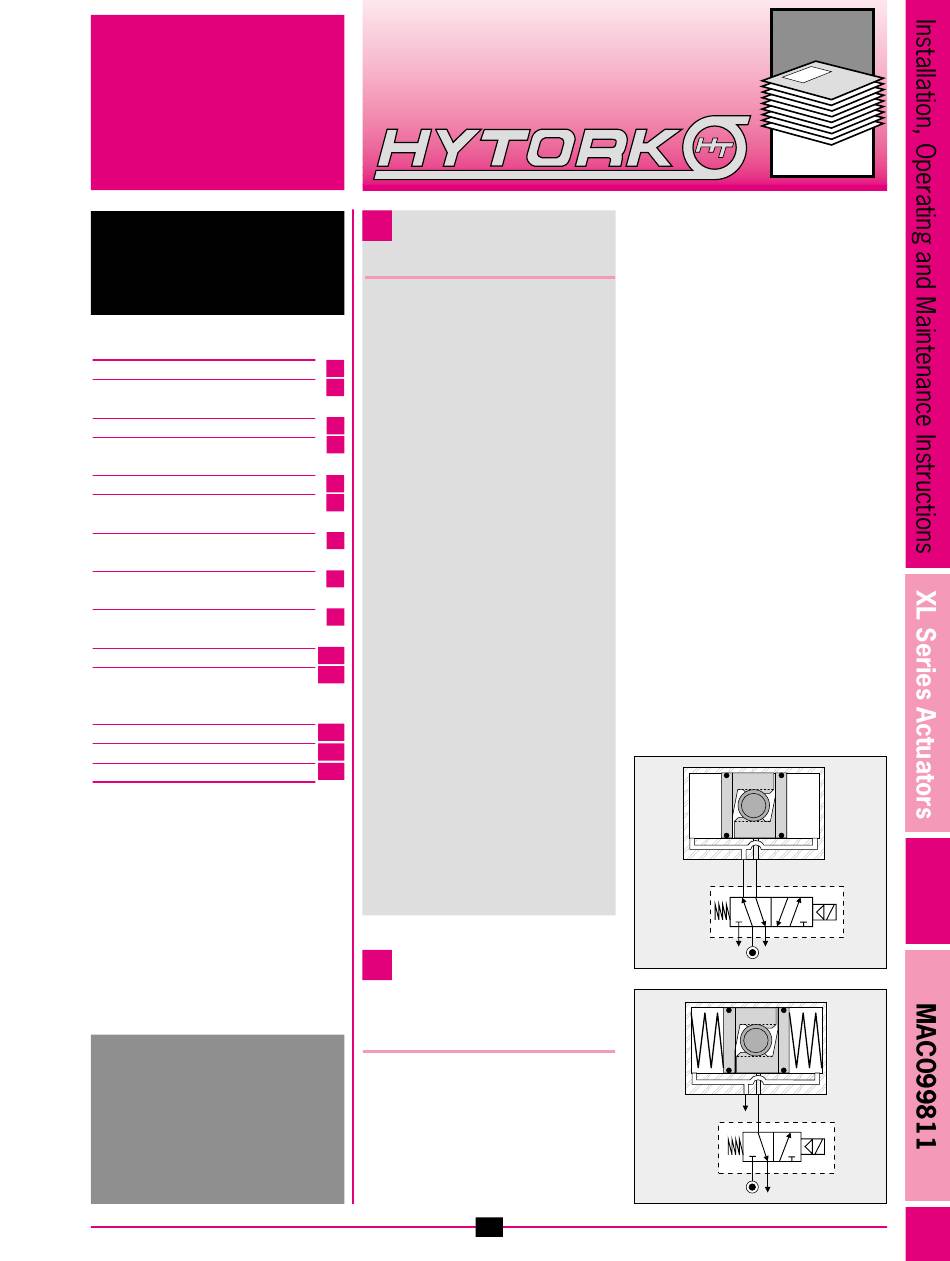

Fig. 2a
(Refer to Fig. 1)
Fig. 2b
Hytork
Dossier
MAC099811
