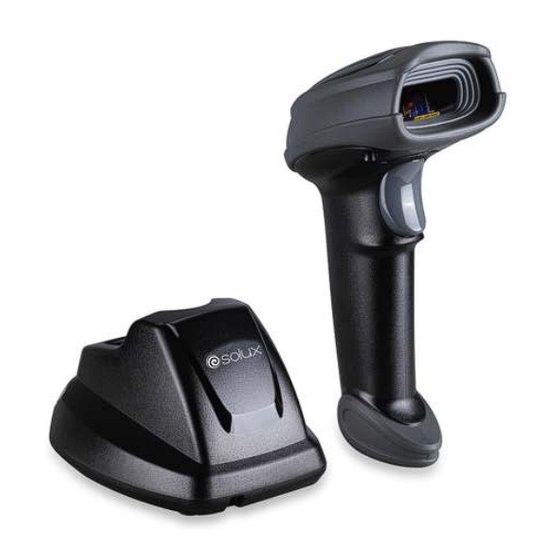

SX-BS-0685 Cordless Image
Scanner User Manual
Version: SX-BS-0685_UM_EN_V1.1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-BS-0685 and is the answer not in the manual?

Questions and answers

Related Manuals for Solux SX-BS-0685

Summary of Contents for Solux SX-BS-0685

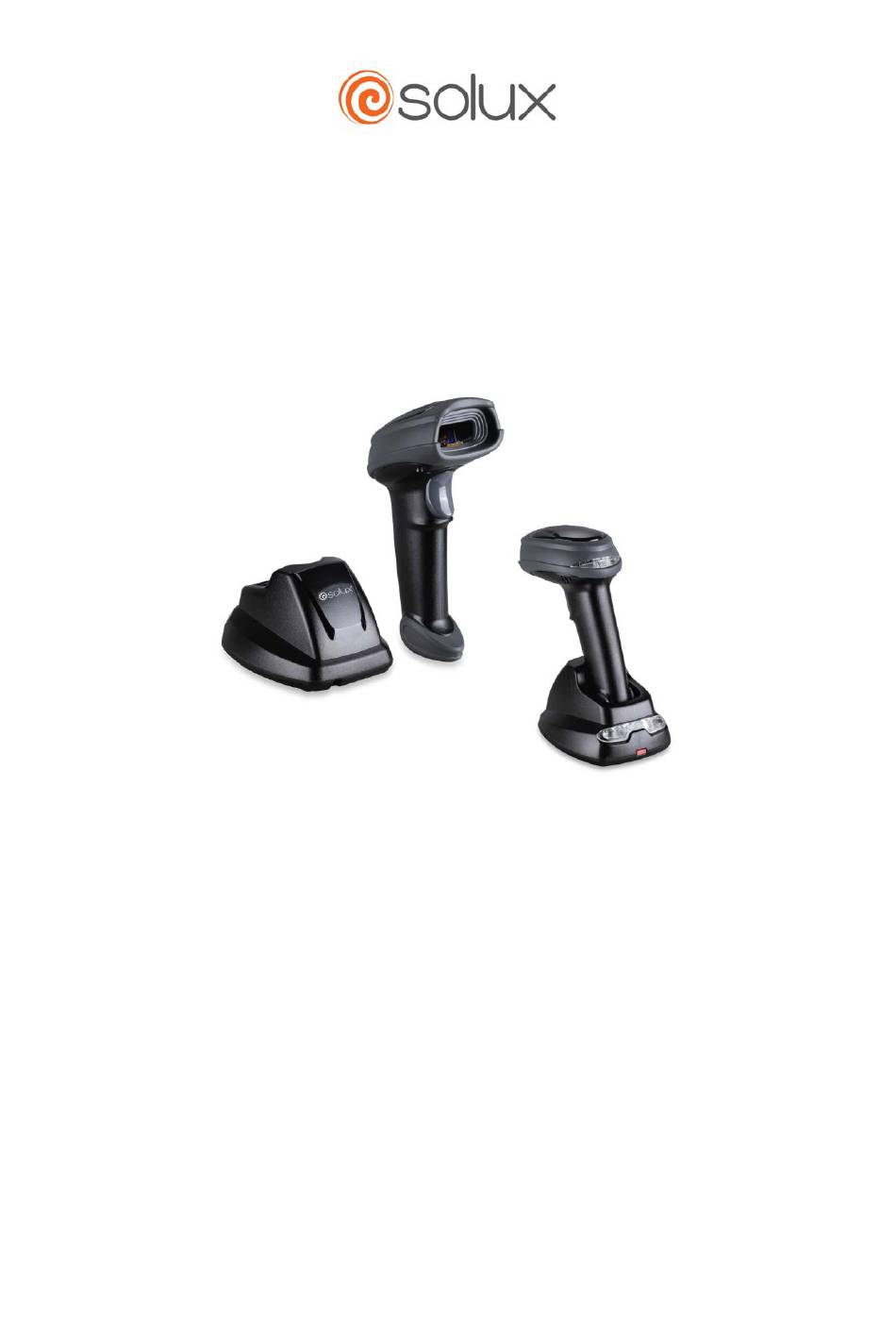

  • Page 1 SX-BS-0685 Cordless Image Scanner User Manual Version: SX-BS-0685_UM_EN_V1.1.1...
  • Page 3 Notice Make sure you carefully read the following information to ensure that your barcode scanner is able to perform at the level for which it is designed. All software, including firmware, furnished to the user is on a licensed basis. The right is reserved to make changes to any software or product to improve reliability, function, or design.
  • Page 4 Safety precautions – Danger! Be sure to read the following safety precautions carefully before trying to use the barcode scanner for the first time. Keep this manual in handy place for future reference. Danger! Lithium-ion battery Never allow the battery to become wet. Water can create the danger of battery heat emission, explosion, and fire.
  • Page 5 Safety precautions – Warning! Warning! Disassembly and modification Never try to disassemble or modify the unit in any way. High voltage inside creates the danger of electrical shock. Interior parts and components Never touch interior high-voltage parts or components. Doing so creates the danger of electrical shock.
  • Page 6 Cradle with RS-232 cable and adaptor Power the cradle only with a power outlet whose voltage matches that marked on the adaptor specified in this manual. Avoid conditions that can cause damage or breaks in the power cord. Do not place heavy objects on the power cord.
  • Page 7 Safety precautions – Caution! Caution! Foreign objects Take care to ensure that metal or combustible objects are not inserted into the openings of the unit. Such objects create the danger of fire and electrical shock. Location Do not locate the unit on a surface that is unstable or uneven. Doing so creates the danger of the unit falling, which can cause personal injury.
  • Page 8 Lithium-ion battery Never leave the battery in an area expose to direct sunlight, in a car parked in direct sunlight, or any other very hot area. Doing so creates the danger of heat emission and fire, as well as deterioration of battery performance and shortening of its service life. Do not use the battery in areas where static electricity is being generated.

  • Page 9: Table Of Contents

    Contents Contents ..............................vii 1 Specifications ............................1 1-1 Technical specifications ........................1 1-2 Default setting for each barcode ...................... 3 2 Get started .............................. 4 2-1 Cable connector pin-outs descriptions for cradle ................4 2-2 Dimensions ............................5 2-3 Parts of the scanner ......................... 6 2-4 Charge battery ..........................
  • Page 10 6 ASCII Table ............................88 7 Barcode representing non-printable character ................89 8 Return default parameters........................90 9 Display firmware version ........................91 10 Configuration alphanumeric entry barcode ................... 92 viii...

  • Page 11: Specifications

    1 Specifications 1-1 Technical specifications Handheld unit Radio Link 2.4-2.5GHz, Bluetooth 4.0, Class 2 Working Range 30 meters (open air) Dimensions Length × Width × Depth: 90.2 × 70 × 180 mm Weight 225 g Color Gray Indicator LED, Beeper, Vibrator Operating Mode Handheld Programming...
  • Page 12 20 mil QR (20 chars) 0 mm – 215 mm 0 mm – 345 mm 0° to 50°C (32° to 120°F), operating Temperature -40° to 60°C (-40° to 140°F), storage Humidity 5% to 95% (non-condensing) EMC: EN55032, EN55024 Electrical Safety: EN60950-1 Photobiological Safety: EN62479:2010 Safety Illumination: 0~100,000 LUX...

  • Page 13: Default Setting For Each Barcode

    1-2 Default setting for each barcode Min. code Proprietar Read Check digit Check digit Code type length enable verification transmission code ID code ID √ √ √ UPC-A (12) √ √ √ UPC-E √ √ √ UPC-E1 √ √ √ EAN-13 (13) √...

  • Page 14: Get Started

    2 Get started 2-1 Cable connector pin-outs descriptions for cradle Pin 10 Pin 1 Figure 2-1 Cable connector interface pin-outs The pin-outs descriptions in Table 2-1 apply to the cable connector on the cradle and are for reference only. Table 2-1 Cable connector pin-outs descriptions RS232 Keyboard (PS/2) Power (+5V)

  • Page 15: Dimensions

    2-2 Dimensions...

  • Page 16: Parts Of The Scanner

    2-3 Parts of the scanner ④ ① ③ ② ⑤ Figure 2-2 Handheld unit ① Scan window ② Trigger (Press to triggr / Long press 3 seconds to turn on) ③ Beeper ④ On base indicator (Blue LED) ⑤ Successful decoding indicator (Green LED) / Communication fail indicator (Red LED) / Charging indicator (Red/Green LED) ⑥...

  • Page 17: Charge Battery

    2-4 Charge battery 1. Please charge the battery before the first time of use. The charge indicator (red LED) on the handheld unit is turned on when the charging is in process. When the charging process completes, the red LED is turned off. 2.

  • Page 18: Installation Of Cradle

    2-5 Installation of cradle Note: If any of the below operation is incorrect, turn off the power immediately and check the scanner for any improper connections. Go through all steps again. 2-5-1 PS/2 keyboard cable Plug one end of the PS/2 keyboard cable to the cradle, one end to PS/2 port on PC, and one end to the keyboard.

  • Page 19: Progamming Menus

    3 Progamming menus 3-1 Example 1: Single-parameter setting by scanning 1D barcodes Important notes: 1. During the process of programming, LED is lighting to indicate the programming correctness. LED will go off if any incorrect programming operation performed. 2. After each successful programming, LED will go off and the scanner will beep twice. 3.

  • Page 20: Example 2: Multiple-Parameter Setting By Scanning A Qr Code Barcode

    3-2 Example 2: Multiple-parameter setting by scanning a QR code barcode User can customize a QR code barcode to set multiple parameters. The scanner can set multiple parameters by scanning this single QR code barcode. 1. The data format of the QR code barcode is as following. P aram et er set 1 P aram et er set 2 ···...

  • Page 21: Bluetooth Communication Setting

    3-3 Bluetooth communication setting 3-3-1 example The handheld terminal shall ensure that the connection of the base and PC is successful before communicating with the base. Connect the cradle: The handheld terminal scans the connection barcode at the bottom of the cradle, and the handheld terminal will attempt to connect to the cradle, at the same time, the handheld terminal will make a beep-beep-beep sound.

  • Page 22: Batch Data Mode

    3-4 Batch data mode Disable- Do not batch data. The handheld unit attempts to transmit every scanned barcode. If the transmission is failed, the barcode data is ignored. Out-of-range batch－ The handheld unit starts storing barcode data when it loses its connection to a remote device (for example, when a user holding the handheld unit walks out of range).
  • Page 23 Disable (Live transmission) Batch Data mode （Automatically cleared stored data after uploading data) Batch Data mode （Do not clear stored data after uploading data) Clear Batch Data...

  • Page 24: Keyboard Wedge Interface For Cradle

    3-5 Keyboard wedge interface for cradle Keyboard type: As a keyboard interface, the scanner supports most of the popular PCs and IBM terminals. Keyboard layout: The scanner supports different national keyboard layouts. Clock period: According to the PS2 protocol, the clock is provided by the device, e.g. keyboard or scanner, with the period between 60us to 100us.
  • Page 25 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry IBM AT, PS/2 Keyboard type Apple Mac compatibles Turkish F Turkish Q French Italian Spanish Keyboard layout Slovak Denmark Japanese German Belgian Russian Czech Character encoding system Refer to 3-8 Handheld scan & some global settings.
  • Page 26 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry 200 us 0 ms 10 ms Delay-after-compound-key 20 ms 40 ms 80 ms Alphabetic key Numeric key Numeric keypad Alt + keypad Disable Power-on simulation Enable 0 ms 5 ms 10 ms Inter-character delay 20 ms...
  • Page 27 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Enable Disable Caps Lock override Enable...

  • Page 28: Interface For Cradle

    3-6 RS-232 interface for cradle Flow control: None-The communication only uses TXD and RXD signals without any hardware or software handshaking protocol. RTS/CTS-If the scanner wants to send the barcode data to host computer, it will issue the RTS signal first, wait for the CTS signal from the host computer, and then perform the normal data communication.
  • Page 29 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry 1200 2400 4800 9600 19200 38400 57600 115200 None Parity Even 8 bits Data bit 7 bits 1 bit Stop bit 2 bits...

  • Page 30: Usb Interface For Cradle

    3-7 USB interface for cradle USB device type: HID keyboard– By setting, the scanner is used as a USB HID keyboard emulation device. The keyboard layout setting follows the setting of keyboard layout in 3-5 Keyboard wedge for cradle. USB virtual COM– By setting, the scanner emulate a regular RS232-based COM port. If a Microsoft Windows PC is connected to the scanner, a driver is required to install on the connected PC.
  • Page 31 Multiple-scan setting Alpha. Single-scan setting Option bar code Option entry HID keyboard HID keyboard for Apple Mac USB device type USB virtual COM Simple COM Port Emulation Turkish F Turkish Q French Italian Spanish Slovak Keyboard layout Denmark Japanese German Belgian Russian Czech...
  • Page 32 Multiple-scan setting Single-scan setting Alpha. Option bar code Option entry 5 ms 10 ms 20 ms 40 ms 60 ms Alphabetic key Numeric key Numeric keypad Alt + keypad...

  • Page 33: Handheld Scan & Some Global Settings

    3-8 Handheld scan & some global settings Scanning mode: Good-read off-The trigger button must be pressed once to activate scanning. The scanner will stop scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed.
  • Page 34 Decoder optimization: If it is enabled, the scanner will optimize the decoder with error correction. This function is not effective for all types of barcodes. Data output delay in continue-scan mode: If it is enabled, in the continue-scan mode, the scanner can store the data while continue-scanning.
  • Page 35 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Good-read off Momentary Alternate continue Scan mode Continue Good-read on Auto-detection- Good-read on Auto-detection- Good-read off Auto-detection sensitivity 4 seconds 8 seconds Standby duration 16 seconds 24 seconds 30 seconds...
  • Page 36 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 1 minute 1.5 minutes 2 minutes 5 minutes 7 minutes 10 minutes 15 minutes 20 minutes 30 minutes 45 minutes 1 hour 00-FF Same barcode delay time for 1D symbol 00-FF (50 ms) 00-FF Same barcode delay time for...
  • Page 37 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 00-66 Global G1-G6 string selection 00-66 (00: none ) Disable Element amendment Enable None Character output restraint Printable character only Alphanumeric character only Disable Decoder optimization Enable Data output delay in 00-FF continue-scan mode 00-99 (100 ms)

  • Page 38: Indication For Handheld Unit

    3-9 Indication for handheld unit Power on alert: After power-on the scanner will generate an alert signal to indicate a successful self-test. LED indication: After each successful reading, the LED above the scanner will light up to indicate a good barcode reading. Beeper indication: After each successful reading, the scanner will beep to indicate a good barcode reading, and its beep tone duration is adjustable.

  • Page 39: Decode Illumination And Decode Aiming Pattern

    3-10 Decode illumination and decode aiming pattern Decode illumination mode: Enable illumination causes the scanner to turn on the illumination to aid decoding. Disable illumination to turn off illumination for the scanner during decoding. Better quality images could be obtained with illumination support. The effectiveness of the illumination decreases as the distance to the target increases.
  • Page 40 Multiple-scan setting Single-scan setting Option bar code Option Alpha. Entry Always Off Decode illumination Flashing On when reading Always Off Always On Decode aiming pattern On before reading On when reading Disable decode illumination Level of decode illumination Middle High Always off Illumination mode of Auto-detection...

  • Page 41: Single Type Of Barcode Read

    3-11 Single type of barcode read 1D symbols read: A global setting of 1D symbols readability. 2D symbols read: A global setting of 2D symbols readability. Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Follow respective 1D symbol setting 1D symbols read All 1D Disable All 1D Enable...

  • Page 42: Dpm, Multiple Symbols, Structured Append Read, Etc

    3-12 DPM, Multiple symbols, Structured append read, etc. DPM format read: By setting Enable, the scanner can read 2D symbols in DPM (Direct Park Marking) format. Some barcodes in DPM format are shown below. Multiple symbols & structured append symbols read: 1) By setting Enable, the scanner allows to read multiple symbols with a single pull of the scanner's trigger.
  • Page 43 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable DPM format read Enable structured append Disable symbols read Enable Disable Mobile screen read Enable...

  • Page 44: Upc-A

    3-13 UPC-A Read: Format System character Data digits (10 digits) Check digit Check digit verification: The check digit is optional. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a succeeding reading.
  • Page 45 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <A>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros...

  • Page 46: Upc-E

    3-14 UPC-E Read: Format System character “0” Data digits (6 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-13 UPC-A.
  • Page 47 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <D>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros...

  • Page 48: Upc-E1

    3-15 UPC-E1 Read: Format System character “1” Data digits (5 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-13 UPC-A.
  • Page 49 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <D>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Expand to EAN-13...

  • Page 50: Isbn/Issn)

    3-16 EAN-13 (ISBN/ISSN) Read: Format Data digits (12 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. EAN-13 code ID setting: Refer to Code ID setting of 3-13 UPC-A.
  • Page 51 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-FF EAN-13 code ID setting 00-FF (ASCII) <A>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits Disable...

  • Page 52: Ean-8

    3-17 EAN-8 Read: Format Data digits (7 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-13 UPC-A.
  • Page 53 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <C>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncation/Expansion...

  • Page 54: Code 39 (Code 32, Trioptic Code 39)

    3-18 Code 39 (Code 32, Trioptic Code 39) Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is optional and made as the sum module 43 of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
  • Page 55 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <M>* 00-66 Insert group selection 00-66...
  • Page 56 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Code 32 Prefix “A” transmission Enable Disable Trioptic Code 39 read Enable Trioptic Code 39 Start/End Disable transmission Enable...

  • Page 57: Interleaved 2 Of 5

    3-19 Interleaved 2 of 5 Read: Format Data digits (Variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. There are two optional check digit algorithms: the specified Uniform Symbol Specification (USS) and the Optical Product Code Council (OPCC).
  • Page 58 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable Check digit verification OPCC Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <I>* 00-66 Insert group selection 00-66...

  • Page 59: Industrial 2 Of 5

    3-20 Industrial 2 of 5 Read: Format Data digits (variable) Max./Min. code length: Refer to Max./Min. code length of 3-18 Code Code ID setting: Refer to Code ID setting of 3-13 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-13 UPC-A.

  • Page 60: Matrix 2 Of 5

    3-21 Matrix 2 of 5 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 61: Codabar

    3-22 Codabar Read: Format Start character Data digits (variable) Check digit (optional) End character Check digit verification: The check digit is made as the sum module 16 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
  • Page 62 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry abcd/abcd ABCD/TN*E abcd/tn*e Disable Start/End transmission Enable Disable Start/End character equality Enable...

  • Page 63: Code 128

    3-23 Code 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min. code length: Refer to Max./Min. code length of 3-18 Code Code ID setting: Refer to Code ID setting of 3-13...
  • Page 64 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Reserved 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <K>* 00-66 Insert group selection 00-66...

  • Page 65: Ucc/Ean 128

    3-24 UCC/EAN 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max. /Min. code length: Refer to Max./Min. code length of 3-18 Code Code ID setting: Refer to Code ID setting of 3-13...
  • Page 66 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Read Disable Enable Check digit verification Disable Enable Check digit transmission Disable Reserved Max. code length 00-99 00-99 Min. code length 00-99 00-99 Code ID setting 00-FF 00-FF (ASCII) <K>* Insert group selection 00-66 00-66...

  • Page 67: Isbt 128

    3-25 ISBT 128 Read: Format “=” or “&” Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 68: Code 93

    3-26 Code 93 Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The check digit is made as the sum module 47 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 69: Code 11

    3-27 Code 11 Read: Format Data digits (variable) Check digit 1 (optional ) Check digit 2 (optional) Check digit verification: The check digit is presented as the sum module 11 of all data digits. Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your selected check digit verification method.
  • Page 70 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable One digit Check digit verification Reserved Reserved Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <V>*...

  • Page 71: Msi/Plessey

    3-28 MSI/Plessey Read: Format Data digits (variable) Check digit 1 (optional) Check digit 2 (optional) Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods of verifying check digits, i.e. Mod10, Mod10/10 and Mod 11/10. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits.
  • Page 72 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable Disable 1 digit (mod 10) Check digit verification Reserved Reserved Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <O>*...

  • Page 73: Uk/Plessey

    3-29 UK/Plessey Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.

  • Page 74: China Post

    3-30 China Post Read: Format 11 Data digits Max. /Min. code length: Refer to Max./Min. code length of 3-18 Code 39. The code length of China Post is 11. Code ID setting: Refer to Code ID setting of 3-13 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-13 UPC-A.

  • Page 75: China Finance

    3-31 China Finance Note: This type of barcode is not Omni-directionally decodable. The encodable character set includes numeric 0 to 9. Among the symbol of 0 to 9, 0 and 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical pattern;...
  • Page 76 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Only 9 converted to E Disable Assigned to 0 Assigned to 5(A) Assigned to 6(B) Assigned to 7(C) Leading character assignment Assigned to 8(D) Assigned to 9(E) Assigned to 1 Assigned to 2 Assigned to 3 Assigned to 4...

  • Page 77: Gs1 Databar (Gs1 Databar Truncated)

    3-32 GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Truncated is structured and encoded the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules. Read: Format 16 Data digits...

  • Page 78: Gs1 Databar Limited

    3-33 GS1 DataBar Limited Read: Format 16 Data digits Code ID setting: Refer to Code ID setting of 3-13 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-13 UPC-A. Conversion: Refer to Conversion of 3-32 GS1 DataBar (GS1 DataBar Truncated).

  • Page 79: Gs1 Databar Expanded

    3-34 GS1 DataBar Expanded Read: Format Data characters (variable) Code ID setting: Refer to Code ID setting of 3-13 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-13 UPC-A. Conversion: UCC/EAN 128- Refer to Code ID transmission of 3-42 String transmission, ]Cm will be identified as AIM ID.

  • Page 80: Pdf417

    3-35 PDF417 Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 81: Micropdf417

    3-36 MicroPDF417 Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 82: Qr Code

    3-37 QR Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 83: Data Matrix

    3-38 Data Matrix Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 84: Aztec Code

    3-39 Aztec Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Disable Read Enable...

  • Page 85: G1-G6 & C1-C2 & Fn1 Substitution String Setting

    3-40 G1-G6 & C1-C2 & FN1 substitution string setting Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS.
  • Page 86 Testing barcode: FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128 barcode, or a GS1 DataBar barcode can be substituted with a defined string. Truncate leading G5 string setting: By setting, a defined leading character or string can be truncated. Also a single character can be un-defined.
  • Page 87 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Prefix string setting 0-22 characters 00-FF None Suffix string setting 0-22 characters 00-FF <ENTER> 0D0A* 0-22 characters 00-FF Preamble string setting None 0-22 characters 00-FF Postamble string setting None Insert G1 string setting 0-22 characters 00-FF None...
  • Page 88 Multiple-scan setting Single-scan setting Option bar code Option Alpha. entry Once Repeat of a G5 character setting Defined times 01-22 Un-defined times (All) A un-defined character Truncate ending G6 string setting 1-22 defined characters 01-7F <0> Once Repeat of a G6 character setting Defined times 01-22 Un-defined times (All)

  • Page 89: G1-G4 String Position & Code Id Position

    3-41 G1-G4 string position & Code ID position Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Insert G1/G2/G3/G4 string position: The scanner offers 4 positions to insert strings among the symbol. In case of the insertion position is greater than the length of the symbol, the insertion of string is not effective.

  • Page 90: String Transmission

    3-42 String transmission Note: The information in this chapter is closely related to the chapter of String setting. Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Prefix transmission: By setting Enable, prefix will be appended before the data transmitted. Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.
  • Page 91 Multiple-scan setting Single-scan setting Alpha. Option bar code Option entry Prefix transmission Disable Enable Suffix transmission Disable Enable Disable Code name transmission Enable Preamble transmission Disable Enable Disable Postamble transmission Enable Disable Code ID transmission Proprietary ID AIM ID Code length transmission Disable Enable Disable...
  • Page 92 Multiple-scan setting Single-scan setting Alpha. Option bar code Option entry Keyboard wedge/USB RS-232 Keyboard wedge / USB / RS-232 All-non-printable-character string Disable transmission with string setting Enable Transmit the first N data characters only 01-99 Transmit the last N data characters only 01-99...

  • Page 93: Test Barcode Symbols

    4 Test barcode symbols UPC-A UPC-E UPC-E1 EAN-8 EAN-13 Code 39 Code 32 A908765439 Code 128 Interleaved 2 of 5 Industrial 2 of 5 (Default setting: Read disable) Matrix 2 of 5 Code 93...
  • Page 94 UCC/EAN 128 Code 11 (Default setting: Read disable) MSI/Plessey (Default setting: Read disable) UK/Plessey ISBN/ISSN China Post GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Limited GS1 DataBar Expanded...
  • Page 95 PDF417 12=890ab-+%xyz MicroPDF417 0239+-mdo QR code 1234567890ABCD-+()&*%^@#$!XYZ Data Matrix 123890abc-+=&*%^!mdo...
  • Page 96 Aztec Code 12345678901234567890 Han Xin Code SAMPLE...

  • Page 97: Maintenance

    5 Maintenance Cleaning the scan window is the only maintenance required. A dirty window may affect scanning accuracy. Do not allow any abrasive material to touch the window. Remove any dirt particles with a damp cloth. Wipe the window using a tissue moistened with water. Do not spray water or other cleaning liquids directly into the window.

  • Page 98: Ascii Table

    6 ASCII Table for keyboard wedge for RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ Notes: The 2nd and the 3rd columns above are used for keyboard wedge only. “ & ‘ < > Example: ASCII “A” = “41”.

  • Page 99: Barcode Representing Non-Printable Character

    7 Barcode representing non-printable character Notes to make the following barcode: 1. According to different barcode printing software, the method of printing following barcode is different. 2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input syntax”. Also refer to ASCII table. For example, if we wish to make “F1” barcode, select “Code128”, then select “CODE A”...

  • Page 100: Return Default Parameters

    8 Return default parameters Some parameters of handheld unit return to default setting WARNING: If you wish to return all parameters of the handheld unit, to default setting, please scan the barcode above. Some parameters of cradle return default value initialization WARNING: If you wish to return all parameters of the cradle, please scan the barcode above.

  • Page 101: Display Firmware Version

    9 Display firmware version Cradle firmware version display If you wish to display the firmware version of the cradle, please scan the barcode above. Handheld unit firmware version display If you wish to display the firmware version of the handheld unit, please scan the barcode above.

  • Page 102: Configuration Alphanumeric Entry Barcode

    10 Configuration alphanumeric entry barcode To finish parameter setting, please scan the bar code below.
