Widney Revo Installation Instructions

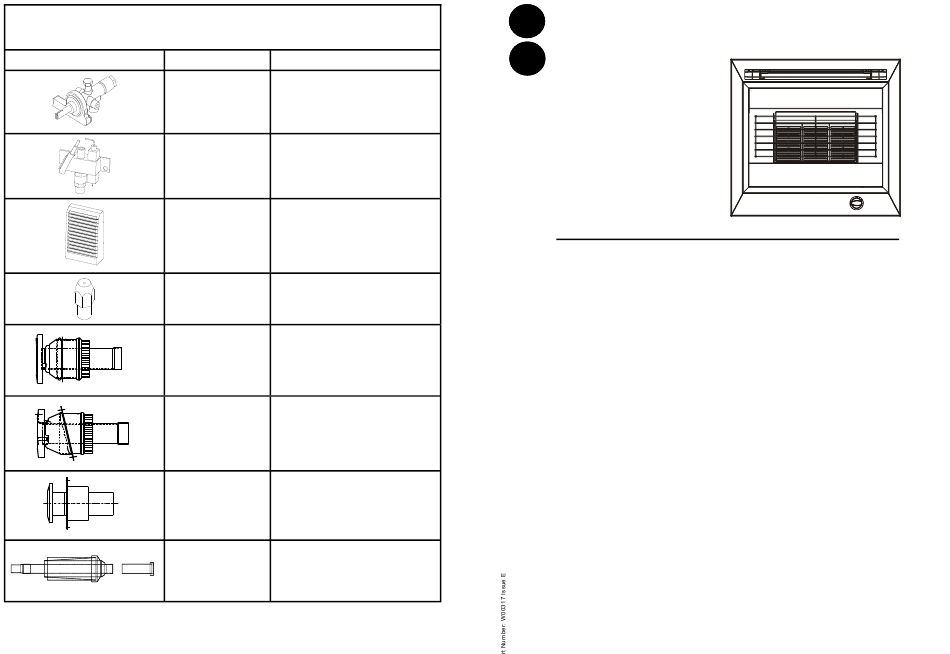

SHORT PARTS LIST
The illustrated short parts list includes part numbers.
When ordering quote gas fire name with part number & description.
Gas Train
PART NUMBER
W00018
W00166
W00020
W00170
RA002
W00028
W00167
W99901
W99801
W99600
W00213
8
DESCRIPTION
Control Valve with rotary ignition
(LPG)
Control Valve with rotary ignition
(NG)
Oxygen depletion device / pilot
assembly (LPG)
Oxygen depletion device / pilot
assembly (NG)
Radiant (pack of 3)
Burner Injector (LPG)
Burner Injector (NG)
Straight Terminal with Vent
Plain Finish.
For other finishes please contact
customer services
Angled Terminal with Vent.
Plain Finish.
For other finishes please contact
customer services
Straight Terminal Non Vented.
Plain Finish.
For other finishes please contact
customer services
Terminal with Vent
Pantile Roof
For other finishes please contact
customer services
WIDNEY
GB
IE
Revo
Gas Fire
All Model Variants
INSTALLATION & MAINTENANCE INSTRUCTIONS
READ THESE INSTRUCTIONS BEFORE INSTALLING OR SERVICING THE FIRE
IMPORTANT: Before installation ensure that the local distribution conditions (identified by
the type of gas and pressure) and the adjustment of the appliance are compatible.
Revo Natural gas version.
The appliance is suitable for use with G20 natural gas at a supply pressure of 20mbar for categories
I & I and additionally G25 at a supply pressure of 25mbar (pressure couple operates) in the case
2H 2E
of category I & I .The following lists all EC member states, which have a suitable gas supply for
2E+ 2L
each category designation:
I :- AT, CH, CZ, DK, ES, FI, GB, GR, IE, IT, NO, PT, SE, EE, LT, LV, SI, SK
2H
I :- DE, LU - I
2E
Revo LPG gas version.
The appliance is suitable for use with G30 Butane at a supply pressure of 28-30 mbar and G31
Propane at a supply pressure of 37 mbar for category I
G31 Propane at a supply pressure of 30mbar for I
The following lists all EC member states, which have a suitable gas supply for each category
I :- CZ, FI, NL, NO, SE, LT, LV, SI, SK
3B/P
I :- BE, CH, CZ, ES, FR, GB, IE, IT, PT, EE, CY
3+
It is a legal requirement that all gas appliances are installed by a competent person in accordance
with the Gas Safety Installation and Use Regulations 1994.
Failure to install the appliance as stated can lead to prosecution, it is in your interests
that the law is complied with.
Installation and Ventilation requirements shall be in accordance with these Installation Instructions,
BS EN 1949:2002, BS EN 721:1999, BS5871 and BS EN 1647:1999.
For the Republic of Ireland the installation must be carried out by a competent person and also conform to the relevant pa rts of :
The current edition of IS 813—Domestic Gas Installations
All relevant national and local rules in force
WIDNEY LEISURE LTD.
SAXON BUSINESS PARK, HANBURY ROAD,
STOKE PRIOR, BROMSGROVE,
WORCESTERSHIRE B60 4AD. ENGLAND
TELEPHONE: +44(0)1527 577800
Email: sales@widney-leisure.co.uk Web: www.widney-leisure.co.uk
