Summary of Contents for ForHope WHD151

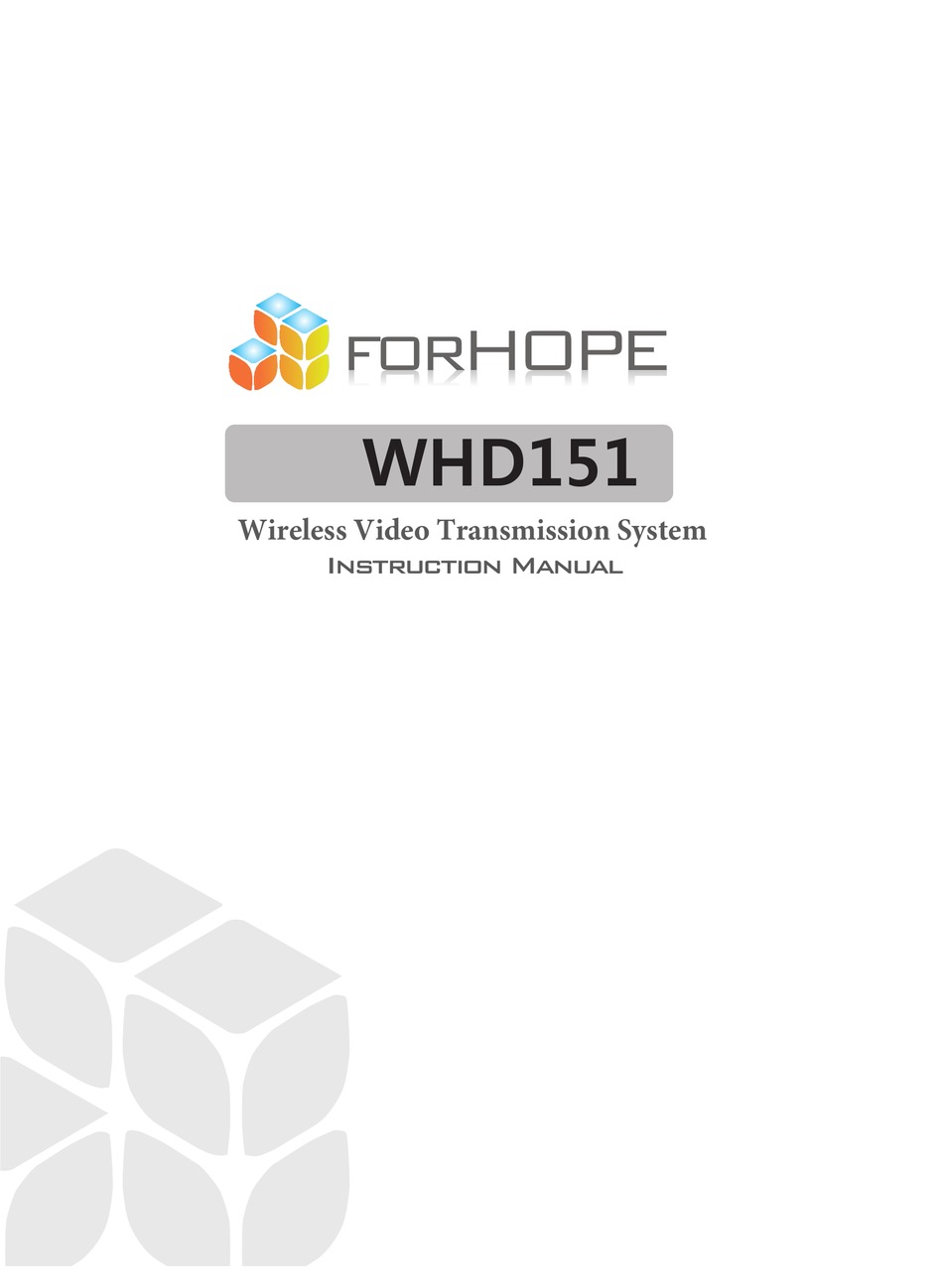

- Page 1 HOPE H O P E F O R WHD151 Wireless Video Transmission System Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents -------------------------------------- About the 150M Wireless Video Transmission System -------------------------------------------------------------------------- Features ------------------------------------------------------------------ Receiver Diagram ---------------------------------------------------------------- Transmitter Diagram --------------------------------------------------------------------------- Installation --------------------------------------------------------------------- Frequency Selection ------------------------------------------------------------------ Troubleshooting Guide -------------------------------------------------------------------------------- Warning ---------------------------------------------------------------------------- Specification -------------------------------------------------------------------------11 FCC Statement... -
Page 3: About The 150M Wireless Video Transmission System
Features . Uses 5GHz ISM frequency band, maximum 10 frequency channels selection, coexist with WIFI. . Highest resolution supports color depth of up to 30 bits(10 bits/color), . HDMI and SD/HD/3G SDI input and output, HDMI & SDI cross conversion is supported. -
Page 4: Receiver Diagram
Receiver Diagram LINK VIDEO RSSI HOPE X150 Receiver ： 6：Frequency display 1：Video input indicator 7：SDI output 2：Link status indicator 8：HDMI output 3：RSSI 9：Power on/off 4：Frequency confirm button 10：DC input 5：Frequency selection button... -
Page 5: Transmitter Diagram
Transmitter Diagram LINK VIDEO HOPE X150 ： Transmitter 1：Video input indicator 6：SDI input 2：Link status indicator 7：HDMI input 3：Frequency display 8：Power on/off 4：Frequency selection button 9：DC input 5：Frequency confirm button... -
Page 6: Installation
Installation External Battery External Battery The best reception angel Transmitter (transmitter and receiver face-to-face) Lemo Cable Receiver Lemo Cable VIDEO IN VIDEO OUT Cameraman Camera Monitor Director Ground... - Page 7 Installation 1） Ensure the video source output of the camera is OK, and the HD monitor is powered on and switched to connected video input port. 2） Ensure 2 TX antennas are installed. For optimal results set the dual antennas in the form of a “V” and maintain unobstructed line of sight between transmitter and receiver.
- Page 8 Installation 7） Before RX finished wireless link with TX, 5 RSSI indicators and VIDEO indicators are off; when wireless link is done, RSSI indicators will light first and indicate the signal strength. If the receiver detects wireless video normal internally from air inferface, VIDEO indicator will light. Before that, If SDI or HDMI video out port of the receiver has HD monitor connected, it will display an OSD of Link connecting……...
-
Page 9: Frequency Selection
Frequency Selection The wireless transmission system works in the 5.1-5.9GHz frequency band and can be flexibly configured to other licensed or ISM bands to accomm- odate different global regions. The front panel of the transmitter features a frequency selection button (see below illustration), which provides a max- imum of 4 workable frequency channels, and supports a maximum of 4 si- multaneous receiver units. -
Page 10: Troubleshooting Guide
Troubleshooting Guide Step 4 Step 1 Step 2 Step 3 If the transmission system can’t establish link at long distance but works If the problem is not If the problem is not If established link at The system well at shorter distance. solved after step 1. -
Page 11: Warning
Warning ● Do not expose this device to extreme hot, cold, dusty or humid environments. ● Do not scratch the device with sharp objects. ● Do not drop this device from high place, as this may cause hardware damage. ● This device is designed for non-waterproofing. Please do not allow any liquid to penetrate into the device. -
Page 12: Specification
Specification Transmitter Receiver SDI Input(BNC female); SDI Output(BNC female); Interface HDMI Input(Type A female); HDMI Output(Type A female); 2 Antenna port(RP-SMA male); DC input(4pin LEMO female) DC input(4pin LEMO female) Supply Voltage Range 7-36V DC 7-36V DC Transmission Range up to 300 meters/984 ft up to 300 meters/984 ft Power Consumption <... -
Page 13: Fcc Statement
FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
