EZ Shear 220 Quick Start Manual

Quick Start Guide
for EZ Shear Model #220
In the Box:
1. Power Assembly 5. Tail
1a. Safety Lock pin 6. Rails x 2
2. Handle Assembly 7. Hone Stone
3. Fence 8. Mounting Brackets x 4
4. Table 9. Hardware Kit
for EZ Shear Model #226
In the Box:
1. Power Assembly 5. Tail
1a. Safety Lock pin 6. Rails x 4
2. Handle Assembly 7. Hone Stone
3. Fence 8. Mounting Brackets x 4
4. Table 9. Hardware Kit

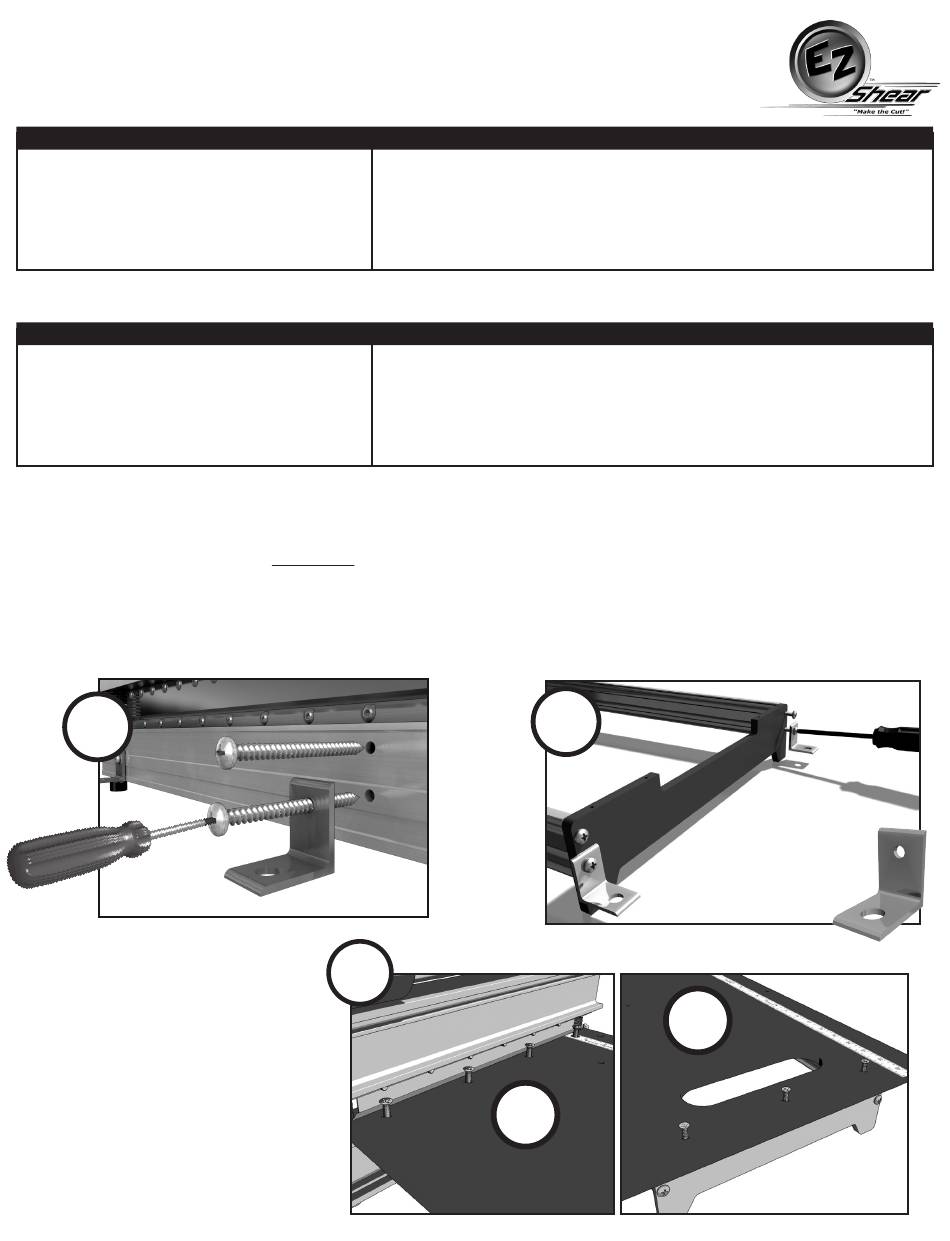

ASSEMBLING YOUR SHEAR
Tools needed: #2 & #3 Phillips head screwdrivers and a 1/2" (13mm) socket or wrench.
IMPORTANT! Start all screws BY HAND when assembling your shear. This will help avoid cross-threading.
1. ATTACH RAILS
Attach rails and mounting brackets to Power
Assembly base using Item A screws.
1
3. ATTACH TABLE
A. Attach table to base starting
with front, start screws by
hand, use Item C screws.
B. Attach back of table to tail
using Item D screws. Tighten
with #2 Phillips.
A. (4) #14 x 3" PH Phillips Self-Tapping Screws
B. (6) M6 x 25mm PH Phillips Machine Screws
C. (5) M6 x 16mm FH Phillips Machine Screws
The Hardware Kit is used in multiple models. Your Shear may not use all of the items listed.
A. (8) #14 x 3" PH Phillips Self-Tapping Screws
B. (8) M6 x 25mm PH Phillips Machine Screws
C. (6) M6 x 16mm FH Phillips Machine Screws
The Hardware Kit is used in multiple models. Your Shear may not use all of the items listed.
3
3A
In the Hardware Kit:
D. (4) #10 x 1 FH Phillips Self Tapping Screws
E. (2) M8 x 50mm Hex Bolts
F. (2) M6 Wing Nuts
In the Hardware Kit:
D. (4) #10 x 1 FH Phillips Self Tapping Screws
E. (2) M8 x 50mm Hex Bolts
2. ATTACH TAIL
Attach tail and mounting brackets to rails using
Item B screws. Make sure holes in tail are facing up.
2
3B
Tail
