Electric side-edge tuning unit for ski and snowboard

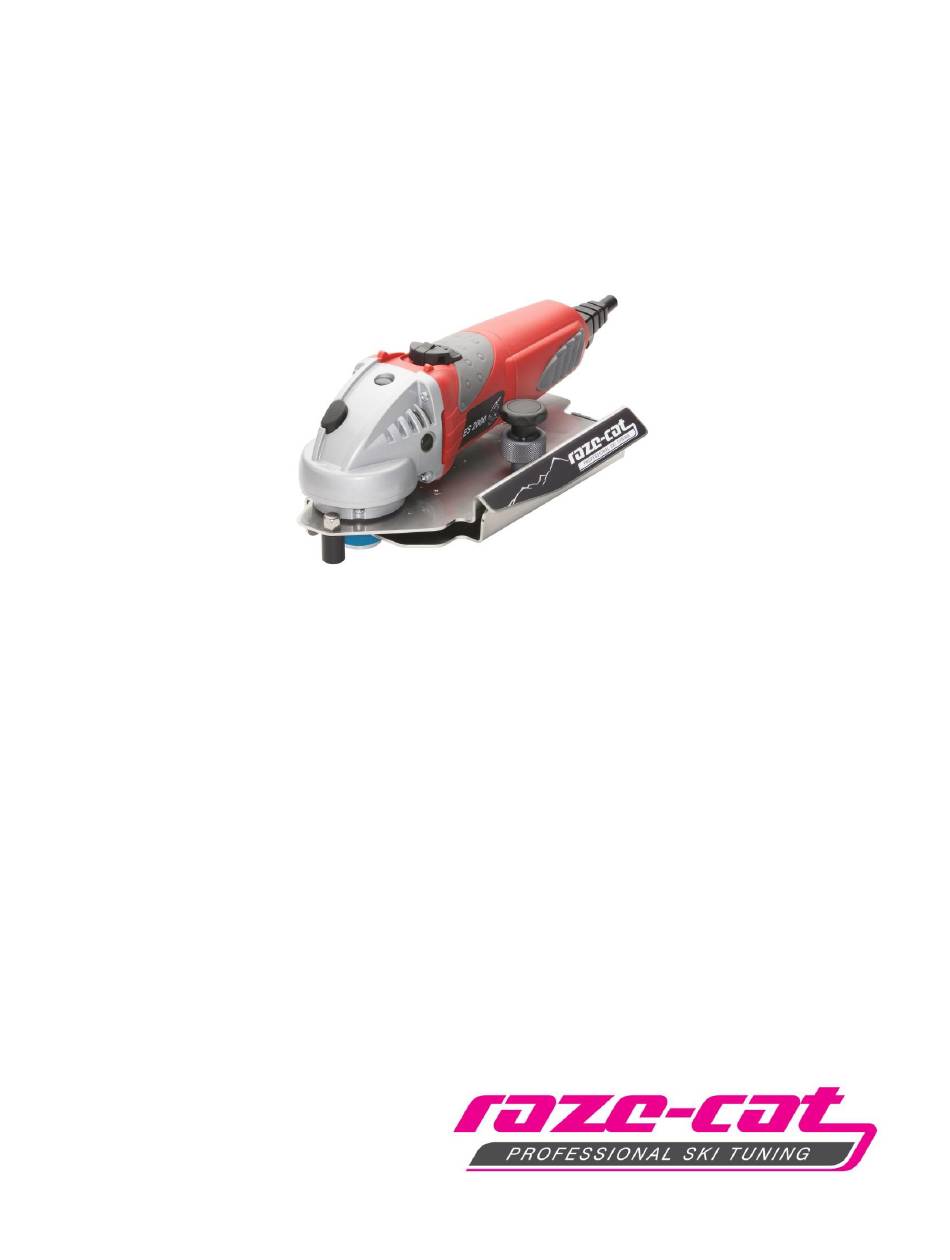

Congratulations! With the ES 2000 you have acquired a technically
sophisticated, high-quality ski edge-grinding tool that will allow you to apply the
perfect finishing touches to your ski and snowboard.
Ski fun and safety take on a new dimension. Take charge of your own servicing
and save a lot of money in the process.
•
Continuously adjustable grinding angle
•
Minimal abrasion
•
Easy to use
•
Can be used everywhere
•
Low operational cost
•
Great time savings
The ES 2000 takes care of professional edge tuning.
01.12.2017
User Manual
ES 2000
- 1 -
raze-cat
Advertisement
Table of Contents
Summary of Contents for Raze-Cat ES 2000
- Page 1 ES 2000 Electric side-edge tuning unit for ski and snowboard Congratulations! With the ES 2000 you have acquired a technically sophisticated, high-quality ski edge-grinding tool that will allow you to apply the perfect finishing touches to your ski and snowboard.
-
Page 2: Table Of Contents
Setting the grinding angle ................7 The edge tuning process ................8 Care and maintenance ................9 Warranty ..................... 9 Technical specifications ................10 Product warranty note ................10 Warranty card .................... 11 EC declaration of conformity ..............12 01.12.2017 - 2 - raze-cat... -
Page 3: Safety Instructions
Observe the following basic safety precautions to avoid electrocution, injury and fire hazard: • Do not immerse the ES 2000 in water, or subject it to rain or snow. • Do not use the device in a humid or wet environment. To increase your safety a GFCI (ground fault circuit interrupter) should be put in place. -
Page 4: Electrical Connection
While working, do not hold on to the unit around the cooling holes in order to avoid overheating its motor. Test the equipment on an old ski first to learn how to handle the ES 2000 and find its ideal settings. 01.12.2017... -
Page 5: Individual Parts Of The Unit - Description
ON/OFF switch Using the device The ES 2000 is intended for the tuning of the steel side edges of ski and snowboards. You are grinding at precisely the angle that has been set and will get the correct edge sharpness. Do not use the device on the base of ski or snowboards. -
Page 6: Attaching The Grinding Belt
Attaching the grinding belt Unplug the ES 2000 from the mains. In order to attach it to the device, the grinding belt is placed over the drive roller (2) (make sure that the arrows, which mark the directionality on the inside of the grinding belt, are pointing in the direction of movement!) Press the idler (3) against the spring’s pressure back into its recess until the... -
Page 7: Setting The Grinding Angle
Setting the grinding angle The ES 2000 is delivered with a factory pre-set grinding angle of 90°. Use this setting or choose another setting for grinding by unscrewing the lock nut (5) and turning the adjustment screw (4) until the scale (6) displays the desired angle. -
Page 8: The Edge Tuning Process
The unit’s own weight provides sufficient grinding pressure on the edge. Grinding direction Place the ES 2000 with the support plate (8) on the base in a way that allows the ES 2000 a steady progression along the ski/ snowboard base, and ensures that the grinding belt (7) touches the ski’s edge. -
Page 9: Care And Maintenance
ES 2000 manufacturer. Never pause on the edge with the ES 2000 while it is switched on! Care and maintenance Always keep the cooling holes of the unit clean. Pull the plug from the mains before carrying out any maintenance or cleaning work. -
Page 10: Technical Specifications
2. When the product has only been subject to normal usage and has not been used to excess. 3. When violent, improper or neglectful handling has not mechanically damaged the product. 4. When the following warranty card accompanies the complaint. 01.12.2017 - 10 - raze-cat... -
Page 11: Warranty Card
Warranty card Device name: ES 2000 Article number: _____________ Serial Number: _____________ Voltage 230V AC / 50Hz Built in: _____________ Check: _____________ Date of sale: _____________ Vendor stamp: 01.12.2017 - 11 - raze-cat... -
Page 12: Ec Declaration Of Conformity
EC Directive Machinery. Should this machine be modified in any way not sanctioned by us, this declaration becomes void. Machine ES 2000 Type: Serial Number.: See warranty card Built in: See warranty card...
