SPECIFICATIONS
Parameter
Door Gap
Between 3mm to 8mm only
Lock Monitor Output
Voltage free changeover switch contacts rated for 48vDC / 100mA
Holding Force
AS4145.2 - 1993: Passed S3 (611kg for 1 minute)
Capable of 1000kg if strike plate is fully supported
Release under Side Load
15kg max at bolt with motorised unlocking (3 wire control)
3kg max at bolt with Power-To-Lock (Fail Safe) unlocking and 2 wire control
Bolt Dimensions
Diameter = 11mm
Projection = 20.5mm
Power Supply (12-28VDC)
Regulation better than +/- 2%
1Amp Power supply required
Current Draw
Power to Lock holding current 130mA
Power to Open holding current 30mA
Initial locking and unlocking current draw higher
Misalignment tolerance
+/- 3.5mm
o
Operating Temperature
-10
C to +50
Durability
> 300,000 cycles
Certifi cations
2-hour fi re rating
5 Year Limited Warranty
ASSA ABLOY Australia guarantees for a period of 5 years in accordance with Trimec's Standard Warranty Conditions, against defects in
manufacture, workmanship or materials, provided that all electrical and mechanical installation requirements are adhered to as per this
datasheet. All third party and consequential claims are expressly excluded from this warranty.
warranty
Specifi cation
o
C at 90% RH
www.assaabloyasiapacifi c.com
DA0076, Issue 8: 13 May 2008
Page 4
ES8000 V-LOCK
WITH 30MM FACEPLATE
DRAWINGS NOT TO SCALE. INFORMATION IN THIS DATASHEET MAY BE CHANGED WITHOUT NOTICE.
IMPORTANT NOTE:
•
V-Lock must only be used in weather protected areas.
•
V-Lock can be installed vertically or horizontally.
•
For
vertical mounting, ensure V-Lock is oriented right side up as indicated by the unit label.
•
For
horizontal mounting, ensure V-Lock is only installed above the door.
•
For ideal operation, a
•
Ensure strike plate is fl ush-mounted or recessed, well-supported and securely fastened to increase overall holding force and
security of installation.

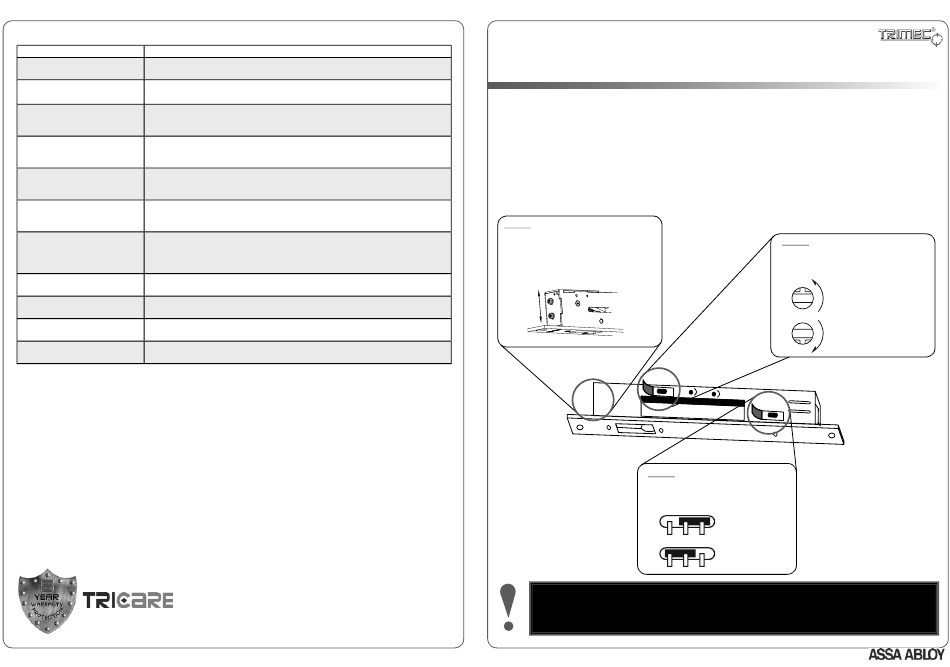

LOCK MODE CONFIGURATION
STEP 1
- Loosen both screws on side of lock
body.
- Slide screws in direction required until
stop at end of slot is reached.
- Hold in position and re-tighten screws.
PTL
PTO
ASSA ABLOY Australia
2/16 Atkinson Road
Taren Point 2229
•
If the lock had been installed or previously operated, the latch plate screw (STEP 3) may not be visible. To
NSW, Australia
change lock mode confi guration, contact your distributor for additional instructions.
•
Ensure all re-sealable stickers and screws are re-attached after confi guration to prevent ingress of dust.
An ASSA ABLOY Group brand
INSTALLATION INSTRUCTIONS
door gap of 3mm to 8mm is required between lock unit and strike plate.
STEP 3
- Change jumper position on Printed
Circuit Board beneath the red
re-sealable sticker as shown below:
Power-to-Open
(Fail Secure)
Power-to-Lock
(Fail Safe)
Page 1
STEP 2
- Rotate Latch Plate screw beneath
the red re-sealable sticker according to
orientation shown below:
Turn counter-clockwise
o
180
for Power-to-Open
(Fail Secure)
Turn clockwise 180 o for
Power-to-Lock (Fail Safe)
