Installation
Connect the Video input socket of monitor with reverse camera
M
V1/V2
The main function and characteristic
1. Full-function infrared remote controller
2. Support NTSC and PAL
3. Multi-language OSD.
4. 12V direct current external power, maximum electric current is 1.5A.
12.Two Video inputs.
Specifications
Product name: Car rear-view TFT-LCD color monitor
Number of dots: 480*234(RGB)
Active area: 127.2mm(W)*71.8mm(H)
Aspect ratio: 16: 9
Contrast Ratio: 400: 1
Response Time: B→W 50ms W→B 30ms
Video frequency: PAL/NTSC
Power supply:
Automobile storage battery (12V) automobile adapter
Accessories
Remote Controller, External Wire, User's Manual

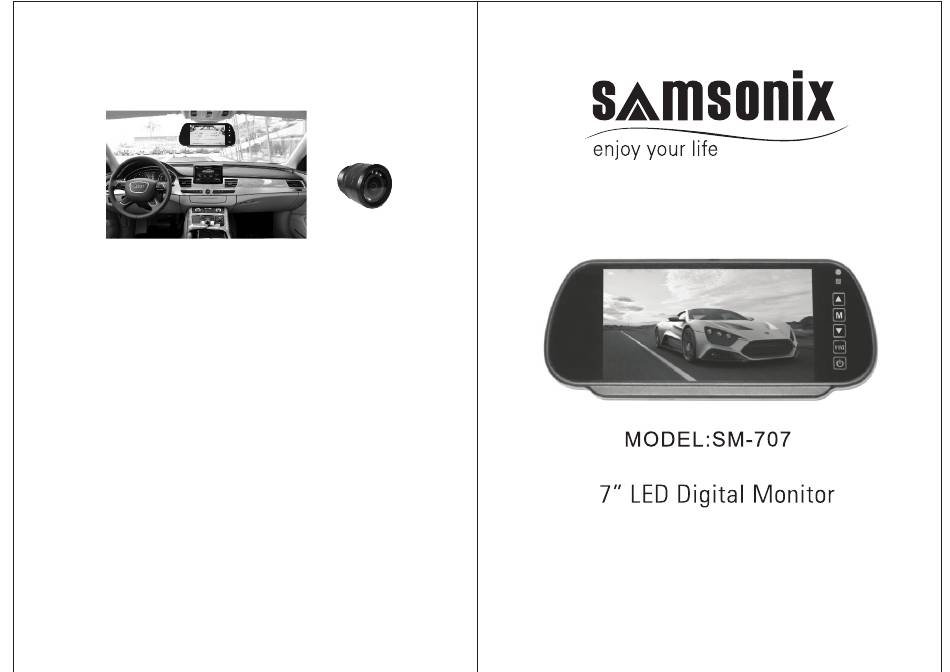

USER'S MANUAL
Note:
This monitor must be connecting with car camera
for safety reverse driving
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for SAMSONIX SM-707
- Page 1 Installation Connect the Video input socket of monitor with reverse camera V1/V2 USER'S MANUAL The main function and characteristic 1. Full-function infrared remote controller 2. Support NTSC and PAL 3. Multi-language OSD. 4. 12V direct current external power, maximum electric current is 1.5A. 12.Two Video inputs.
-
Page 2: Wire Connection
Exterior Description Thank you for using our product. We are pleased with the joy and convenience brought to you by our product. For better use and maintenance of the product, 1.Remote Window please read through this user manual before using and pay attention to the 2.UP followings: 3.Menu...
