Summary of Contents for Fullwell WDM PON EDFA

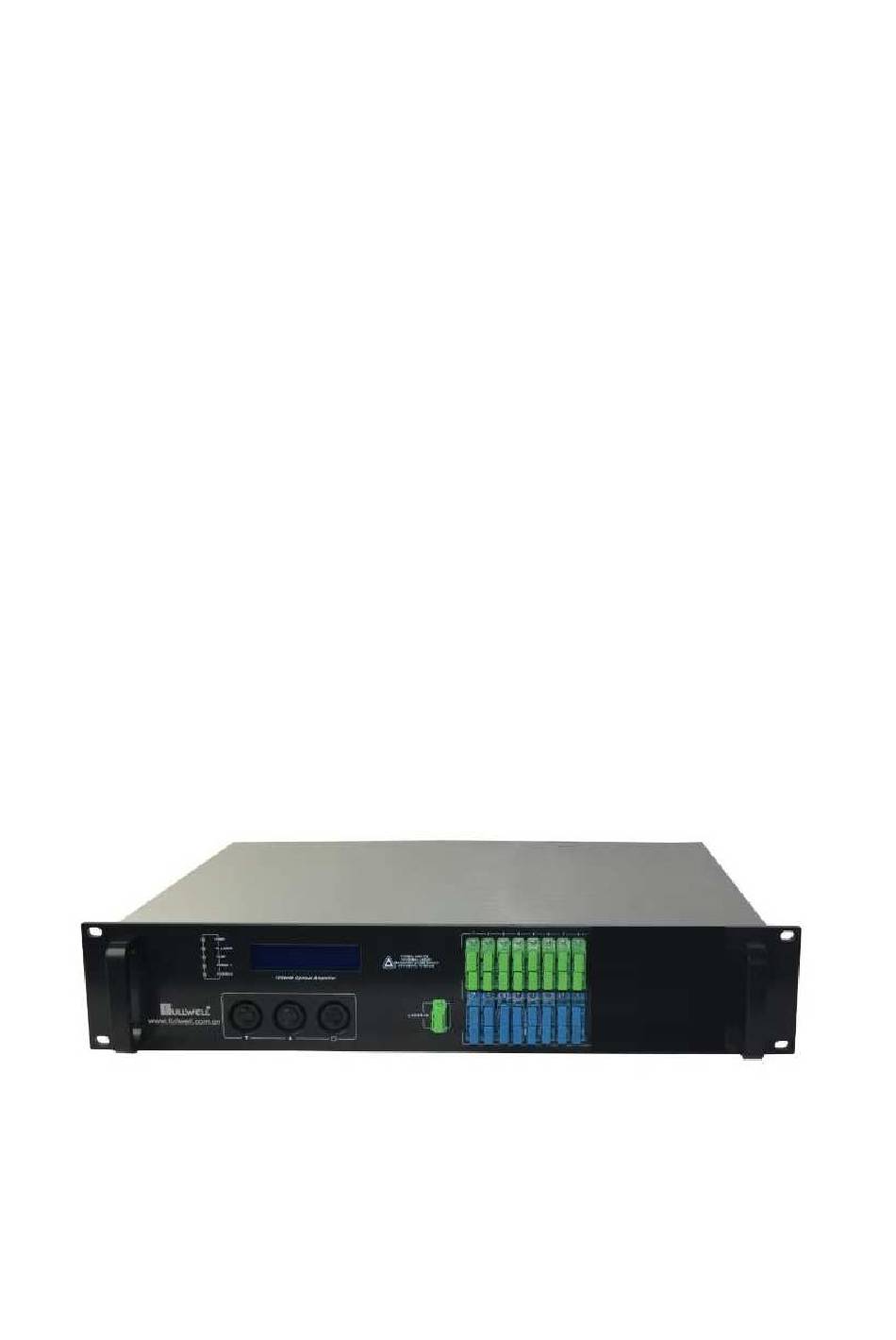

- Page 1 The User Guide 16 PONS de 22 dBm WDM PON EDFA...
-
Page 2: Table Of Contents
Content 1 Overview............................3 2 Product structure diagram........................ 4 3 The main working parameters......................5 4 Operation instruction........................6 5 Network management applicatons....................8 6 The notes about optical connection....................9 7 Other notes............................. 10 8 The scope of the product warranty………………………………………………………………10... -
Page 3: Overview
1 Overview 1.1 overview EDFA 16 pons Series WDM EDFA Combiner, High power Erbium Doped Fiber Amplifier, it is the core equipment of three of one net in optical transmitter system, input 8 ports PON+1port CATV and output 8 ports combined 1550/1490/1310nm. The combined optical output power: 15dBm. plug-in dual power supply, achieved the function of OLT and CATV 1550nm optical single combined and amplify, having high cost performance value.(Erbium Doped Fiber Amplifier)is a representative one in the optical amplifier.As the EDFA’s wavelength is 1550nm, it is in line with the low-loss band of fiber and its... -
Page 4: Product Structure Diagram
national standard and be compatible with the SCTE HMS standard, it enables network management to monitor capabilities. 1.2.5) The plug is draw-out type: switching power supply is draw-out type with aluminum profile structure, it helps greatly to cooling and replacement. Besides it can make dual supply cold-heat backup. -
Page 5: The Main Working Parameters
3 Modules main technical indexes Model Item Operating wavelength (nM) 1545~1555 Input optical power(dBm) -10~+10 Nominal input optical power (dBm) Noise figure (dB) 5.0~6.0 (+3 dBm,@1550nM) Gain flatness(dB) ＜±0.3 Stability of output optical power (dB) ＜±0.5 Polarization sensitivity (dB) ＜0.2 Polarization modal dispersion (ps) ＜0.5 Optical connector(IN/OUT) -
Page 6: Operation Instruction
Operating temperature (℃) 0~50 Size (mm) 88×482.6×387 WDM-PON with optical path PON port operating wavelength (nm) 1310/1490 PON port insertion loss (dB) ＜1 1550 port insertion loss (dB) ＜0.5 4 Operation instructions SYS .INIT IALI Z ATIO N WAI T..4.0) Boot show: Please put the plug in the outlet with AC220V, and the LCD panel will show... - Page 7 pump housing: Figure (3) page "1" and page "3". 4.5.2) fan status: Figure (1) page"4" . The fan, a total of three kinds of working state can be adopted .In the current page, click the" "key to change the working state, while in the "AUTO" state, when the device internal temperature is higher than 35 ℃, the SCM will automatically open the OU T OP .
-
Page 8: Network Management Applicatons
When the detected working current of thermoelectric cooling device is within-1500mA ~ +1500 mA, the LCD displays real-time current. When the current is positive, the TEC cool. 4.7) Power parameter query: Figure (1) page"8".In the current page click the button " "... -
Page 9: The Notes About Optical Connection
to achieve the network management in the cable broadband networks. Now the ESV6.0 network management system launched by our company is a new network management concepts based on the SNMP / TCP / IP protocol. 5.1) Interface of integrated work of the monitor server After plugging the optional transponder, the machine has the function of network management, just need to connect the RJ45 interface signals to the LAN, and connect to the main server from any of the LAN Ethernet port., then set up IP addresses, according to the method in 4.A etc. -
Page 10: Other Notes
connectors Cleaning Guide: 6.1.1) Fiber Optic jumper Removal the dust cap of fiber optic connector, pay attention to confirm the optical connector is a APC surface; The tips of cleaning fiber optic connector is to use a dedicated and dry cloth without ... - Page 11 The company's quality assurance system includes equipment testing and inspection of operational procedures to ensure the reliability of product quality. Prior to the product exporting from the Company, we adopt all possible measures to make the electrical, optical, mechanical and other indicators of products reached the standards promulgated.
