HDanywhere MHUB Quick Start Manual

QUICK START GUIDE

3x MHUB RECEIVERS + 6x MOUNTING WINGS
The steps below describe how to connect a single HDMI source to a display location for outputs 1-3 and enable remote control (IR) signals to be sent from that location back to your
MHUB chassis. If you want to setup IR control on output 4, please refer to the product manual. Repeat the steps below as necessary for each source or display.
Connect a HDMI source device (e.g Satellite/Cable TV, Apple TV, Blu-ray, DVD
1
etc) to one of the ports labelled "SOURCE INPUT" on the MHUB chassis using
a good quality HDMI cable.
Connect a CAT cable between one of the HDBaseT output ports (labelled A, B,
2
C) on the MHUB chassis, and the "HDBASET" port on the MHUB receiver.
1
HDMI CABLE
CAT6 CABLE
INFRARED (IR) CABLE
NETWORK CABLE
POWER
CAT6 R ES OLU T I ON / D I STA N C E G U I DE
0m 10m
0ft 32ft
FULL MA N UAL O N S U PP O RT.HD ANY W H E R E . CO M

IN THE BOX

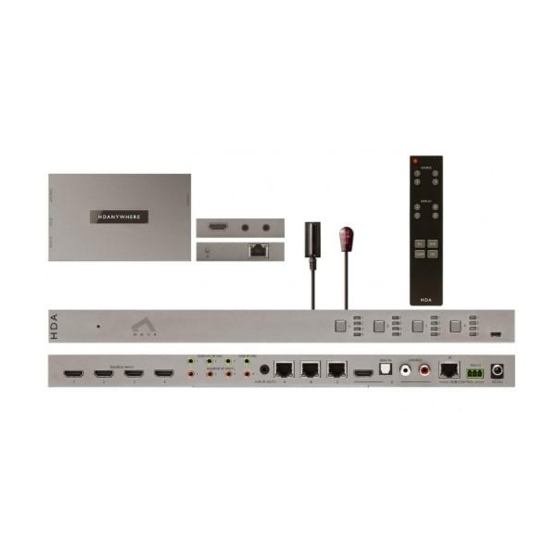

1x MHUB 4K (4X3+1) CHASSIS
4
6
1 1 1 1
2 2 2 2
A B C D
3 3 3 3
4 4 4 4
2
20m 30m
65ft 98ft
INFRARED (IR) CABLES 1x IEC POWER CABLE + 24V PSU
1 1
2 2
A B
3 3
4 4
Connect a HDMI cable between the port labelled "HDMI OUT" on the MHUB
3
receiver and a HDMI port on your display. Ensure that your display is switched
to the correct input. Note: MHUB receivers do not need any power cables to
work, power is delivered from the MHUB chassis. Check the white LED light on
the MHUB receiver is lit, this indicates a connection with the MHUB chassis.
Check that you are receiving a picture on the connected display.
To control your HDMI source from your display location, connect an IR TX to the
4
"SOURCE IR (OUT)" port on the MHUB chassis, that matches the "SOURCE
INPUT" port number for the source you want to control. Connect an IR RX to the
"IR (IN)" port on the MHUB receiver.
5 Test the IR control is working by using the source device remote pointed
towards the IR receiver at your display location.
Connect the "HUB CONTROL IP" port to your router via an ethernet cable. You
6
can then download our uControl app which is available for iOS and Android. The
uControl App will also provide your MHUB IP address.
40m 50m
131ft 164ft
INPUTS
1 2
3 4
OUTPUTS
A B
C D
menu
ALL EDID
CLEAR OK
1x REMOTE CONTROL
1 1
2 2
C D
3 3
4 4
MOUNTING BRACKETS
3
5
60m 70m
197ft 230ft
2x CHASSIS
HD UHD
