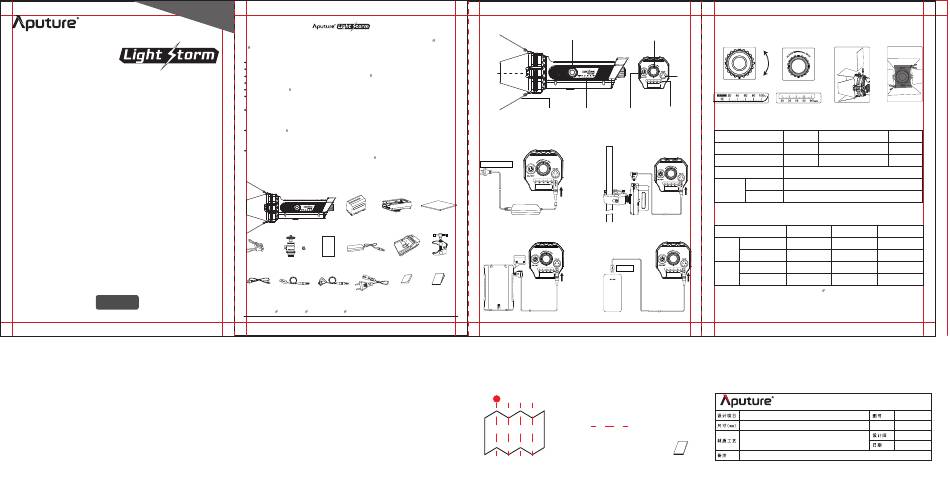

Aputure Light Storm LS-mini20 d Product Manual

Foreword

Thank you for purchasing
LS-mini20 d LED light is a COB design of Aputure Light Storm series. It features TLCI 97 and active fan cooling
system with real time feedback of temperature circuit. With Ultra silent Fan, multi-power supply, o ers you
di erent lighting control requirements. Easily done for your broadcast level photography.

Instructions

Please read and follow these instructions and keep well this manual for further use.
Please do not block the ventilation grille, and do not face the light directly when the light is on.
Do not place the LED light device near liquids, alcohol or other ammable objects, avoid light device damage.
Keep the device out of reach of children.
To reduce the risk of re or electric shock, do not use the product near water.
Please have the product checked by an authorized service or agent if your product has a problem.
The malfunctions caused by your no allowed disassembling are not under the warranty.
Use of original Aputure cable accessories is recommended. Please note that this warranty does not apply to
repairs arising out of the malfunction of non-original Aputure accessories, although you may request such
repairs on a chargeable basis.
The product is certi cated by RoHS and CE. Please operate the product in full compliance with the operation
standards. Please note that this warranty does not apply to repairs arising from malfunction, although you
may request such repairs on a chargeable basis.
The instructions and information in this manual are based on thorough, controlled company testing
procedures. Further notice will not be given if the design or speci cations change.
Check list

Package includes the following items:

LS-mini20 d
Clamp
(2 pcs)
Product Manual
Power cable
(1 pc)
English
* The Plug is desgined to charge the Battery with the Charger.
* The plug may di er in shape for di erent countries and di erent geographical regions.
LS-mini20 d.
d
NP-F970 Battery Battery adpater 5500K Filter
Light (1 pc) (7200mAh)(1 pc) (1 pc) (1 pc)
+
Universal cold 3200K Filter AC-DC adapter Charger Crab clamp
shoe mount (1 pc) （5 pcs） (1 pc) (1 pc) (1 pc)
USB Type-A to XLR D-Tap to XLR Warranty card Product manual
(1 pc) (1 pc) Plug (1 pc) (1 pc) (1 pc)
Detailed product manual for Light Storm can be found on the movie solution page on www.aputure.com .
-1-
折页方式：

Nomenclature

Light
Dimmer Wheel Flood & Spot wheel
COB light
d
Barndoor Brightness Display Power Switch Degree Display

Multi-power supply

1) Powered by adapter 2) Powered by the battery adapter
AC 100V-240V
* DC 15V / 4A * NP- F960 / NP- F970
3) Powered by the V-Mount/Anton Bauer battery 4) Powered by the power bank (5V-2A)
D-TAP 1
5V-2A
* Please use the general power bank with an
output of 2.0 A or above, 10000mAH capacity
is recommended when using.
-2-
1
为折线(不印刷)
折页成型（英文在正面）：

Operations

1. Dimmer adjustment 2. Degree adjustment 3. 5500k Filter install 4. 3200K Filter install
and display and display
max
Socket
min

Specifications

Operation Current 4A Power Consumption（Max）
Power Supply DC 5-18V Cooling Mode
TLCI ≥97 CRI
Color Temperature 7500K±300K
Light 231*122*97mm
Sizes
(L*W*H)
Battery Adapter 86.5*59*37.8mm

Brightness (average)

Distance 0.5m 1m
Footcandles 3717 929
Spot
LUX 40000 10000
Footcandles 632 167
Flood
LUX 6800 1800
* The data is average brigtness, it will shift slightly within di erent lights.

Trademarks

Anton bauer is a trademark or registered trademark of Anton bauer in the US and other countries.
-3-
