Control 4 MechoShade MechoRF Z1C4 WIIU WH AS Installation Manual

WARNINGS AND SAFETY CONSIDERATIONS
To be installed and/or used in accordance with all
appropriate national and local electrical codes and
regulations
All wiring must be accomplished by a trained,
professional installer. Any power connections or
wiring to the window covering should be
accomplished by a licensed electrical contractor
CAUTION: Read all instructions before installing. If
you are unsure of any part, stop and contact a
qualified installer.
This product is a low voltage product. DO NOT
CONNECT TO HIGH VOLTAGE POWER/AC MAIN
VOLTAGE (i.e. 115VAC or 220VAC) AND/OR ALLOW
SUCH VOLTAGE TO TOUCH ANY CONNECTION
POINT ON THIS PRODUCT.
Improper wiring can result in personal injury.
This product must be operated in accordance with
the proper operating voltage and current limits as
indicated in the Specification section of this
document.
This product is intended for indoor use only. Do not
install this product outdoors or allow exposure to rain
and/or moisture.
When servicing this product ensure that power is
removed prior to connecting any diagnostic tools or
servicing the internal electronics.
Improper use or installation of this product can result
in damage to the product and/or other property.
Disassembly or misuse of the product in any way by
unauthorized personnel will void any and all
warranties.
When crimping the modular cable or CAT5/6 cable
care must be taken to follow crimping instructions to
ensure a reliable connection. Pre-crimped modular
telephone cables will not work!
Low voltage cables should not be routed near power
lines and/or other electrical devices that will expose
the system to excessive electrical noise.
Low voltage wire runs should not exceed 400' overall
in general.
FOR FURTHER INFORMATION
MechoShade Systems, Inc.
th
42-03 35 St.
Long Island City, NY 11101
Ph: 718-729-2020
Fx: 718-729-2941
web – www.mechoshade.com
email – info@mechoshade.com
INSTALLATION PROCEDURE:
The Control4 (C4) 2-Zone Wireless Interface Module is designed to
support the control of both drapery and rollershade products. Please
find the instructions corresponding to the models to be controlled.
WhisperTrac Draperies
1. Install the WhisperTrac Drapery per the manufacturer's
instructions. Configure and setup the WhisperTrac motor
including the limits, speed of operation and any intermediate
setpoints using standard WhisperTrac tools. Test and
confirm that it operates properly. Refer to WhisperTrac
Manual for proper procedures.
2. Disconnect power to the WhisperTrac Motor.
3. Attach an RJ45 patch cord cable (dongle) from any one of
the two ports on the bottom of the WhisperTrac Motor to Port
A on the Wireless Interface Module. NOTE: PORT A
INCLUDES THE POWER CONNECTION FOR THE
MODULE AND MUST ALWAYS HAVE A CONNECTION
SUPPLIED TO IT WITH 9-30VDC FOR OPERATION.
4. If a second window covering will be controlled through this
same Wireless Interface Module please repeat steps 1 to 3
for that window covering and connect the RJ45 dongle to
Port B on the Interface Module
If the installer and the programmer for this Module is one in the
same, then we recommend proceeding with the commissioning of
the Module before proceeding any further because of the
convenience afforded by access to the Module prior to mounting.
Otherwise proceed to Step 5.

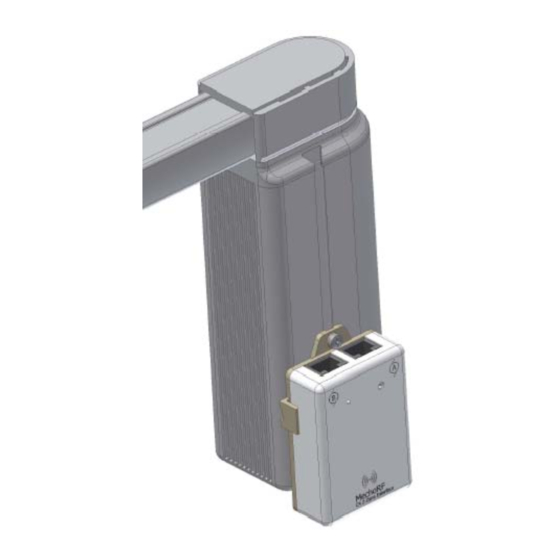

5. If the Wireless Interface Module is attaching to the motor
then slide the Module into the slot on the window side of the
WhisperTrac Motor with the connectors pointing towards the
ceiling. Permit the bracket to extend approximately 1" below
the WhisperTrac Motor in order to optimize reception for the
antenna.
6. If required to prevent the Wireless Interface Module from
sliding off the WhisperTrac Motor then secure the module to
the Motor housing by tightening the screw on the mounting
flange nearest the Module's connectors. DO NOT
OVERTIGHTEN
7. Route and secure the patch cords such that there is no
interference between the cords and the operation of the
drapery.
8. Re-connect the power supply cord to the WhisperTrac Motor
and any other second window covering.
9. Test operation of the drapery using the pushbutton on the
front of the Wireless Interface Module. A momentary button
press on the pushbutton will toggle the position of both
window coverings attached to the Interface Module. If a
window covering is already in motion a button press will
cause the window covering to stop. If no movement is
observed then try pushing the button a second time
momentarily in order to toggle the direction command of the
Interface Module so that it is synchronized with the drapery
position.
10. The WhisperTrak Motor and drapery is now ready for
operation. Once the Module is commissioned it will be
capable of being operated over the Control4 Network.
Wall Mount for Rollershades and Drapery Applications
For Mounting to drywall please follow steps 1 thru 5 above and
then using a pair of cutters remove the Alignment Guides on the
back of the unit. Install per the drawing below. Finally follow steps
9 and 10 to test the operation of the window covering by the
Interface Module and ultimately through the Control4 Network.
IS-MechoRF-Z1C4-07
