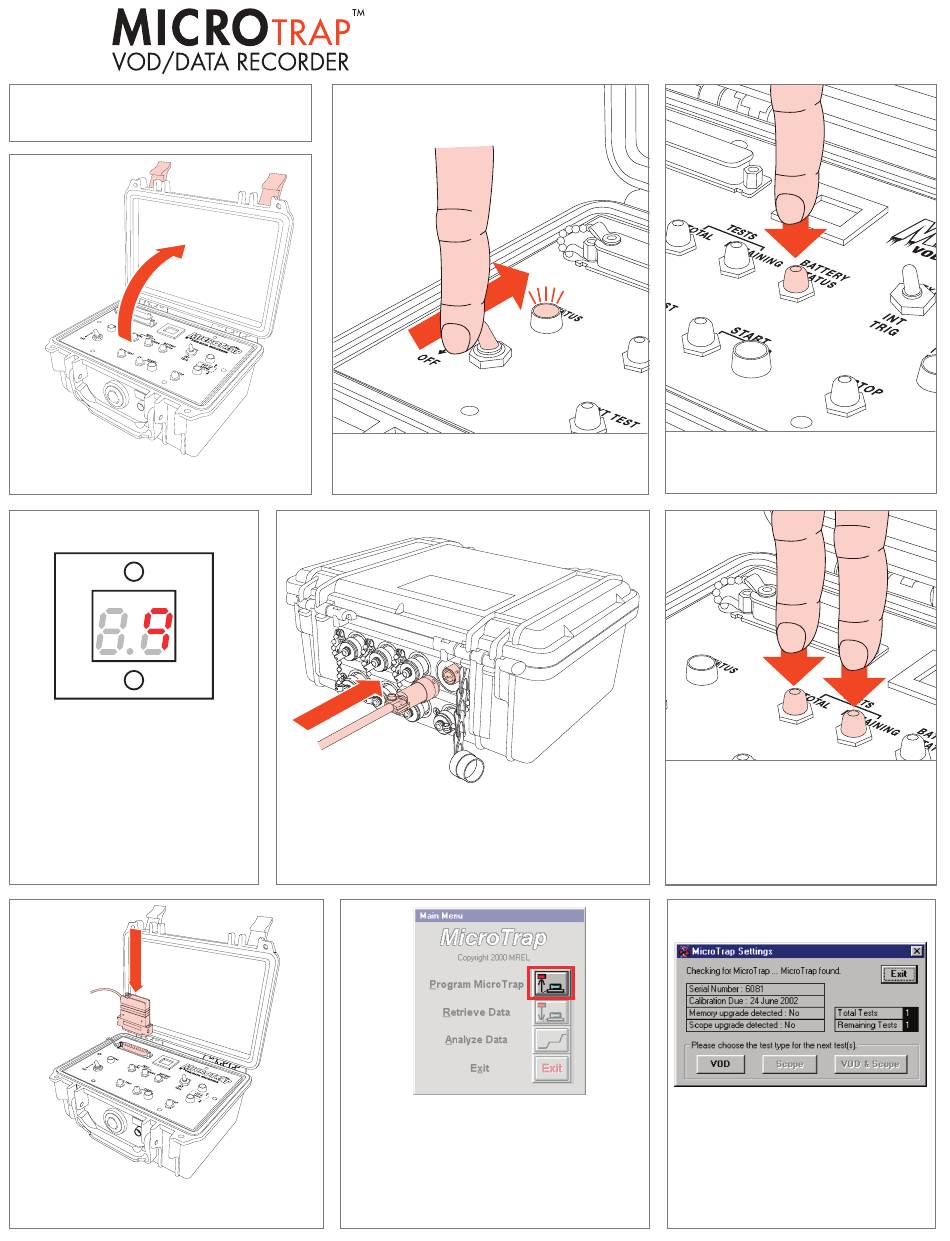

MREL MicroTrap Quick Start Manual

1
INSTALL THE MICROTRAP™ SOFTWARE
ON THE COMPUTER.
2
A
B
A: UNLOCK THE LATCHES.
B: OPEN THE MICROTRAP™.
5
THE LED WILL LIGHT UP INDICATING
THE LEVEL OF BATTERY AVAILABLE.
IN THE ABOVE EXAMPLE, THE
MICROTRAP™ IS AT 90%. IF THE
BATTERY LEVEL IS TOO LOW, PLEASE
SEE STEP 6 TO RECHARGE
MICROTRAP™, ELSE GO TO STEP 7.
8
PLUG THE COMMUNICATIONS CABLE INTO THE
MICROTRAP USB COM PORT.
3
A
TURN ON THE MICROTRAP™ BY TOGGLING
THE ON / OFF SWITCH AS SHOWN. THE
STATUS LIGHT WILL BEGIN TO FLASH.
6
PLUG THE BATTERY CHARGER INTO THE DC IN/OUT
CONNECTOR ON THE MICROTRAP™. PLUG THE OTHER
END OF THE BATTERY CHARGER INTO AC MAINS.
9
PLUG THE OTHER END OF THE
COMMUNICATIONS CABLE INTO THE
COMPUTER WITH THE MICROTRAP™
SOFTWARE INSTALLED. LOAD UP THE
MICROTRAP™ SOFTWARE AND CLICK THE
HIGHLIGHTED BUTTON ABOVE TO PROGRAM
THE MICROTRAP™.
QUICK START GUIDE
PRESS THE BATTERY STATUS BUTTON TO
CHECK THE BATTERY LEVEL OF THE
MICROTRAP™.
7
A:
VIEW THE TOTAL TESTS AVAILABLE ON
THE MICROTRAP™.
B:
TO VIEW THE REMAINING TESTS
AVAILABLE ON THE MICROTRAP™.
10
WHEN THE ABOVE WINDOW APPEARS
CHOOSE THE TYPE OF TEST YOU WISH
TO PERFORM. IN THIS EXAMPLE, WE
CHOOSE VOD.
A
PRESS THE TOTAL TESTS BUTTON TO
PRESS THE REMAINING TESTS BUTTON
4
B
